HASL Lead Free 1.4 Meter Long MCPCB 1.0mm Aluminum Core
| Price: |
US $ 0.42/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-819-V8.19 |
| Aluminum Core: |
1W / Dielectric Material |
| Minimum Trace And Space: |
62.4 Mil /- Mil |
| Minimum / Maximum Holes: |
4.2 / 4.2 mm |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
2.0mm ±0.20 |
| Surface Finish: |
Hot Air Soldering |
| Solder Mask Color: |
White |
| Colour Of Component Legend: |
Black |
| Via: |
Non Plated Throught Hole (Npth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 5052 |
Product Description
1.1 General description

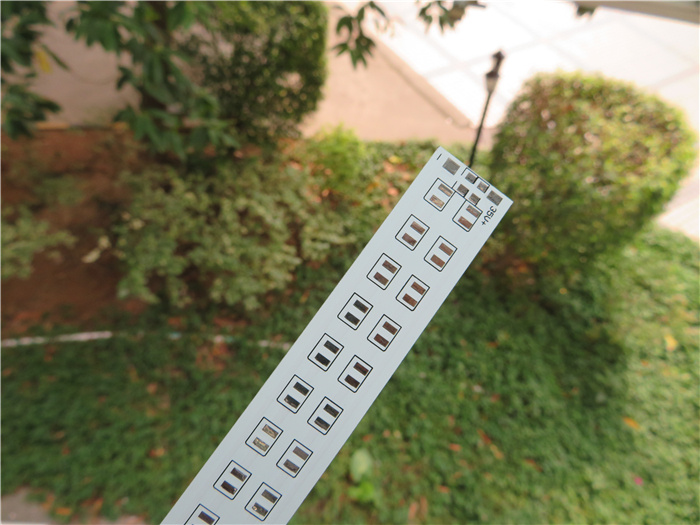

This is a type of LED strip PCB built on aluminum core with 1W/MK dielectric for the application
of power LED lighting. It's 1.4 meter long with 1.0mm thick, black silkscreen over white solder
mask and HASL on pads. The base material is used from ILM brand, entire board supplying 1
PCB up. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels
are packed for shipment.
1.2 Features and benifits
a. Replace the fragile ceramic substrate and obtain a better mechanical durability;
b. Prolong the service life of the product;
c. Reduce the cost of hardware and assembly;
d. Reduce the operating temperature of the equipment;
e. Diversified shipping method;
f. Wide range of PCB supplying;
g. UL recognized and RoHS Directive-compliant;
h. Prototype PCB capability;
i. Volume Production capability.
1.3 Application
Power amplifier, Motor controller, Radiator, Fluorescent lamp.
1.4 Parameter and data sheet| PCB SIZE | 1420 x 16mm = 1PCS |
| BOARD TYPE | Aluminum PCB, IMS PCB |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material |
| Aluminum 5052 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 62.4 mil /- mil |
| Minimum / Maximum Holes: | 4.2 mm / 4.2 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 21 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.0 mm ±0.10 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
