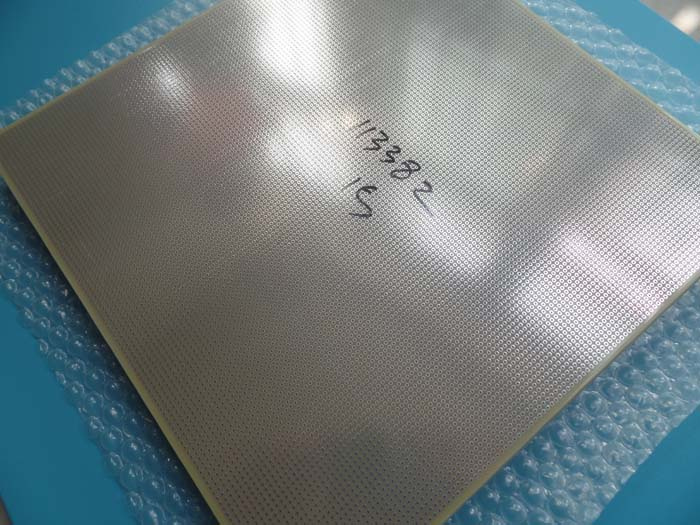

HASL PCB Circuit 2 Layer Without Solder Mask and Silkscreen

Name: HASL PCB Circuit 2 Layer Without Solder Mask and Silkscreen
Brand: all-electronics-online.com
SKU: 823832755
Availability: InStock
Rating: 4.9 (28 reviews)

Price:	US $ 1.7/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-269-V2.69
Board Thickness:	1.47-1.52mm
Outer Copper Foil:	44.24 Um
Warp-Twist:	0.67%(Max)
Surface Treament:	HASL
Visual Inspection:	Ipc-a-600h&Ipc-6012b
Min Line Width (Mil):	6.2 Mil
Min Line Spacing (Mil):	5.4 Mil
Forming:	V-Cut
Solderability Test:	245ºC 5s 1 Cycle
Electrical Test:	100% PCB Passed
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

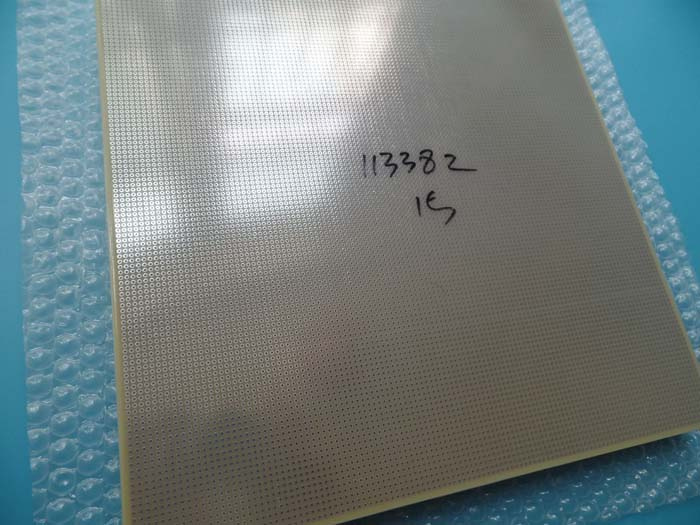

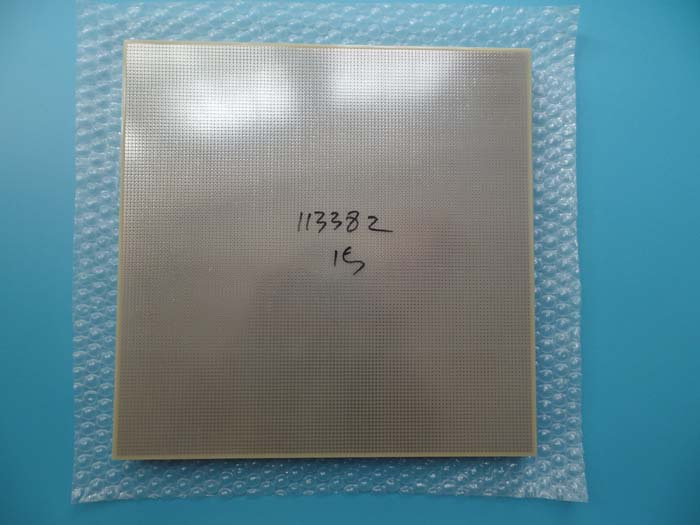

Without Solder Mask and Silkscreen High Tg170 FR-4 Plated through holes PCB HASL with 1.47-1.52mm Thick in Servo Motor

Commodity Introduction
This is a type of FR-4 PCB for the application of Servo Motor. It's a double sided layer board at 1.47-1.52mm thick. The base laminate is from ITEQ. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each
10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.60±10%mm	1.47-1.52mm
	Outer copper foil	>=35 um	44.24um
	Inner copper foil	NA	OK
	Warp-twist	<= 0.75%	0.67%(max)
Legend	Type	NA	NA
	Color	NA	NA
	Location	NA	NA
Marking	Co.logo	NA	NA
	UL.logo	NA	NA
	Date code	NA	NA
	Marking form	NA	OK
	Location	NA	NA
Min line width (mil)		6	6.2
Min line spacing (mil)		5.2	5.4
Min ring width (mil)		NA	NA
Solder Mask	Type	NA	NA
	Color	NA	NA
	Thickness	NA	NA
	Pencil Test	NA	NA
	SOLVENT TEST	NA	NA
	TAPE TEST	NA	NA
Surface Treament	HASL		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012B	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	210.72±0.15	210.66	210.64	210.64	210.67
2	212.42±0.15	212.45	212.36	212.32	212.43

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.838±0.076	Y	0.850	0.825	0.875	0.850
2	0.914±0.076	Y	0.925	0.900	0.950	0.925
3	0.965±0.076	Y	0.975	0.950	1.000	0.975
4	1.016±0.076	Y	1.025	1.000	1.050	1.025
5	1.219±0.076	Y	1.125	1.100	1.150	1.125
6	1.320±0.076	Y	1.320	1.295	1.345	1.320
7	1.400±0.076	Y	1.400	1.375	1.425	1.400
8	1.600±0.076	Y	1.600	1.575	1.625	1.600
9	1.700±0.076	Y	1.700	1.675	1.725	1.700
10	2.032±0.076	Y	2.050	2.025	2.075	2.050
11	2.540±0.076	Y	2.550	2.525	2.575	2.550
12	3.000±0.076	Y	3.000	2.975	3.025	3.000
13	3.500±0.05	N	3.500	3.475	3.525	3.500

Learn PCB and Buy PCB

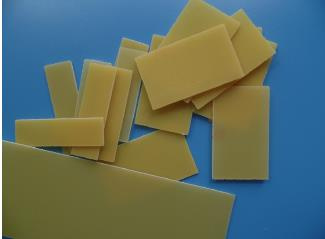

Laminates --- FR-4 brief

FR-4 (or FR4) is a kind of material grade designation, which means that the resin material is flame resistant
(self-extinguishing). FR-4 is a kind of material specifications, not a material name, but a material grade. "FR" stands for flame retardant, and denotes that safety of flammability of FR-4 is in compliance with the standard UL94V-0.

FR-4 glass epoxy is a popular and versatile high-pressure thermoset plastic laminate with good strength to
weight ratios. With near zero water absorption, FR-4 is most commonly used as an electrical insulator posse
-ssing considerable mechanical strength. The material is also known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
