HASL PCB Heavy Copper 3 Oz Circuit Board 2 Layer
| Price: |
US $ 0.78/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-380-V3.80 |
| Board Material: |
Fr-4 |
| Board Thick: |
1.57-1.62mm |
| Copper Thick: |
3 Oz |
| Surface Finish: |
HASL Lead Free |
| Solder Mask Color: |
Blue |
| Legend Color: |
White |
| Min Line Width (Mil): |
8.1 Mil |
| Min Line Spacing (Mil): |
7.6mm Mil |
| Test: |
Electronic Test |
| Board Plating: |
0.0030" |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Bicheng |
Product Description

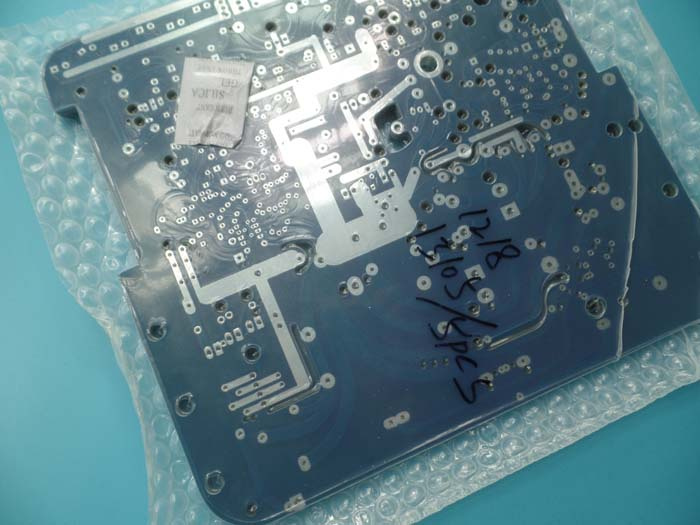

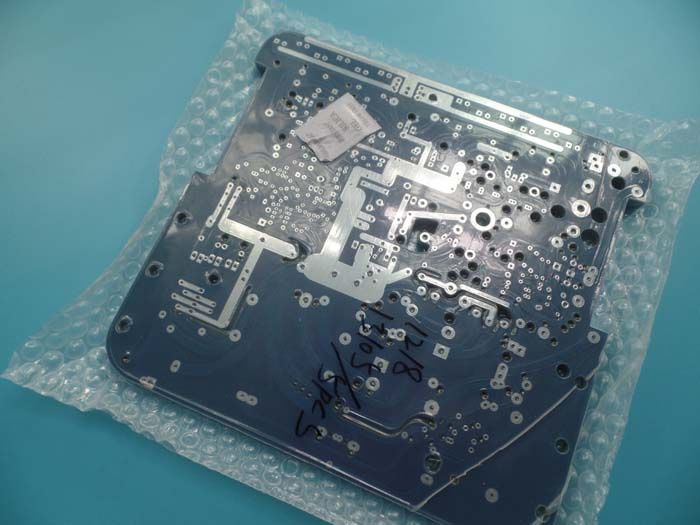

Heavy copper 3oz Circuit Board 2layer Blue soldermask PCB with HASL Lead Free
Commodity IntroductionThis is a type of FR-4 PCB for the application of switch. It's a 2 layer board at 1.57-1.62mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 | FR-4 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.60±10%mm | 1.57-1.62mm |
| Outer copper foil | >=105 um | 113.91um |
| Inner copper foil | / | / |
| Warp-twist | <= 0.75% | 0.34% |
| Legend | Type | IJR-4000 MW300 | IJR-4000 MW300 |
| Color | White | White |
| Location | CS | CS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | WWYY |
| Marking form | NA | OK |
| Location | CS | CS |
| Min line width (mil) | 7.87 | 8.1 |
| Min line spacing (mil) | 7.8 | 7.6 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | R-500 BL | R-500 BL |
| Color | Blue | Blue |
| Thickness | >=10 um | 14 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | Lead free HASL | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
