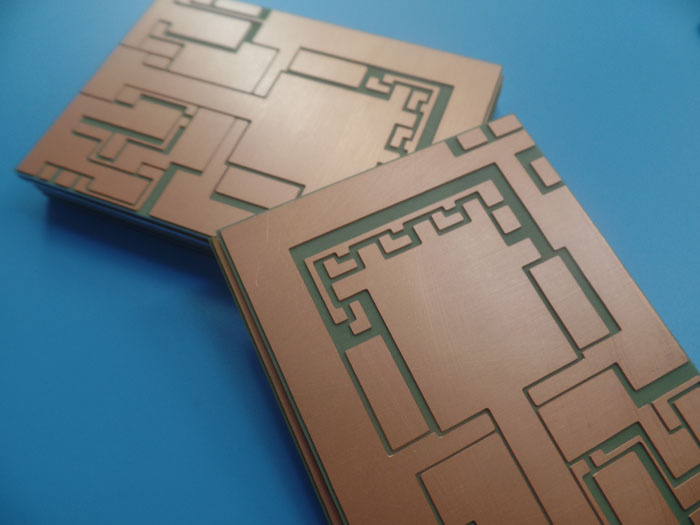

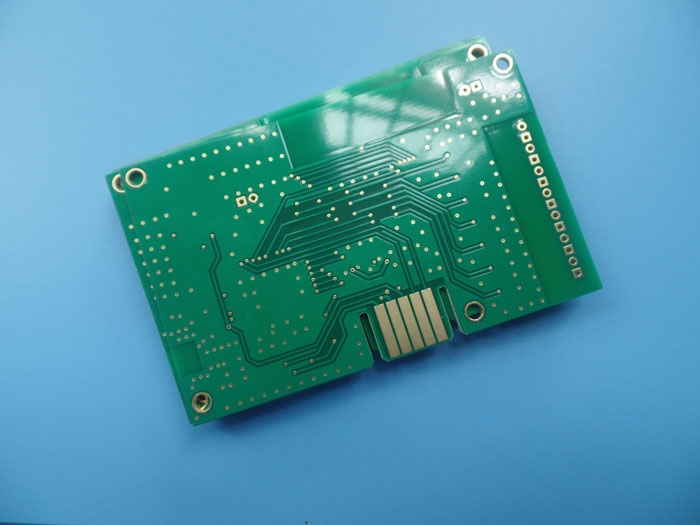

HASL PCB RO4003c 20mil (0.508mm) Plugged Vias

Name: HASL PCB RO4003c 20mil (0.508mm) Plugged Vias
Brand: all-electronics-online.com
SKU: 831445005
Availability: InStock
Rating: 4.8 (126 reviews)

Price:	US $ 1.78/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-468.1757-V1.1
Lboard Thickness:	1.6mm +/-0.16
Tg Value Of Board Material:	170ºC
Surface Finish:	Immersion Gold
Solder Mask Color:	Grenn
Pth Cu Thickness:	≥25 Um (See Hole Wall Details)
Mininum Trace (Mil):	10 Mil
Minimum Gap(Mil):	5 Mil
Test:	100% Electrical Test Prior Shipment
Via:	Plated Through Hole(Pth)
Flamibility Rating:	UL 94-V0 Approval Min
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	RO4350b
Material:	Hydrocarbon/Woven Glass
Insulation Materials:	Glass Reinforced Hydrocarbon

Product Description

Company Profile
Bicheng Enterprise Limited serves global clients from Shenzhen, China since 2003.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified

High Frequency PCB

Flexible Printed Circuit

Metal Core PCB

PCB Board

Glass Transition Temperature (Tg)
The thermal properties of the resin system are characterized by the glass transition temperature (Tg), which always is expressed in °C. The most commonly used property is the thermal expansion. When measuring the expansion versus the temperature, we can get a curve as shown in following picture. The Tg is determined by the intersection of the tangents of the flat and steep parts of the expansion curve. Below the glass transition temperature, the epoxy resin is rigid and glassy. When the glass transition temperature is exceeded, it changes to a soft and rubbery state.

For the most commonly used types of epoxy resin (FR-4 grade), the glass transition temperature is in the range 115-130°C, so when the board is soldered, the glass transition temperature is easily exceeded. The board expands in the Z-axis direction and stresses the copper of the hole wall. The expansion of epoxy resin is about 15 to 20 times greater than that of copper when exceeding Tg. This implies a certain risk of wall cracking in plated-through holes, and the more resin around the hole wall, the greater risk. Below the glass transition temperature, the expansion ratio between epoxy and copper is only three times, so here the risk of cracking is negligible.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
