| Prod Model: |
Hbs2gqph-11d/N, 11d/S,11zd/N,11zd/S,22D/N,22D/S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item No.: |
Hbs2gqph-11d/N, 11d/S,11zd/N,11zd/S,22D/N,22D/S |
| Switch Rating: |
3A/250VAC |
| The Front Shape: |
High Hyperplane |
| The Crust Meterial: |
Nickel-Plated Brass,Stainless Steel |
| Protection Degree: |
IP67,Ik09 |
| Manufacturer: |
Yes |
| Original: |
Zhejiang,China |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Type: |
Composite |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
ISO9001,CE,RoHS,CCC |
Product Description

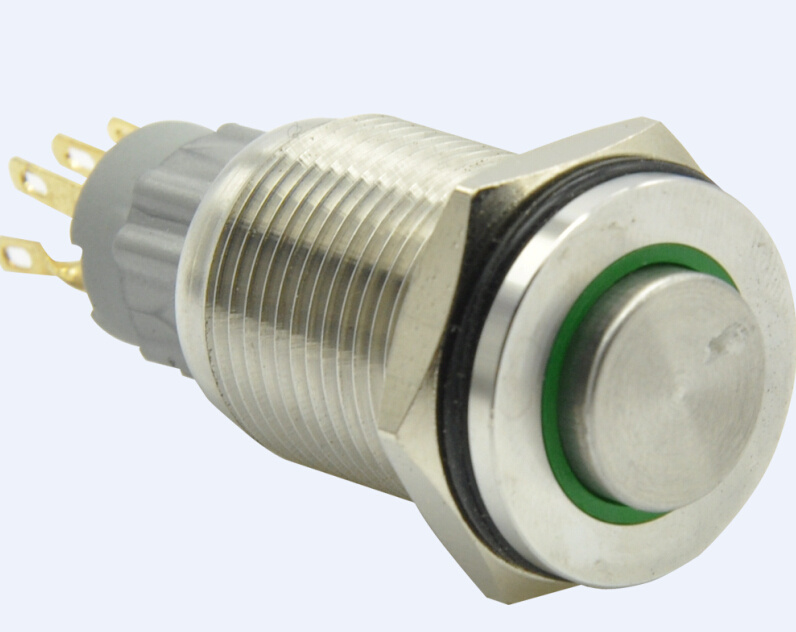

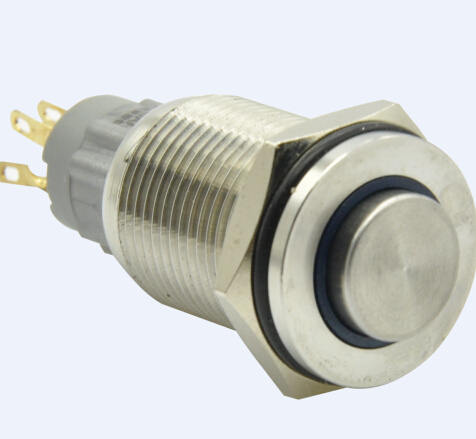

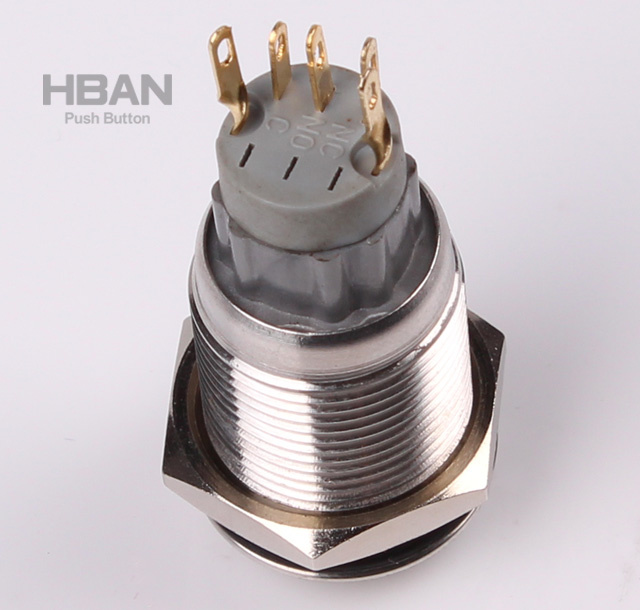

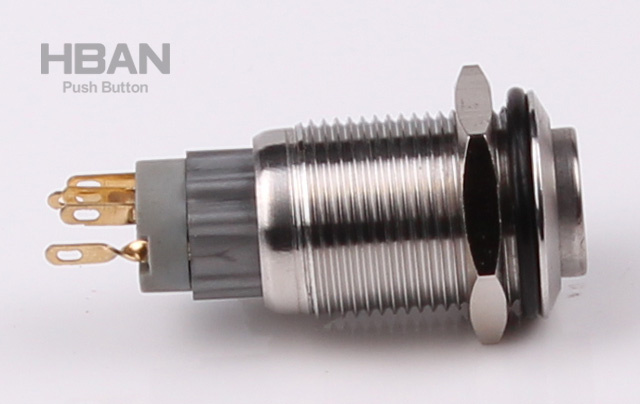

NEW 16mm Hyperplane High Ring -illuminated switch
Item No.:
HBS2GQPH-11E/N (1NO1NC,Momentary,Nickel-plated Brass)
HBS2GQPH-11E/S (1NO1NC,Momentary,Stainless Steel )
HBS2GQPH-11EZ/N (2NO2NC,Latching,Nickel-plated Brass)
HBS2GQPH-11EZ/S (1NO1NC,Latching,Stainless Steel )
HBS2GQPH-22E/N (2NO2NC,Momentary,Nickel-plated Brass)
HBS2GQPH-22E/S (2NO2NC,Momentary,Stainless Steel )
HBS2GQPH-22EZ/N (2NO2NC,Latching,Nickel-plated Brass)
HBS2GQPH-22EZ/S (2NO2NC,Latching,Stainless Steel )
Mounting Hole Size:Φ16mm
Switch Rating: 5A/250VAC
The Front Shape: High Hyperplane
The Crust Material: Nickel-plated Brass / Stainless Steel
Protection Degree:IP67,IK09
Packging Details:
We pack 40 pieces diameter 16mm metal push button switches into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into
a 5 layers corrugated export carton.
About Us: Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button
switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,
electronics, production control, medical, banks, ships, automation and other
industries.
We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.
Tel : 0086-577-62708000 Fax : 0086-577-62708007
| Item No. | HBS2GQPH-11E/N | HBS2GQPH-11ZE/N | HBS2GQPH-11E/S | HBS2GQPH-11ZE/S |
| Specification | 1NO1NC Momentary | 1NO1NC Latching | 1NO1NC Momentary | 1NO1NC Latching |
| Item No. | HBS2GQPH-22E/N | HBS2GQPH-22EZ/N | HBS2GQPH-22E/S | HBS2GQPH-22EZ/S |
| Specification | 2NO2NC Momentary | 2NO2NC Latching | 2NO2NC Momentary | 2NO2NC Latching |
| Front Head Shape | High Hyperplane |
| Terminal Type | Pin Terminal |
| Switch Type | C ( Single breakpoint snap-action changeover contacts) |
| Switch Specification | Ith:3A Ui: 250VAC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >2,000,000 times |
| Electrical Life | >50,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 2.5 ~ 4N |
| Operating Stroke | About 2.8 mm |
| Protection Degree | IP67,IK09 |
| Material | Contact | Sliver Alloy |
| Button | Nickel-plated Brass | Stainless Steel |
| Case | Nickel-plated Brass | Stainless Steel |
| Base | PBT |
| Lamp Specification | Type | LED Ring illumination |
| Rated Voltage | 2V /6V/12V/24V/36V/110V/220V |
| LED Color | Red /Green/Yellow/Orange/Blue/White |
| LED Lifetime | 50000 hours |
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
