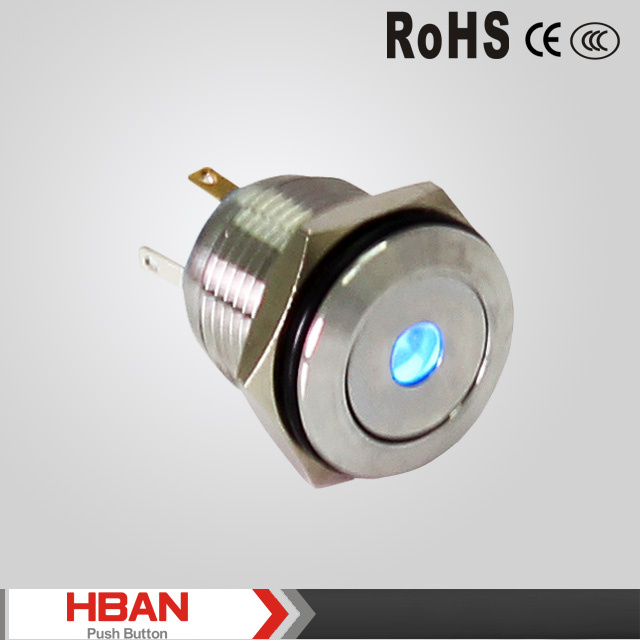

| Prod Model: |
HBGQ16F-10E/J/S |
| Item No.: |
Hbgq16f-10e/J/N, Hbgq16f-10e/J/S |
| Switch Rating: |
2A/36VDC |
| Contact Configuration: |
1no(1nc Can Be Custom Made) |
| Operation Type: |
Momentary |
| The Front Shape: |
Flat Round |
| The Crust Material: |
Nickel-Plated Brass, Stainless Steel |
| Protection Degree: |
IP65, Ik08 |
| Manufacturer: |
Yes |
| Original: |
Zhejiang, China |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Hban |
| Contact Type: |
Type X |
| Certification: |
RoHS |
Product Description
We pack 40 pieces diameter 16mm metal push button switches into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
About Us: Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch,
signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.
Tel : 0086-577-62708000 Fax : 0086-577-62708007
Other imformation
1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer.
2) over 13 years experience of manufacture and selling
3) lowest price from factory
4) up to 5 years product quality warranty
5) safety payment methods including paypal,western union,T/T,moneygram
6) specially customizing products as per your requests
7) products with CCC CE ROHS UL ISO9001 SGS TUV certification
8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight
9) providing samples for free befor placing order
| Item No. | HBGQ16F-10E/J/N | HBGQ16F-10E/J/S |
| Specification | 1NO Momentary | 1NO Momentary |
| Front Head Shape | Flat Round |
| Terminal Type | Pin Terminal |
| Switch Type | X(Two terminal breakpoints slow moving contact) |
| Switch Specification | 2A/36VDC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >1,000,000 times |
| Electrical Life | >200,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.5mm |
| Protection Degree | IP65,IK08 |
| Material | Contact | Sliver Alloy |
| Button | CD Pattem | Mirror Surface |
| Case | Nickel-plated Brass | Stainless Steel |
| Base | PBT |
| Lamp Specification | Type | LED Ring Illumination |
| LED Voltage | 2V/6V/12V/24V/36V |
| LED Color | Red /Green/Yellow/Orange/Blue/White |
| LED Lifetime | 50000 Hours |
Current Limiting Resistor Configuration Table
( Recommended Value) | Rated Voltage U | 6V | 12V | 24V | 36V | Formula R= (U-Ue) / Ie |
| Current Limiting Resistor R | Red /Yellow/Orange | 210Ω ,1/4 W | 510Ω ,1/2 W | 1.2KΩ ,3/4 W | 2KΩ ,1 W |
| Green/Blue/White | 160Ω ,1/4 W | 460Ω ,1/2 W | 1.2KΩ ,3/4 W | 2KΩ ,1 W |
