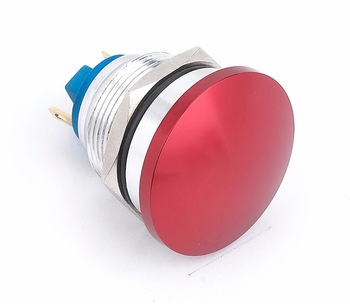

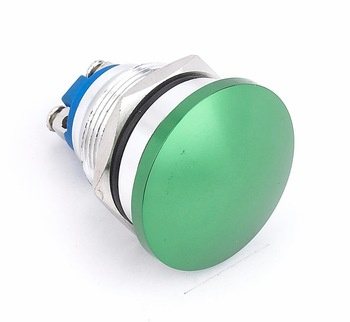

Hban 22mm Mushroom Emergency Stop Switch Screw Terminal Momentary Normal Open Metal Zn-Al Alloy Push Button Switches
| Price: |
US $ 1.8-2.6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HBGQ22M-10/L/T |
| Item No.: |
Hbgq22m-10/L/T |
| Switch Rating: |
2A/36VDC |
| The Front Shape: |
Mushroom |
| The Crust Material: |
Nickel-Plated Brass, Stainless Steel,Zn Al Alloy |
| Protection Degree: |
IP65, Ik08 |
| Contact Configutation: |
1 No |
| Contact Material: |
Silver Alloy |
| Terminal Type: |
Screw Terminal |
| Certificate: |
UL SGS Ce RoHS TUV ISO9001 |
| Operation Type: |
Momentary |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
Type X Contact |
| Brand: |
Hban |
| Certification: |
ISO9001, Ce, RoHS, CCC |
Product Description
HBAN 22mm mushroom emergency stop switch screw terminal momentary normal open metal zn-al alloy push button switchesItem No:HBGQ22M-10/L/N(1NO,MOMENTARY,NICKEL-PLATED BRASS)
HBGQ22M-10/L/S (1NO,momentary,screw terminal,stainless steel)
HBGQ22M-10/L/A (1NO,Momentary,screw terminal,zn-al alloy)
HBGQ22M-10/J/A (1NO,Momentary,pin terminal.zn-al alloy)Mounting Hole Size: Φ 22mm
Switch Rating: 2A/36VDC
The Front Shape: DOMED
The Crust Material: Nickel-plated Brass / Stainless Steel / Zn-al alloy
Protection Degree: IP65, IK08
terminal type:pin terminal / screw terminal
contact configuration:1no (1nc can be made to order)
contact material:silver alloyPackging Details: We pack 20 pieces diameter 16mm metal push button switches into 1 foam box to protect them. We supply 20 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10boxes / 20 boxes into
A 5 layers corrugated export carton.
About Us:Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other
Industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
Tel: 0086-577-62708000 Fax: 0086-577-62708007 | Item No. | HBGQ22M-10/L/T |
| Specification | 1NO Momentary |
| Terminal Type | SCREW TERNIMAL |
| Switch Type | X( TWO TERNIMAL BREAKPOINTS SLOW MOVING CONTACT) |
| Switch Specification | Ith:2A Ui: 36VDC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >2,000,000 times |
| Electrical Life | >50,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8 mm |
| Protection Degree | IP65,IK08 |
| Material | Contact | Sliver Alloy |
| Button | Nickel-plated Brass/ zn al-alloy | Stainless Steel |
| Case | Nickel-plated Brass / zn al-alloy | Stainless Steel |
| Base | PBT |
FAQ:Why choose us?
1:complete product catagory,metal push button switch,plastic bush button switch,signal light,rotary switch,key lock switch,emergency stop switch,buzzer and so on.
2:13 years manufacturing experiences
3:factory direct price
4safe payment terms:T/T,PAYPAL,WEST UNION,moneygram
5:OEM avaliable
6 provideing customized products (as per you request)
7 having certificate of CCC,CE,ROHS,UL,TUV,SGS,ISO9001
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
