Hban Ce RoHS 19mm Domed Momentary/Latching Metal Push Button Switch

Name: Hban Ce RoHS 19mm Domed Momentary/Latching Metal Push Button Switch
Brand: all-electronics-online.com
SKU: 787225115
Availability: InStock
Rating: 4.5 (69 reviews)

Price:	US $ 1.64-1.8/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	hbgq19b-10/j
LED Color:	Red, Green, Yellow, Orange, White, Blue
Diameter:	16mm
Voltage:	2V, 6V, 12V, 24V, 36V, 110V, 220V
Termianl:	Pin Terminal
IP:	IP65, Ik08
Crust Material:	Stainless Steel/Nickel-Plated Brass
The Front Shape:	Domed
Operation Type:	Latching/Momentary
Configuration Contact:	1 NO
Certificate:	CCC Ce RoHS TUV UL SGS ISO9001
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Contact Type:	X
Brand:	Hban

Product Description

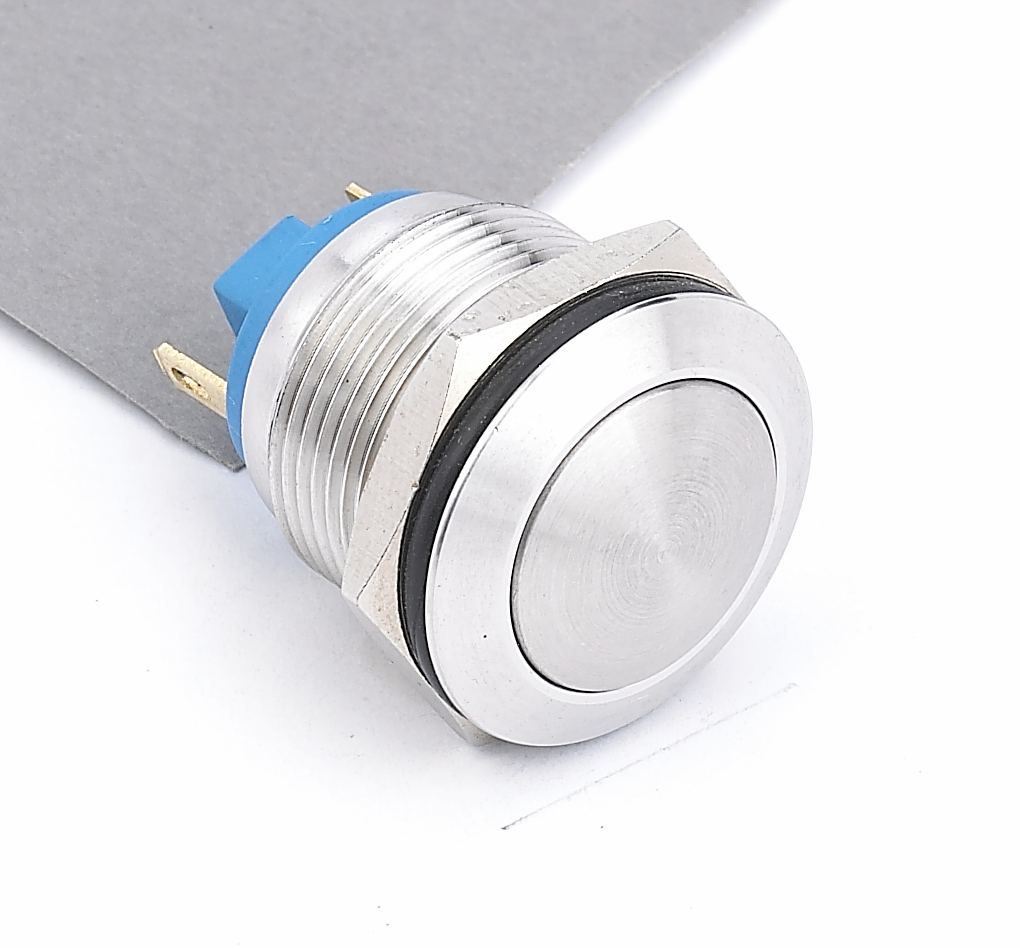

HBGQ19B-10 19mm metal pushbutton switch

Item NO.:HBGQ19B-10
Mounting Hole Size:Dia.19mm
Protection Degree:IP65,IK108
Lamp Color:Red / Green / Yellow / Orange / Blue / White
CE ROHS CERTIFICATE
The Crust Material:Stainless steel/Zn-al alloy/Nickel-plated brass

Packaging Details:

We pack 20 pieces diameter 19mm metal push button switches into 1 foam box to protect them .We supply 20 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel : 0086-577-62708000 Fax : 0086-577-62708007

Item No.		HBGQ19B-10/N	HBGQ19B-10/S
Specification		1NO Momentary	1NO Momentary
Item No.		HBGQ19B-01/N	HBGQ19B-01/S
Specification		1NC Momentary	1NC Momentary
Front Head Shape		Domed
Terminal Type		Screw Terminal
Switch Type		X(Two terminal breakpoints slow moving contact)
Switch Specification		2A/36VDC
Contact Resistance		≤50m Ω
Insulation Resistance		≥1000MΩ
Dielectric Strength		2000V AC
Operating Temperature		-20degree~+55degree
Machanical Life		>1,000,000 times
Electrical Life		>200,000 times
Panel Thickness		1~10mm
Torque		5~14Nm
Operating Pressure		About 4N
Operating Stroke		About 1.8mm
Protection Degree		IP65,IK09
Material	Contact	Sliver Alloy
	Button	Mirror Surface
	Case	Nickel-plated Brass	Stainless Steel
	Base	PBT
	RoHS	Can be made to order

Why Choose Us ?
1.More than10 years professional production & selling
push button switch experience .

2.Best Quality & Best Price .

3. Have perfect certificate: CCC/CE/ROHS/ISO90001.
If you need more informaion pls contact us :
YUEQING DAHE Electric Co., Ltd
Address:  NO.180 Huxi Road,Huxi Village, Liushi Town, Yueqing City,Zhejiang,China
Tel: +86-577-62708000    Fax: +86-577-62708007  mobile:+8613868768789
Website: http://www.china-hban.com
Work time: 8:30-12:00  13:00-17:30(Except Sunday)

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.

Tel: 0086-577-62708000 Fax: 0086-577-62708007
