Hban CE RoHS (22mm) with Power Symbol Pushbutton Switch

Name: Hban CE RoHS (22mm) with Power Symbol Pushbutton Switch
Brand: all-electronics-online.com
SKU: 693011622
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 0.1-1.74/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Hbs1-Awy-11t,11zt,22t,22zt,11dt,11dzt,22dt,22dzt
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No.:	Hbs1-Awy-11t,11zt,22t,22zt,11dt,11dzt,22dt,22dzt
Switch Rating:	5A/250VAC
Contact Configuration:	1nonc,2no2nc
Operation Type:	Momentary/Latching
The Front Shape:	Flat Round
The Crust Meterial:	PC
Protection Degree:	IP40,IP65
Manufacturer:	Yes
Original:	Zhejiang,China
Diameter:	22mm
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Brand:	Hban
Certification:	ISO90001,CE,RoHS,CCC

Product Description

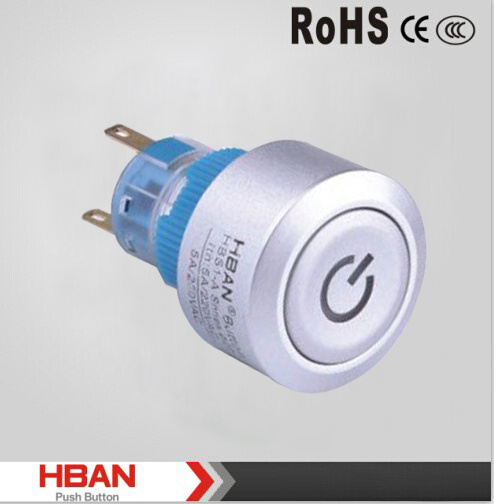

Hban CE RoHS 22mm Push Button with Illuminated Power Symbol

1.Mounting Hole Size:Φ22mm
2. Switch Rating :5A/250VAC
3. Contact Configuration:1NO1NC,2NO2NC
4.Operation Type: Momentary/Latching

5.TheFront Shape: Flat Round
6.The Crust Meterial: PC
7.Protection Degree: IP40

8.Terminal Type: Pin Terminal
9.Illuminated type: Symbol
10.Color: R/G/Y/O/B/W
11.Lamp voltage: 6V/12V/24V/110V/220V

Packing Details:

We pack 20 pieces diameter 22mm plastic push button switches into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch,
signal lamp, buzzers, waterproof and anti vandal metal push button switch for more
than 10 years with CE and RoHS certificates. Our products are widely used in machinery,
machine tools, electric power, electronics, production control, medical, banks, ships, a
utomation and other industries.

We can customize push button switch according to your specification, If you have any
requirement or question,please feel free to contact us.

Tel : 0086-577-62708000 Fax : 0086-577-62708007

Item No.		HBS1-AWY-11T	HBS1-AWY-11ZT
Specification		1NO1NC Momentary	1NO1NC Latching
Item No.		HBS1-AWY-22T	HBS1-AWY-22ZT
Specification		2NO2NC Momentary	2NO2NC Latching
Item No.		HBS1-AWY-11DT HBS1-AWY-11DZT
Specification		With lamp 1NO1NC Momentary With lamp 1NO1NC Latching
Item No.		HBS1-AWY-22DT HBS1-AWY-22DZT
Specification		With lamp 2NO2NC Momentary With lamp 2NO2NC Latching
Item No.		HBS1-AWY-DT
Specification		Signal lamp
Front Head Shape		Flat Round
Terminal Type		Pin Terminal
Switch Type		C(Single-break fast-motion changeover contact)
Switch Specification		Ith: 5A Ui :250VAC
Contact Resistance		≤50m Ω
Insulation Resistance		≥1000MΩ
Dielectric Strength		2000V AC
Operating Temperature		-20degree~+55degree
Machanical Life		>1,000,000 times
Electrical Life		>200,000 times
Panel Thickness		1~10mm
Torque		5~14Nm
Operating Pressure		3-5N
Operating Stroke		About 3.1mm
Protection Degree		IP40
Material	Contact	Sliver Alloy
	Button	PC
	Case	PC
	Base	PBT
	RoHS	Can be made to order

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

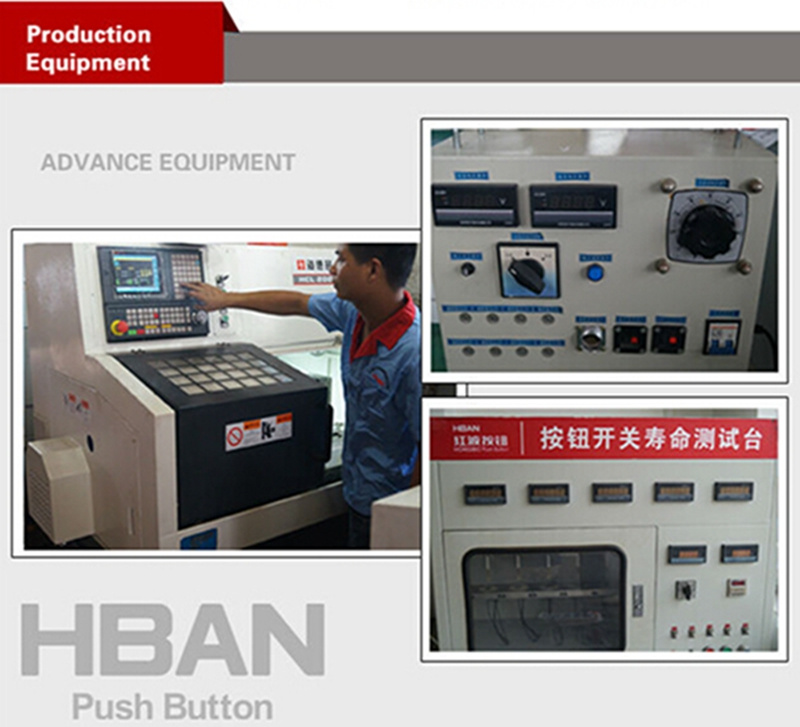

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
