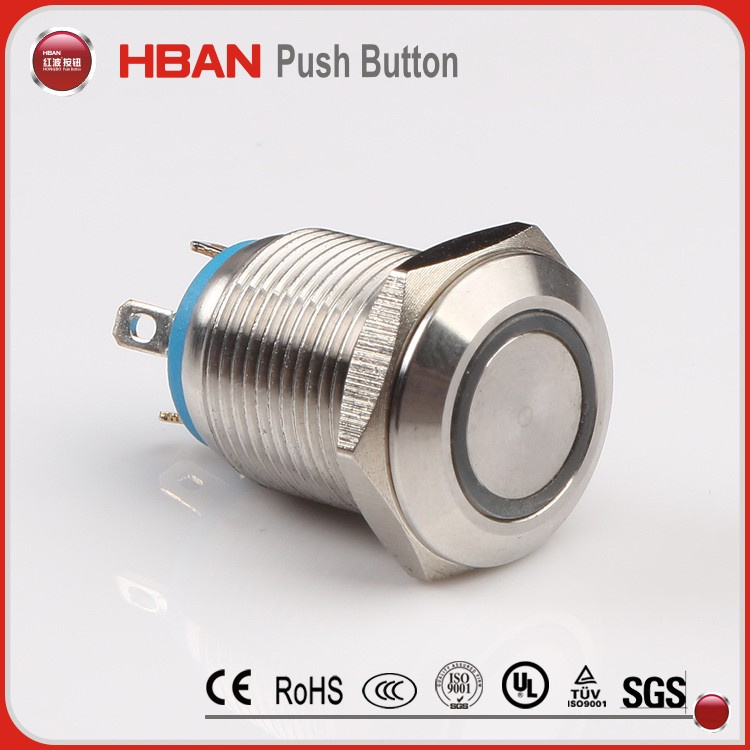

Hban New Type Ce RoHS (12mm) Hyperplane Flat Round Pin Terminal Metal Push Button Switch

Name: Hban New Type Ce RoHS (12mm) Hyperplane Flat Round Pin Terminal Metal Push Button Switch
Brand: all-electronics-online.com
SKU: 694907622
Availability: InStock
Rating: 5 (23 reviews)

Price:	US $ 0.1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ12PF-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	12mm Hyperplane Metal Push Button Switch
Max. Current:	2A
Max. Voltage:	36VDC
Material:	Nickel-Plated Brass/Stainless Steel
Mounting Hole Size:	12mm
Protection Degree:	IP65,Ik08
Original:	Wenzhou,China
Packaging:	50PCS/Box , 1000PCS/CTN
Manufacturer:	Yes
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Brand:	Hban

Product Description

Product Show:

Why Choose Us ?

1.More than10 years professional production & selling

push button switch experience .

2.Best Quality & Best Price .

3. Have perfect certificate: CCC/CE/ROHS/ISO90001.

Parameters:

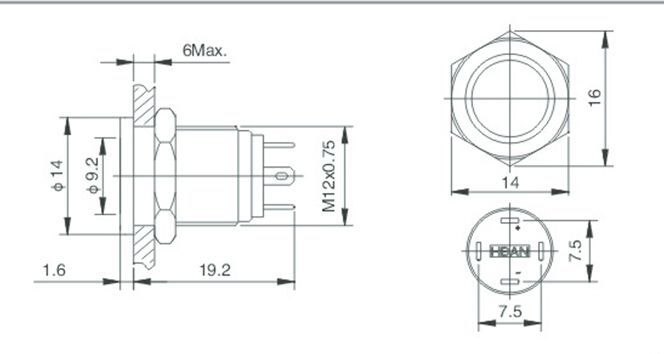

HBGQ12PF-10 Hyperplane Flat Round Head Metal Push Button Switch

Mounting Hole Size: Φ12mm

Switch Rating : 2A/36VDC

Contact Configuration:1NO

The Front Shape: Hyperplane Flat Round

Operating Type:Momentary

The Crust Material:Stainless steel ; Nickel-plated Brass;Gold-plated Brass

Protection Degree:IP65,IK08

Terminal Type:Pin Terminal

Panel Thickness:1-10mm

Torque: 5-14Nm

Operating Pressure: About 4N

Operating Stroke : About 1.8mm

Contact: Sliver Alloy

Button: Stainless steel;Mirror Surface; CD Pattern

Base: PBT

ROHS: Can be made to order

Company Brief :

YUEQING DAHE Electric Co., Ltd. is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch, our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state. After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

Application :

They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
