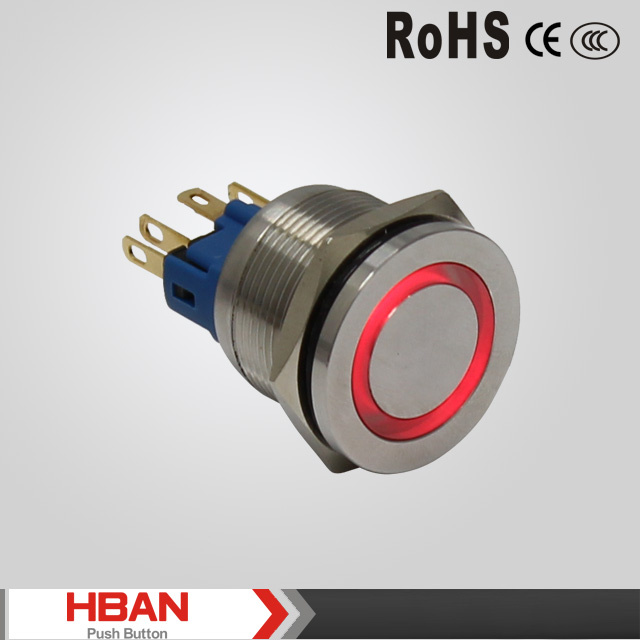

Hbgq22-11/E Illuminated Waterproof Metal Push Button Switch

Name: Hbgq22-11/E Illuminated Waterproof Metal Push Button Switch
Brand: all-electronics-online.com
SKU: 777709475
Availability: InStock
Rating: 4.5 (82 reviews)

Price:	US $ 5.73-5.95/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ22-11/E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Color:	Red, Green, Yellow, Orange, White, Blue
Diameter:	22mm
Voltage:	2V, 6V, 12V, 24V, 36V, 110V, 220V
Termianl:	Pin Terminal
IP:	IP65, Ik10
Crust Material:	Stainless Steel
Type:	Composite
Usage:	Control Button
Kind:	Double-pole on-off Switch
Contact Type:	Za
Brand:	Hban

Product Description

HBGQ22-11/E 22mm metal signal lamp

Item NO.: HBGQ22-11/E
Mounting Hole Size:dia.22mm
Lamp Type:LED
Protection Degree:IP65,IK10
Lamp Color:Red / Green / Yellow / Orange / Blue / White
The Crust Material: Stainless Steel
CE ROHS CERTIFICATE
Ring- illuminated LED pilot lamp

Packing Details:

We pack 40 pieces diameter 22 mm Push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button
switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel : 0086-577-62708000 Fax : 0086-577-62708007

Item NO.		HBGQ22-11/E
Specification		Indicator
Head Shape		Flat
Terminal Type		Pin Terminal
Dielectric Strength		2000VAC
Operating Temperature		-20 degree ~ + 55 degree
Panel Thickness		1~8 mm
Torque		5~14Nm
Protection Degree		IP65,IK10
Material	Shade	PC
	Case	Stainless steel
	Base	PA
Lamp Specification	Type	LED Ring-illumination
	Rated Voltage	2V /6V/12V/24V/36V/110V/220V
	Rated Current	About 15mA ~3 mA
	LED Color	Red /Green/Yellow/Orange/Blue/White
	LED Lifetime	50000 hours
