HDI 16 Layer Stackups for Large Dense BGA PCB
| Price: |
US $ 0.99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1289R1.3 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Silkscreen Color: |
White |
| Copper Thickness: |
1 Oz |
| Board Thickness: |
2.4mm |
| Minimum Trace and Space: |
4.5 Mil/4.5 Mil |
| Minimum/Maximum Holes: |
0.36/2.5mm |
| Via: |
Via in Pad |
| Board Plating: |
0.0030" |
| Test: |
Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Prototype board Service 16 Layer Multilayer PCB Via in Pad Technical Skill FR-4 At 2.4mm
Thick Applied In Communication Systems
Commodity Introduction

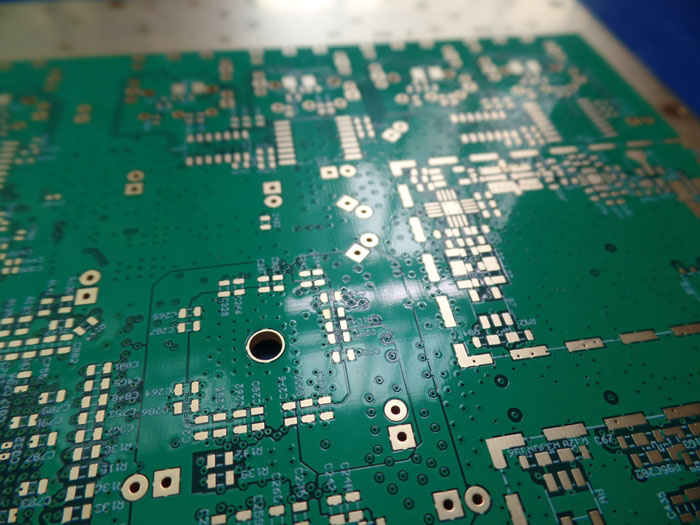

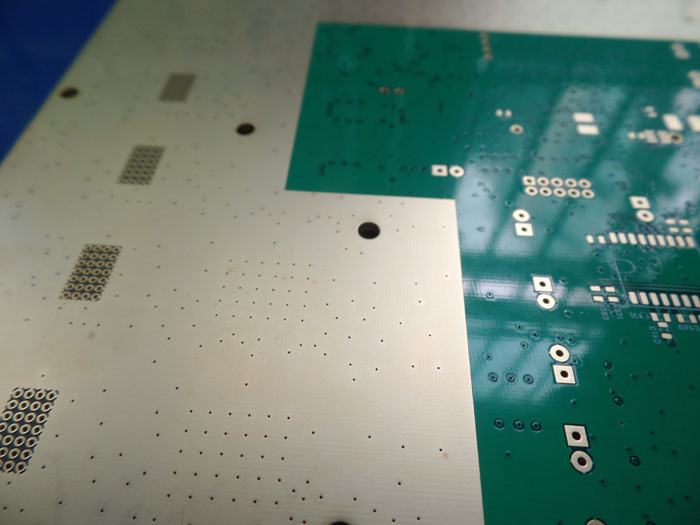

This is a type of FR-4 PCB for the application of Communication Systems It's a 16 layer board
at 2.4mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 260 x 165mm=1PCS=1design |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 16 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- TOP 17um(1oz)+plate 25um |
| 65 um prepreg 1080 x 1 |
| copper ------- L02 35um(1oz) |
| 150um core FR-4 |
| copper ------- L03 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L04 35um(1oz) |
| 150um core FR-4 |
| copper ------- L05 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L06 35um(1oz) |
| 150um core FR-4 |
| copper ------- L07 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L08 35um(1oz) |
| 150um core FR-4 |
| copper ------- L09 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L10 35um(1oz) |
| 150um core FR-4 |
| copper ------- L11 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L12 35um(1oz) |
| 150um core FR-4 |
| copper ------- L13 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L14 35um(1oz) |
| 150um core FR-4 |
| copper ------- L15 35um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- BOT 17um(0.5oz)+plate 25um |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4.5mil/4.5mil |
| Minimum / Maximum Holes: | 0.36/2.5mm |
| Number of Different Holes: | 13 |
| Number of Drill Holes: | 2519 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180, Tg >170, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 2.4mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 0.05µm over 3µm nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented.
Via in pad |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Communication systems, Switch Mode
Power Supply
Switch Board
Frequency Converter
RF Module
Motor Driver |
TYPE OF ARTWORK
TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
Fast PCB prototypes| Category | Fastest lead time | Stanardard lead time |
| 2 layer | 24 hrs | 4 days |
| 4 layer | 48 hrs | 5 days |
| 6 layer | 72 hrs | 7 days |
| 8 layer | 96 hrs | 9 days |
| 10 layer | 120 hrs | 11 days |
| 12 layer | 120 hrs | 12 days |
| 14 layer | 144 hrs | 15 days |
| 16-20 layer | Depends on specifications |
| 20 layer above | Depends on specifications |
