HDI PCB 6 Layer Stacked Via and Skipped Via Board

Name: HDI PCB 6 Layer Stacked Via and Skipped Via Board
Brand: all-electronics-online.com
SKU: 823531245
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	US $ 0.89/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-391-V3.91
Finished Thickness:	1.618mm
Copper Thickness:	1 Oz
Surface Finish:	Immersion Gold
Solder Mask Color:	Green
Silkscreen Color:	White
Trace Width (mm):	0.259mm
Spacing(mm):	0.187mm
Standard:	Ipc Class 2
Function Electrioal Test:	100%,Pass
Warp and Twist:	0.25%
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

High Tg175 Multilayer PCB 6 Layer FR4 with ENIG for IPC-A 600H class 2 standard

Commodity introduction

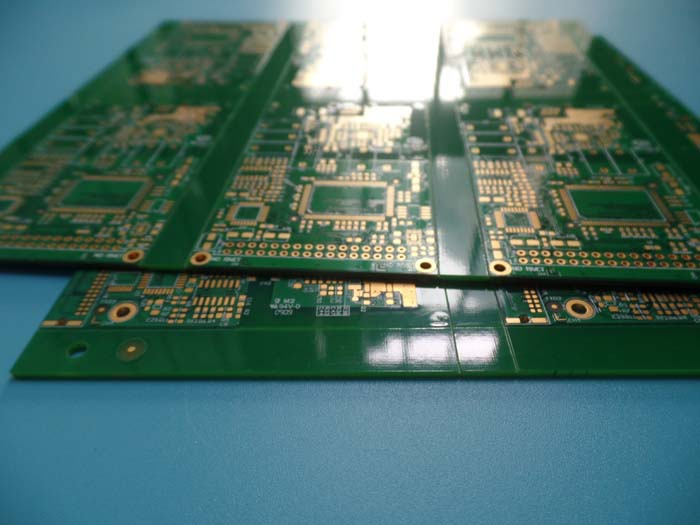

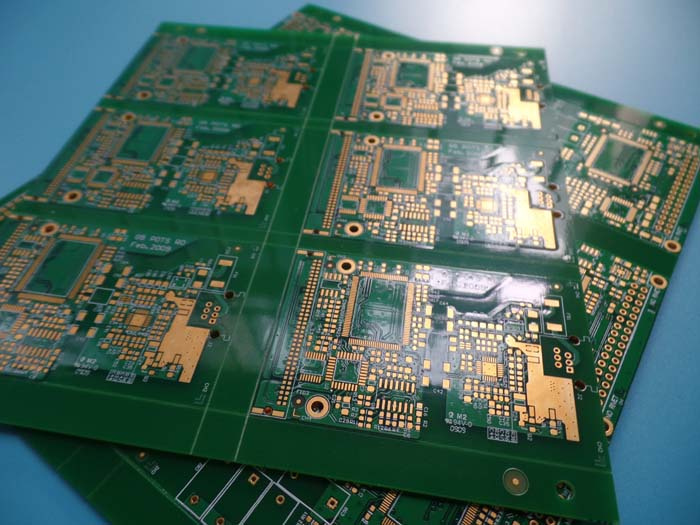

This is a type of FR-4 PCB for the application of CODEC. It's a 6 layer board at 1.618mm thick.
The base laminate is from ShengYi, Solder mask and silkscreen from NanYa and Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item	Description		Requirement	Actual

Laminate	Laminate Type		FR4:CTI:175V-249V	FR4:CTI:175 V-249V
	Supplier		SHENGYI	SHENGYI
	Tg		TG >135	TG >135
	Finished thickness		1.6+/-0.16% MM	1.618MM
Plating thickness	PTH Cu thickness		23 um	25.78um
	Inner layer Cu Thickness		1/1 OZ	1/1 OZ
	Surface Cu thickness		35 um	56.20 um
Solder Mask	Material type		LP-4G G-05	LP-4G G-05
	Supplier		Nan Ya	Nan Ya
	Color		Green	Green
	Single / both sides		Both Sides	Both Sides
	S/M thickness		>=10.0 um	27.73 um
	3M tape test		NO Peel Off	no peel off
Legend	Material type		S-380W	S-380w
	Supplier		Tai yo	Tai yo
	Color		White	White
	Location		Both Sides	Both Sides
	3M tape test		No peel off	no peel off
Circuit	Trace Width (mm)		0.254mm	0.259mm
	Spacing (mm)		0.19mm	0.187mm
Identification	UL mark		YES	OK
	Company Logo		YES	OK
	Date code		WWYY	WWYY
	Mark location		NA	OK
Surface treatment	ENIG	Nickel	100u"	113u"
		Gold	2u"	2.14u"
Reliabilty Tests	Thermal shock test		288±5ºC, 10sec ,3 cycles	NO Discolor, NO Delamination
	solder abllity test		245±5ºC	100% wetting
Function	Electrioal Test		100%	pass
Standard	IPC-A 600H class 2, IPC_6012C CLASS 2		100%	Pass
Appearance	Visual inspection		100%	Pass
	warp and twist		<= 0.75%	0.25%
Others	V-Cut thickness		0.4±0.1 mm	0.43mm
	Angle		30+/- 5	30º

Learn PCB and Buy PCB
Frequently used Unit Conversion in PCB industry

1 inch= 25.4mm
1 inch= 1000mil
1 foot = 12 inch=0.3048 meter

1mm = 39.37mil
1mm = 1000µm
1µm = 39.37 micro inch

1oz = 35µm = 1.4mil = 305g/m²

1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²
1ft² = 144 inch² = 0.09290304m² = 9.29dm²
1m² = 1549.9969 inch²
