| Prod Model: |
LK-DVICB003 |
| Connector Material: |
Gold Plated |
| Screw: |
Gold Plated |
| Inner Material: |
PE Mold Injection |
| Outer: |
PVC Mold Injection |
| Application: |
Game Player |
| Color: |
Black |
| Connector: |
HDMI |
| Certification: |
UL |
| Type: |
Weak Current |
Product Description

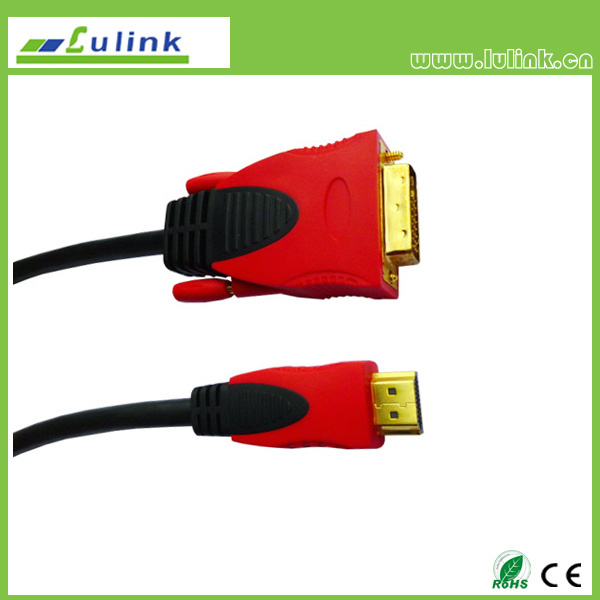

DVI to HDMI cable
LK-DVICB001
HDMI M to DVI 18+1/24+1 M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, PVC injection molding the outer mold
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
DVI to HDMI cable
HDMI M to DVI 18+1/24+1 M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, Dual Color PVC molding type
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26/24)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
LK-DVICB003
DVI TO HDMI CABLE
HDMI M to DVI 18+1/24+1 M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, Dual Color PVC molding type
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26/24)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
DVI TO HDMI CABLE
LK-DVICB004
HDMI M to DVI 18+1/24+1 M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, Metal casing molding type
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26/24)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
DVI TO DVI CABLE
LK-DVICB005
DVI 18+1/24+1 M to M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, PVC injection molding the outer mold
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26/24)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
DVI TO DVE CABLE
LK-DVICB006
DVI 18+1/24+1 M to M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, Dual Color PVC molding type
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26/24)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
DVI TO DVI CABLE
LK-DVICB007
DVI 18+1/24+1 M to M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, Metal casing molding type
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26/24)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
DVI TO DVI CABLE
LK-DVICB008
DVI 18+1/24+1 M to M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, Aluminum casing molding type
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26/24)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
DVI TO HDMI CABLE
LK-DVICB009
HDMI M to DVI 18+1/24+1 M Cable
gold plated or nickel plated connectors & gold plated or nickel plated screw
PE inner mold, Aluminum casing molding type
Aluminum casing Color have red,blue, gold,silver
bare copper conductor, braided aluminum-magnesium wire
HDMI 1.3 version ,1080P
18+1 Cable: UL20276 30(28/26)AWG(1P+D+AL+MY)*4+1P+5C+AEB+Jacket, OD:7.3MM /8.2MM
24+1 Cable: UL20276 30(28/26/24)AWG#(1P+D+A+MY)*7+1P+3C+AEB+Jacket, OD: 8.6MM
Package: Polybag or Bubble blister
All materials conform to ROHS
DVI to HDMI cable
HDMI M/DVI 24+1M
old-plated connector & gold-plated screw
PE inner mold, PVC injection outer mold
Copper conductor, braided aluminum-magnesium wire
HDMI1.3version 1080P
The standard gauge of 3 layer shielding:
UL20276 30(28/26)#
(1P+D+A+MY)*4P+1P+3C+AB+Jacket
The non-standard gauge of 2 layer shielding:
UL20276 30#
(1P+A+MY)* 4P+1P+3C+AD+Jacket
