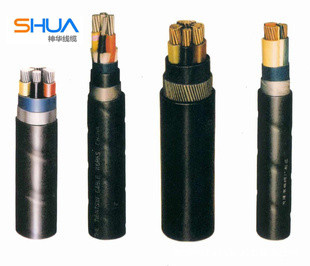

Heat-Resistant Control Cable with Fluoroplastics Insulation&PVC Sheath

Name: Heat-Resistant Control Cable with Fluoroplastics Insulation&PVC Sheath
Brand: all-electronics-online.com
SKU: 729064995
Availability: InStock
Rating: 4.7 (121 reviews)

Price:	US $ 5/Meter
Trade Terms:	FOB,CIF
Min Order:	100/Meter
Pay Type:	L/C,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KF Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	100m
Type:	Insulated
Conductor Type:	Solid
Application:	Heating
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	CCC

Product Description

It is used as single -transmintting cable for electrical appliances, instruments and automatic control system of A. C rated voltage 450/750Vor lower.

Executive Standard:
As GB/T4989-94&JB/T4795-94

Working Conditions:
*The long-term working temperature of conductor should be no higher than 200º C, and ambient temperatureshould be no lower than 105º C.
*Rated Voltage u° /u: 450/750v:

*The lowest environment temperature: -40º C for fixedly laying; -15º C for non--fixed insulation.
*Min. Bending Radius: IT Should be no less than 6 times that of cable outer diameter for the cable without armor, and 12 times that of cable outer diameter for armored cable.

×mm2
	mm	kg/km		mm	kg/km
	mm	VV	VLV	mm	VV22	VLV22
1×1.5	6.1	50	-	-	-	-
1×2.5	6.5	62	47	-	-	-
1×4	7.4	87	63	-	-	-
1×6	8.0	110	75	-	-	-
1×10	9.4	166	96	13.3	346	270
1×16	10.4	234	133	14.5	432	331
1×25	12.1	345	186	16.4	574	414
1×35	13.2	450	229	17.4	692	475
1×50	14.7	585	276	18.5	863	533
1×70	16.5	800	366	20.3	1133	700
1×95	18.9	1065	475	22.5	1432	844
1×120	20.2	1328	586	24.0	1705	962
1×150	21.4	1600	702	25.7	2044	1120
1×185	24.3	1990	850	28.0	2438	1296
1×240	27.1	2546	1060	32.0	3057	1570
1×300	29.8	3140	1292	35.0	3926	2070
1×400	33.0	4127	1651	38.8	5084	2608

(0.6/1kV)

×mm2
	mm	kg/km		mm	kg/km
	mm	VV	VLV	mm	VV22	VLV22
2×1.5	10.4	118	-	-	-	-
2×2.5	11.3	151	118	-	-	-
2×4	13.0	210	159	16.6	424	374
2×6	14.1	263	192	17.7	494	425
2×10	16.8	394	242	20.3	665	497
2×16	18.8	541	334	22.4	845	638
2×25	22.3	794	468	25.9	1154	827
2×35	24.5	1037	585	28.5	1436	982
2×50	20.6	1236	592	24.2	1580	940
2×70	22.7	1647	745	26.5	2210	1302
2×95	25.8	2189	966	30.0	2800	1530
2×120	28.5	2640	1144	34.0	3400	850
2×150	32.0	3280	1410	37.2	4150	2198
2×185	35.4	4006	1703	41.3	5025	2592

(0.6/1kV)

×mm2
	mm	kg/km		mm	kg/km
	mm	VV	VLV	mm	VV22	VLV22
3×1.5	10.9	142	-	-	-	-
3×2.5	11.9	187	139	-	-	-
3×4	13.7	264	189	17.3	489	413
3×6	14.8	335	226	18.5	578	472
3×10	17.6	514	290	21.4	801	560
3×16	19.9	729	418	23.6	1058	743
3×25	23.7	1085	596	27.5	1470	979
3×35	26.2	1430	748	30.5	2148	1370
3×50	26.5	1820	839	31.5	2457	1489
3×70	29.1	2982	1080	34.7	3122	1768
3×95	33.6	3950	1418	38.4	4055	2218
3×120	37.0	3982	1747	41.5	4925	2606
3×150	40.7	4950	2135	46.8	6050	3154
3×185	45.0	6156	2610	50.9	7299	3721
3×240	50.6	7886	3308	56.5	9223	4584
3×300	55.0	9647	4059	61.7	1022	5423

(0.6/1kV)

×mm2
	mm	kg/km		mm	kg/km
	mm	VV	VLV	mm	VV22	VLV22
4×4	15.0	332	231	18.8	581	480
4×6	16.2	430	270	20.4	703	551
4×10	19.7	641	393	23.2	891	637
4×16	22.0	902	499	26.0	1175	771
4×25	26.5	1438	766	30.5	1998	1347
4×35	29.7	1815	919	34.8	2585	1660
4×50	30.4	2380	1091	35.0	3100	1819
4×70	33.8	3202	1398	38.9	4039	2228
4×95	38.8	4300	1860	44.0	5200	2800
4×120	42.5	5269	2186	48.7	6400	3320
4×150	46.7	6554	2748	52.8	7806	3958
4×185	51.9	8090	3365	57.9	9442	4700

(3+1)

×mm2
	mm	kg/km		mm	kg/km
	mm	VV	VLV	mm	VV22	VLV22
3×4+1×2.5	14.5	310	215	18.1	543	447
3×6+1×4	16.1	403	268	19.7	661	526

×mm2
	mm	kg/km		mm	kg/km
	mm	VV	VLV	mm	VV22	VLV22
3×10+1×6	18.9	600	363	22.6	894	625
3×16+1×10	21.6	858	505	25.4	1195	807
3×25+1×16	25.5	1315	693	29.0	1679	1082
3×35+1×16	27.6	1645	834	31.7	2243	1458
3×50+1×16	30.4	2124	996	35.4	2867	1736
3×70+1×25	34.2	2867	1285	39.3	3698	2099
3×95+1×35	39.2	3824	1664	44.3	4796	2623
3×120+1×50	42.5	4784	2060	48.8	5900	3129
3×150+1×70	46.0	5790	2473	51.0	6921	3623
3×185+1×70	51.6	7164	3050	57.5	8437	4369
3×240+1×95	57.8	9414	3842	64.0	11163	5586
3×300+1×150	63.0	11749	4920	70	13465	6445

(0.6/1kV)
0.6/1kV:
1,:VV22,VLV22
2,:70ºC,:30ºC
3,25ºC,:1.2m/w,

mm2

							3+1								3+1

4	-	-	37	29	32	24	29	23	-	-	45	35	38	29	36	27
6	-	-	48	37	40	32	39	29	-	-	56	43	47	37	56	36
10	82	64	67	52	57	45	52	40	101	78	77	59	65	50	61	47
16	111	85	91	70	77	60	70	54	132	104	102	79	87	66	81	62
25	143	111	122	92	102	80	94	73	175	132	125	97	109	84	106	82
35	175	138	143	111	122	95	119	92	212	164	148	115	130	100	134	103
50	223	175	180	138	154	122	149	115	260	201	181	140	160	123	163	125
70	276	212	217	170	191	148	1841	141	307	238	220	170	195	150	196	151
95	334	260	-	-	233	180	226	174	371	286	-	-	229	176	234	181
120	387	297	-	-	270	207	260	201	424	339	-	-	262	201	267	206
150	445	345	-	-	313	244	301	231	483	375	-	-	229	229	301	231
185	509	398	-	-	360	281	345	266	541	419	-	-	334	257	338	261
240	615	477	-	-	424	334	-	-	636	493	-	-	386	298	-	-
300	700	541	-	-	477	371	-	-	721	557	-	-	445	350	-	-
400	832	641	-	-	-	-	-	-	828	647	-	-	-	-	-	-

:VV,VLV.

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
