Heavy Copper 2oz Double Sided PCB Board Wtih HASL Finished

Name: Heavy Copper 2oz Double Sided PCB Board Wtih HASL Finished
Brand: all-electronics-online.com
SKU: 822069485
Availability: InStock
Rating: 4.5 (73 reviews)

Price:	US $ 0.48/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-215-V2.15
Board Thickness:	1.6mm
Copper Thickness:	70um(2oz)
Surface Finish:	Lead Free HASL
Solder Mask:	Green
Legend:	White
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

2oz copper Double Sided PCB FR4 1.6mm Thick with Lead free HASL Mask Small Runs to
Mass Production for Bluetooth Printer

Commodity Introduction
This is a type of FR-4 PCB for the application of Bluetooth Printer. It's a 2 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Basic information

File name	PCB Dimensions (MM)	PCB requirements
File name	PCB Dimensions (MM)	MATERIAL	Thickness (MM)	Layers	Copper	Finish	Solder Mask	Legend
ADSL0412	90.10×60.20	FR-4	1.6	2	70um (2oz)	lead free HASL	Green	White

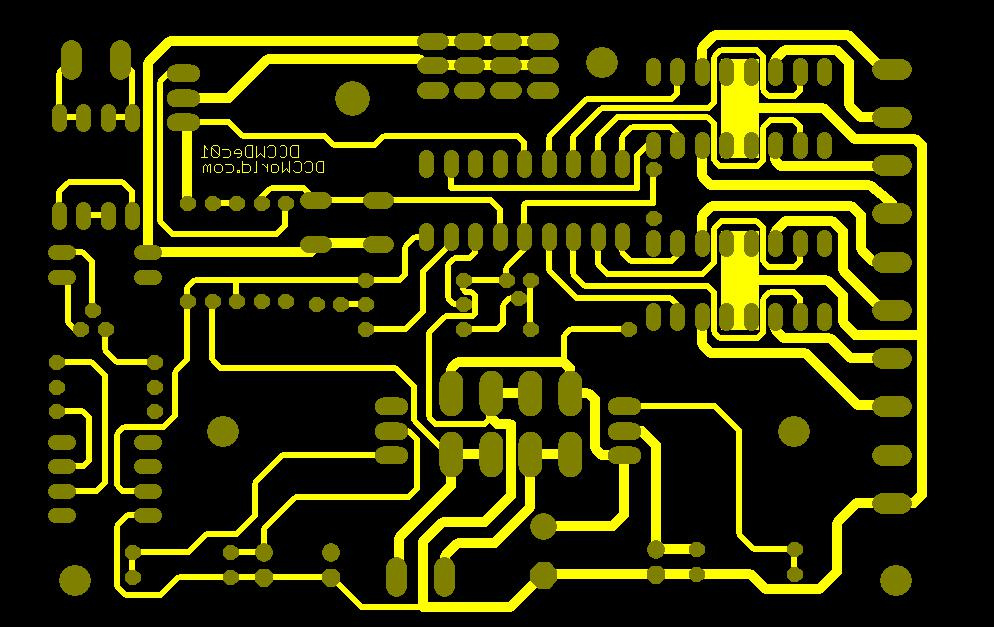

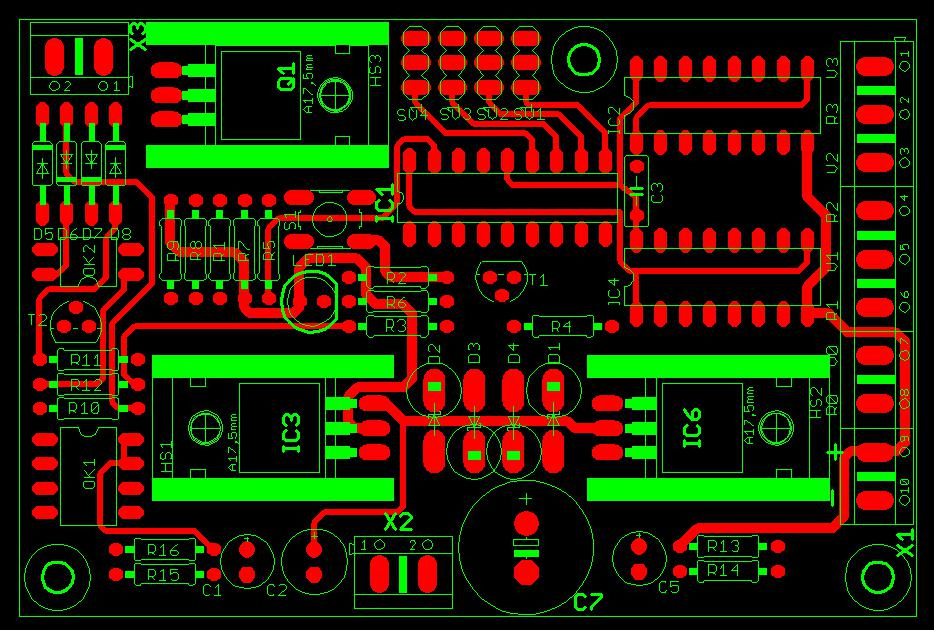

Top layer with Silkscreen

Bottom layer with solder mask
