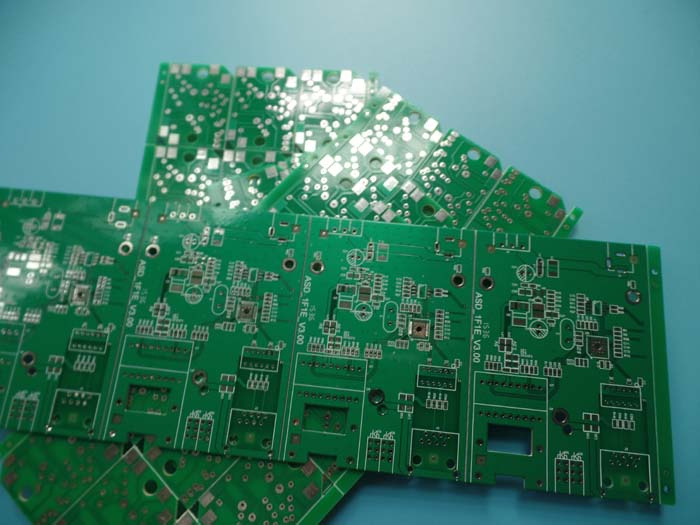

Heavy Copper 3 Oz PCB Board 2 Layer Green Soldermask
| Price: |
US $ 0.42/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-388-V3.88 |
| Finished Thickness: |
1.66mm |
| Surface Finish: |
Lead Free HASL |
| Surface Cu Thickness: |
105.5 Um(3 Oz) |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Trace Width (mm): |
0.487mm |
| Spacing (mm): |
0.368mm |
| Visual Inspection: |
Ipc_6012c Class 2 |
| V-Cut Thickness: |
0.39mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Heavy copper 3oz PCB board 2 layer FR4 Green Soldermask with HASL Lead Free
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.66mm thick.
The base laminate is from ShengYi, Solder mask and silkscreen from Nan Ya and Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
|
| Laminate | Laminate Type | FR4 | FR4 |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG >135 | TG >135 |
| Finished thickness | 1.6+/-0.16% MM | 1.66 MM |
Plating
Thickness | PTH Cu thickness | 20um | 23.11um |
| Inner layer Cu Thickness | / | / |
| Surface Cu thickness | 105 um | 105.5 um |
| Solder Mask | Material type | LP-4G G-05 | LP-4G G-05 |
| Supplier | Nan Ya | Nan Ya |
| Color | Green | Green |
| Single / both sides | TS Sides | TS Sides |
| S/M thickness | >+ 10.0 um | 22.1 um |
| 3M tape test | NO Peel Off | no peel off |
| Legend | Material type | S-380W | S-380w |
| Supplier | Tai yo | Tai yo |
| Color | White | White |
| Location | SS | SS |
| 3M tape test | No peel off | no peel off |
| Circuit | Trace Width (mm) | 0.484+/-20%mm | 0.487mm |
| Spacing (mm) | 0.371+/- 20%mm | 0.368 mm |
| Identification | UL mark | YES | OK |
| Company Logo | YES | OK |
| Date code | WWYY | WWYY |
| Mark location | NA | / |
| Surface Finish | Lead- free HASL | 1-40 um | 5.9 um |
| Reliabilty Tests | Thermal shock test | 288±5ºC,10sec,
3 cycles | NO Discolor , NO
Delamination |
| solder abllity test | 245±5ºC | 100% wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.22% |
| Others | V-Cut thickness | 0.4±0.1 mm | 0.39mm |
| Angle | 30+/- 5 | 30º |
BichengPCB serves global customers from Shenzhen, China
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board
Comprehensive sales service presale, in sale and after sale
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
