Heavy Copper Board 3oz Single Sided PCB with 1.0mm Thick
| Price: |
US $ 0.45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1293R1.9 |
| Board Thick: |
1.02-1.05mm |
| Surface Finish: |
HASL Lead Free |
| Copper Thick: |
111.17mm(3 Oz) |
| Warp-Twist: |
0.15% |
| Legend Color: |
White |
| Solder Mask Color: |
Green |
| Min Line Width (Mil): |
12.2 Mil |
| Min Line Spacing (Mil): |
8.8 Mil |
| Forming: |
V-Cut |
| Electrical Test: |
100% PCB Passed |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
Product Description

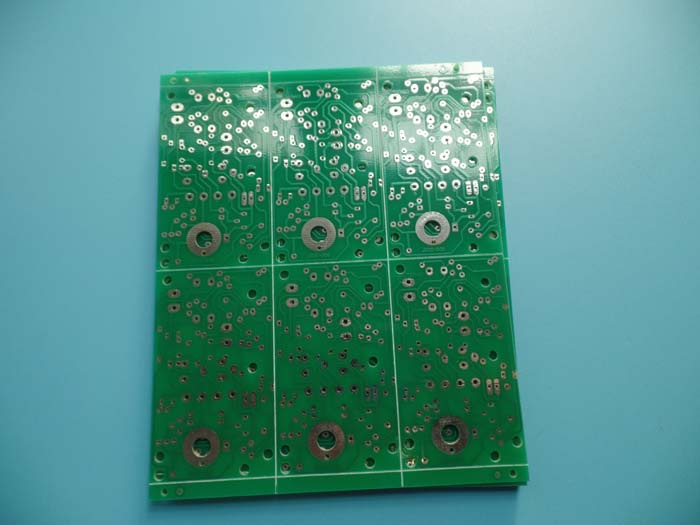

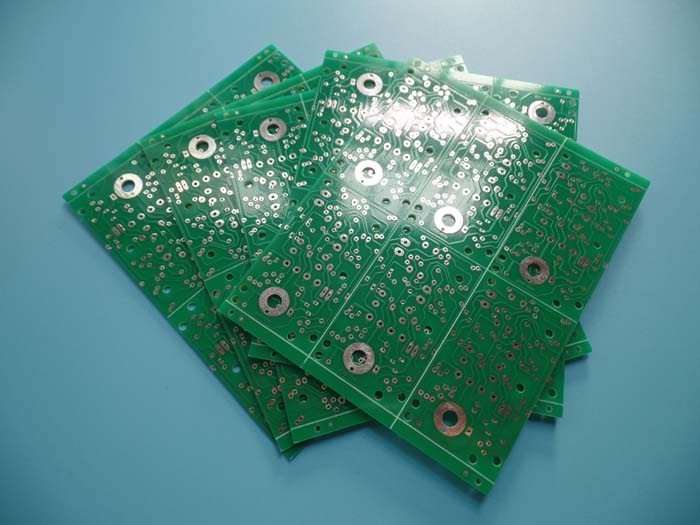

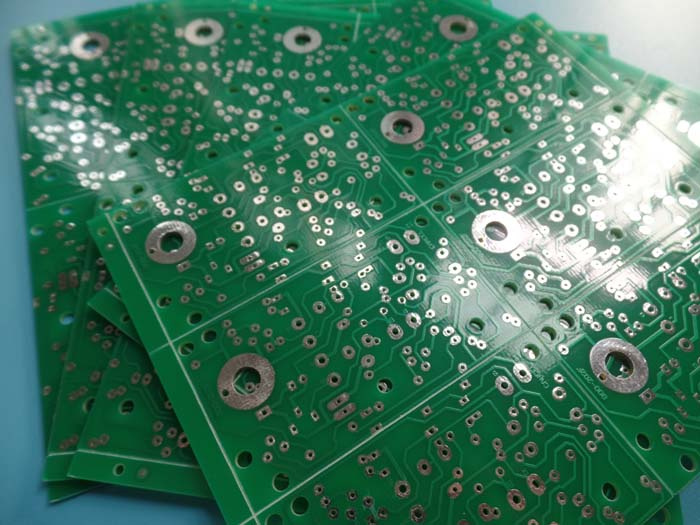

Heavy Copper board 3oz single sided PCB with 1.0mm thick for Green Solder mask
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a single layer board at 1.0mm thick.
The base laminate is from ITEQ, Solder mask from Taiyo. It's fabricated per IPC 6012 Class 2
using supplied Gerber data. Each 10 boards or panels are packed separately
.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 TG175 | FR-4 TG175 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.00±10% mm | 1.02-1.05 mm |
| Outer copper foil | >=105 um | 111.17 |
| Inner copper foil | / | / |
| Warp-twist | <= 0.75% | 0.15% |
| Legend | Supplier | KUANG SHUN | KUANG SHUN |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | 03 17 |
| Marking form | N/A | OK |
| Location | SS | SS |
| Min line width (mil) | 12 | 12.2 |
| Min line spacing (mil) | 9 | 8.8 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KUANG SHUN | KUANG SHUN |
| Color | Green | Green |
| Thickness | >=10 um | 14 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | HASL | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012B | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
MCPCB Capability
Metal core PCB's are thermal management circuit boards which use a base metal material as
the heat radiator part of the PCB. They are used in high heat generating application like LED
lighting in the area of high power LED lighting, Automotive Interior, Exterior Lighting, Parking
Garage Lighting, LED spot light etc. The metal core can be aluminum (aluminum core PCB)
and copper (copper core PCB). The most common used aluminum core PCB is the thermal
conductivity at 1W/MK and 2W/MK.| Metal Core Capability |
| NO. | Parameter | Value |
| 1 | Type of Metal Core | Aluminum, Copper, Iron |
| 2 | Model of Metal Core | A1100, A5052, A6061, A6063, C1100 |
| 3 | Surface Finish | HASL, Immersion Gold,
Immersion Silver, OSP |
| 4 | Thickness of Surface plating | HASL: Sn>2.54µm, ENIG: Au 0.025-0.1µm, Ni 2.5-5µm |
| 5 | Layer Count | 1-4 Layers |
| 6 | Maximum of Board Size | 23" x 46" (584mm×1168mm) |
| 7 | Mininum of Board Size | 0.1969" x 0.1969" (5mm×5mm) |
| 8 | Board Thickness | 0.0157" x 0.2362" (0.4-6.0mm) |
| 9 | Copper Thickness | 0.5 OZ(17.5 µm),1 OZ(3 5µm),
2OZ(70 µm),3 OZ(105 µm),
4OZ(140 µm) |
| 10 | Minimum Track Width | 5 mil (0.127mm) |
| 11 | Minimum Space | 5 mil (0.127mm) |
| 12 | Minimum Hole Size | 0.0197" (0.5mm) |
| 13 | Maximum Hole Size | No limit |
| 14 | Minimum Holes Punched | PCB thickness <1.0mm:
0.0394" (1.0mm) |
| PCB thikness 1.2-3.0mm: 0.0591" (1.5mm) |
| 15 | PTH Wall Thickness | >20µm |
| 16 | Tolerance of PTH | ±0.00295" (0.075mm) |
| 17 | Tolerance of NPTH | ±0.00197" (0.05mm) |
| 18 | Deviation of Hole Position | ±0.00394" (0.10mm) |
| 19 | Outline Tolerance | Routing: ±0.00394" (0.1mm) |
| Punching: ±0.00591" (0.15mm) |
| 20 | Angle of V-cut | 30°, 45°, 60° |
| 21 | V-cut Size | 0.1969" x 47.24" (5mm×1200mm) |
| 22 | Thickness of V-cut Board | 0.0236" x 0.1181" (0.6-3mm) |
| 23 | Tolerance of V-cut Angle | ±5º |
| 24 | V-CUT Verticality | ≤0.0059" (0.15mm) |
| 25 | Minimum Square Slots Punched | PCB thickness < 1.0mm:
0.0315" x 0.0315" (0.8 x 0.8mm) |
| PCB thickness 1.2-3.0mm: 0.0394" x 0.0394" (1.0 x 1.0mm) |
| 26 | Minimum BGA PAD | 0.01378" (0.35mm) |
| 27 | Minimum Width of Solder Mask Bridge. | 8mil (0.2032mm) |
| 28 | Minimum Thickness of Solder Mask | >13µm (0.013mm) |
| 29 | Insulation Resistance | 1012ΩNormal |
| 30 | Peel-off Strength | 2.2N/mm |
| 31 | Solder float | 260ºC 3min |
| 32 | E-test Voltage | 50-250V |
| 33 | Thermal Conductivity | 0.8-8W/M.K |
| 34 | Warp or Twist | ≤0.5% |
| 35 | Flammability | FV-0 |
| 36 | Minimum Height of Component indicator | 0.0059"(0.15mm) |
| 37 | Minimum Open Solder Mask on Pad | 0.000394" (0.01mm) |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

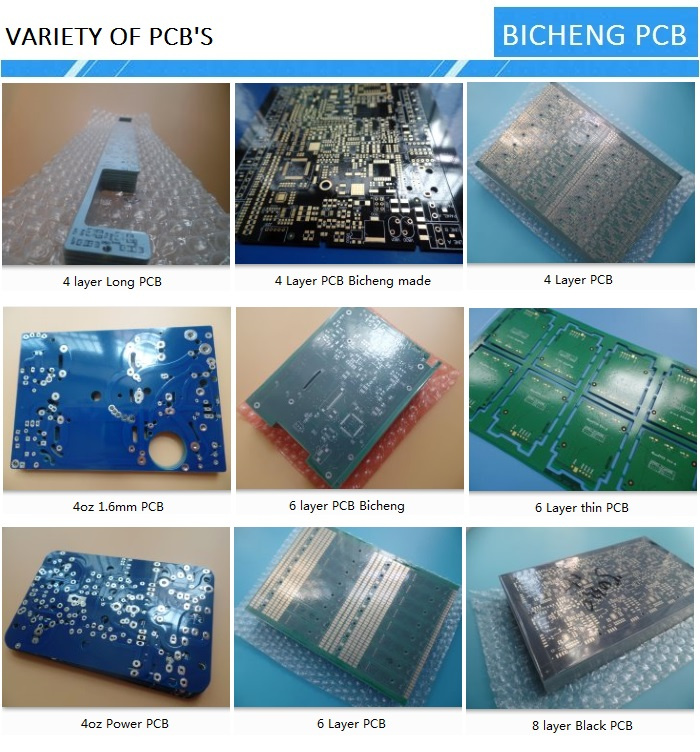

A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
