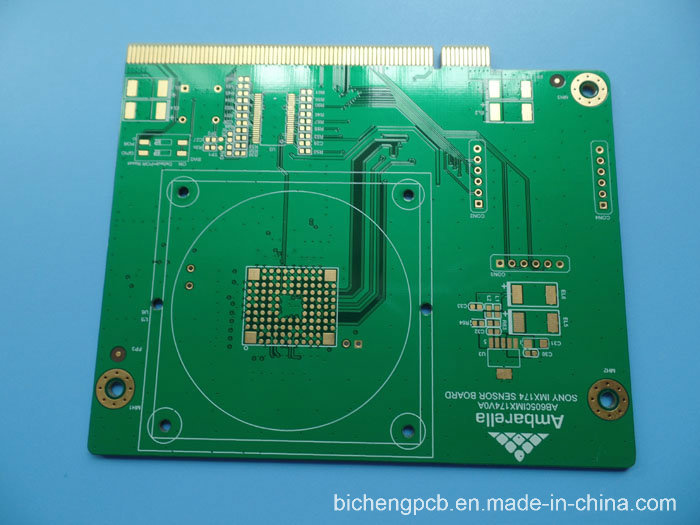

Heavy Copper PCB 8layer with Immersion Gold

Name: Heavy Copper PCB 8layer with Immersion Gold
Brand: all-electronics-online.com
SKU: 831703735
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	US $ 2.50/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-482.1757-V1.8
Final Foil External:	1oz
Final Height Of PCB:	1.6mm ±0.16
Surface Finish:	Immersion Gold
Solder Mask Color:	Gloss Green, Taiyo Psr-2000gt600d
Colour Of Component Legend:	White, Taiyo Ijr-4000 MW300
Minimum Trace And Space:	4mil/4mil
Minimum / Maximum Holes:	0.25/3.50mm

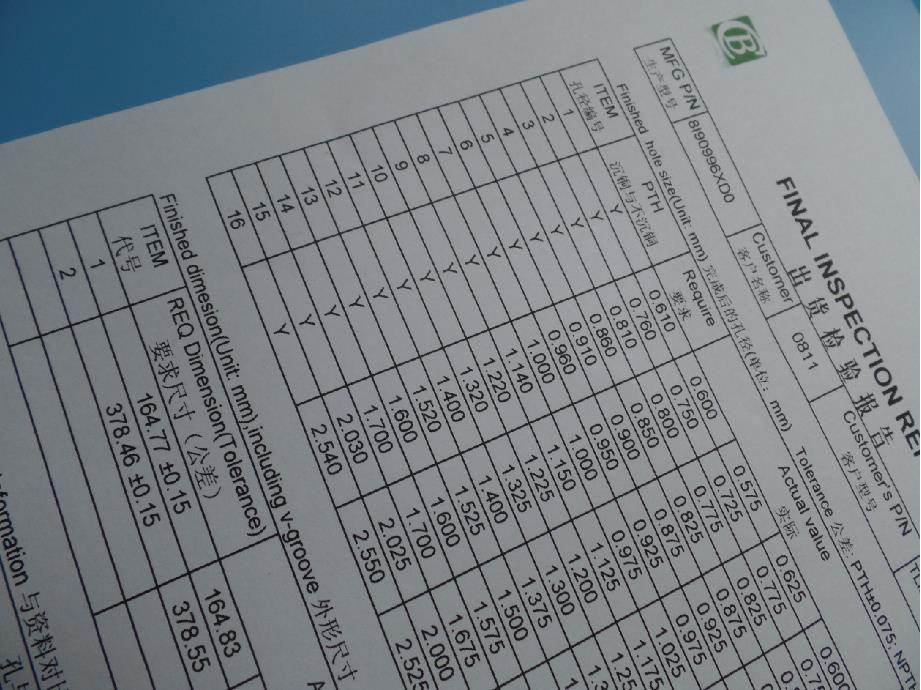

Test:	100% Electrical Test Prior Shipment
Board Plating:	0.0029"
Outline Dimension:	0.0059"
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Bicheng

Product Description

Company Profile
Bicheng Enterprise Limited which was founded in Shenzhen China in 2003 is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry. Our PCB products range from fiberglass PCB, high frequency PCB to metal core PCB and ceramic PCB's. This is a unique printed circuit board supplier and export enterprise. She has groups of skilled manufacturing facilities just like the experienced football players in the football field and every batch of shipment is like a beautiful gift transmitted to your hands.

PCB Board

Aluminum PCB

Microwave PCB

Flexible PCB

Standard specifications of RO4350B and RO4003C Substrate
RO4000 Series High Frequency Circuit Materials
Standard Thickness
RO4003C
0.008" (0.203mm)
0.012" (0.305mm)
0.016" (0.406mm)
0.020" (0.508mm)
0.032" (0.813mm)
0.060" (1.524mm)
RO4350B
0.0040" (0.101mm)
0.0066" (0.168mm)
0.010" (0.254mm)
0.0133" (0.338mm)
0.0166" (0.422mm)
0.020" (0.508mm)
0.030" (0.762mm)
0.060" (1.524mm)
Standard Panel Size
12" x 18" (305 x 457 mm)
24" x 18" (610 x 457 mm)
24" x 36" (610 x 915 mm)
48" x 36" (1.224m x 915 mm)
0.004"(0.101mm) material is not available in panel size larger than 24" x 18" (610 x 457 mm)
Standard Copper Cladding
1/2 oz(17µm) electrodeposited copper foil (0.5ED/0.5ED)
1 oz (35µm) electrodeposited copper foil (1ED/1ED)
2 oz (70µm) electrodeposited copper foil (2ED/2ED)

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

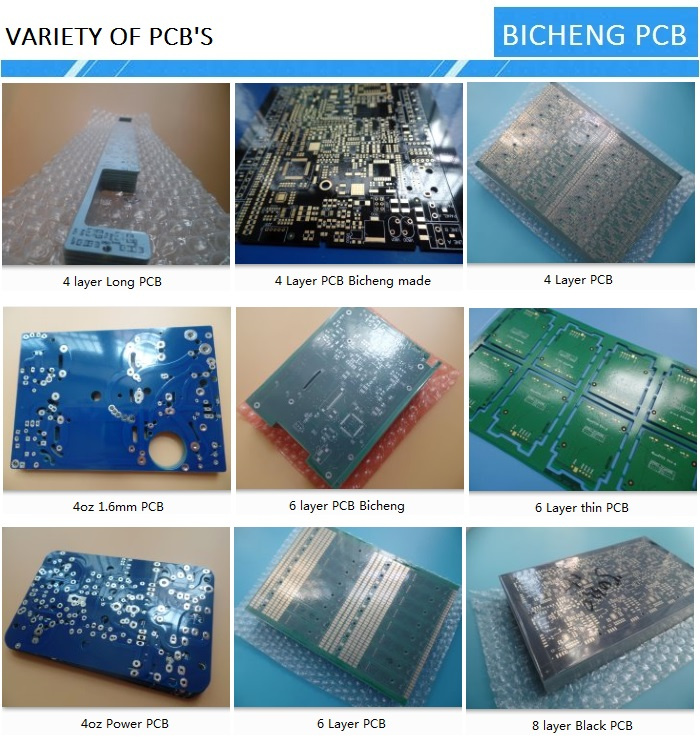

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

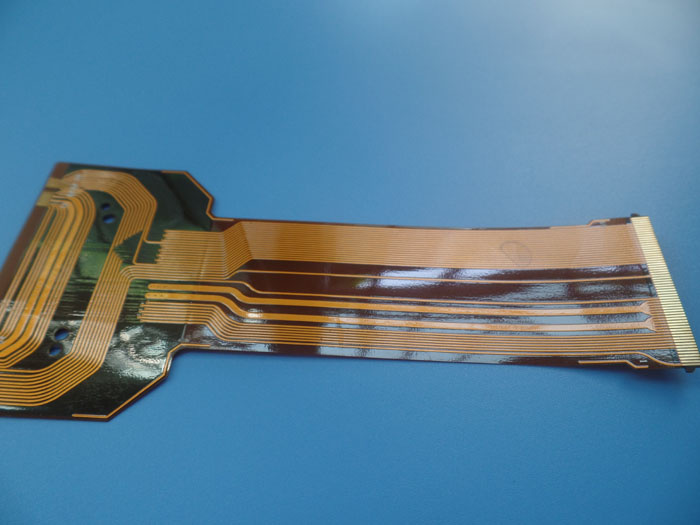

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

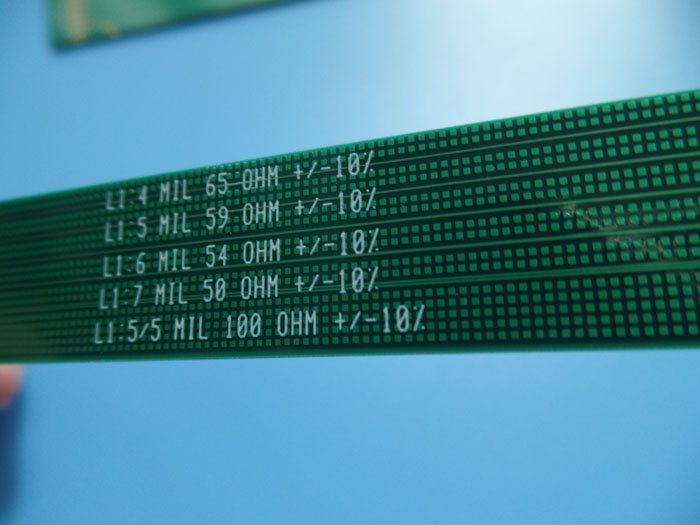

Impedance controlled PCB

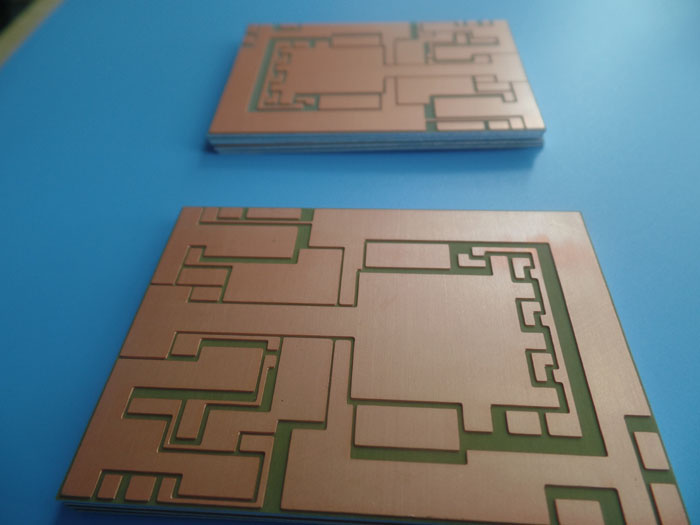

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
