Henan Dirk Wireless Remote Control F24-8d/Crane Radio Remote Control/Telecrane F24-8d
| Price: |
US $ 110-360/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
F24-8D |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
DC/AC12V,AC380V,AC110V,AC220V,DC/AC36V |
Product Description

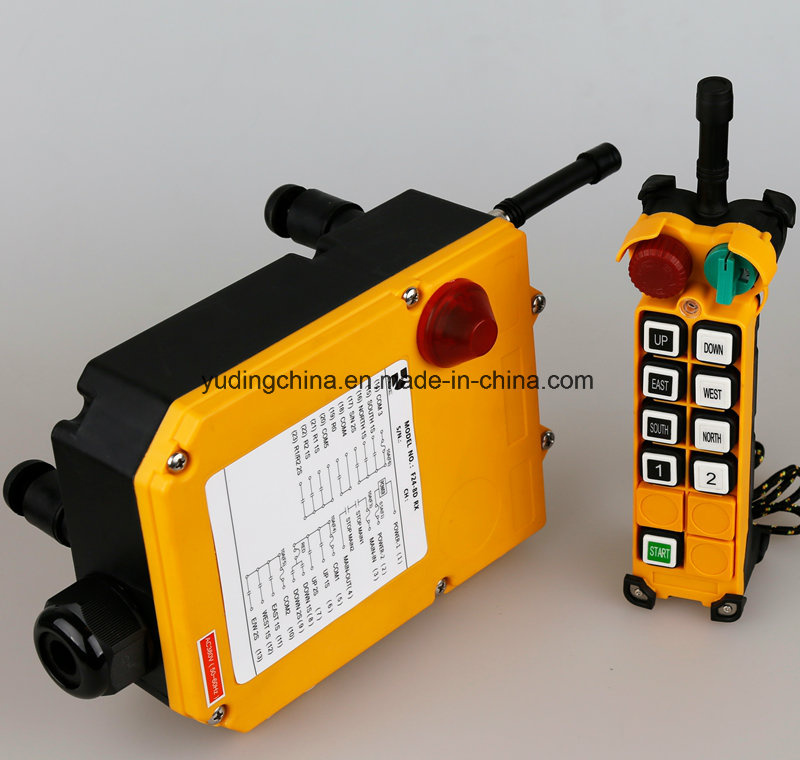

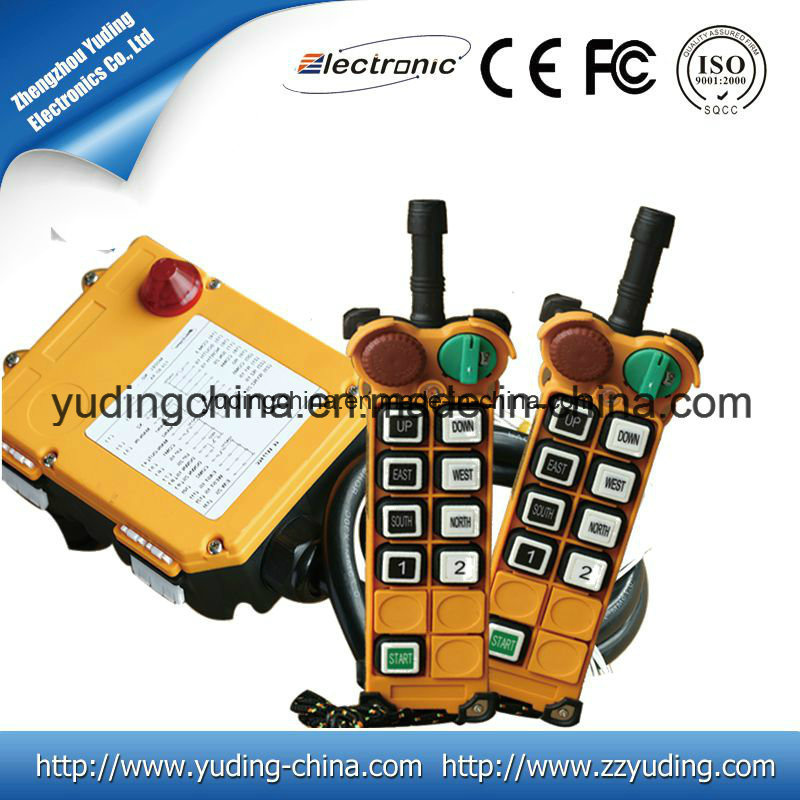

Henan Dirk wireless Remote Control F24-8D/Crane Radio Remote Control/Telecrane F24-8D
1. 8 Double speed button+Start +Emergency Stop Button+Rotary Switch, total 8 control motions.
2. 100m control distance.
3. Crystal Output
4. Mainly used on overhead crane, EOT Crane, bridge crane etc.Feature:*8 double speed push button+ one Start button+ one EMGS button + one ROTARY SWITCH
*control point up to 13
* Control distance: 100 meters
* Crystal output
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*four push button can be set mutual inhibition or not .
*Up ,Down ,East ,West can be set start ,close,speed up,jump strokes,ordinary etc.Specification: | model no. | F24-8D |
| number of buttons | 8double speed buttons+1start button+1mushroom button |
| transmitter size | 18.8*6.4*4.8cm |
| receiver size | 21.2*16.4*7.8cm |
| protection degreen | IP65 |
| housing material | Glass fiber-reinforced nylon |
| operating temperature | -35°C ~ +85°C(not take into battery into consideration) |
| security code | 43 billion |
| control distance | up to 100m (some of the products can reach to 200m) |
| frequency range | VHF:310.0325-331.165MHZ
UHF:425.5925-446.725MHZ |
| transmit power | <10dbm |
| receive sensitivity | >-110dbm |
| transmitter power | DC3V( need 2 pieces 1.5V battery , AA size) |
| receiver power | AC/DC18-65V , AC/DC65-440V |
| voltage warning | TX Red LED will flash slowly when the volts under 2.2V, unable to start TX under 1.8V |
| fault detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX RED LED will flash slowly:
1.Please change two new batteries. |
| security measures | if the receiver haven't receive the singal , transmitter
will retransmit same singal in 1.5s , if receiver still
haven receive it ,receiver power will turn off in 2s to
avoid unexpect things |

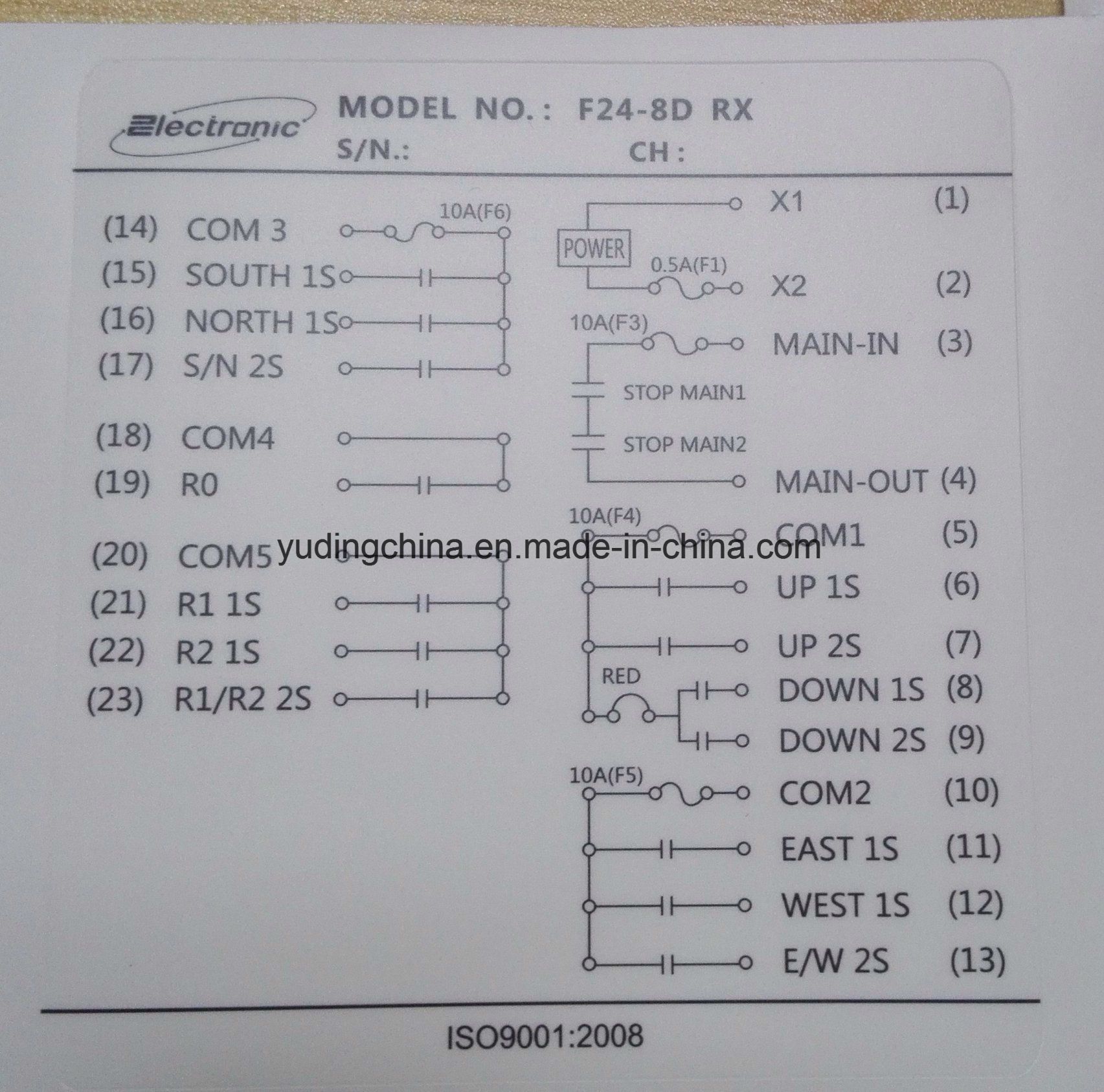

Connection Diagram:
Customized Product:

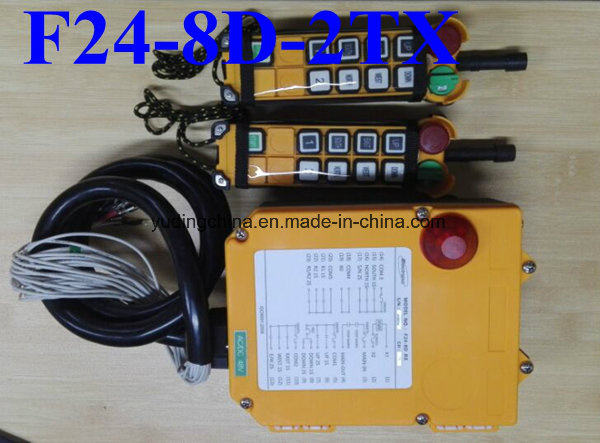

If you need two transmitter or only transmtter, please contact lily.
Package1 set per box size: 46X24.4X14.8CM
6 set per carton size: 76.3 X 50 X 34CMFAQ:Question 1: How to place order?
A: Pls contact Lily or send your question to lily's Lily will reply you within 24hours
Question 2: How to pay money?
A: T/T or Western Union are both ok
Question 3: What's the delivery time?
A: For sample, most specification in stock can be sent to you within 1 day,
2-7 working days for customized product or bulk order.
More question, pls contact lily
Question 4: How did you sent me?
A: Usaully by Express, such as DHL,FEDEX,TNT,UPS,etc
or acccording to your requirement.
Question 5: Is there any warranty?
A: Of course, for product, all of our product have 1 year warrant, also, technology support forever.
Question 6: Can i buy the controller parts?
A: Of course, any controller parts, pls contact lily, she will quote to you, such as fuse, dust bag, crystal, copier, etc.Company Information:Established in August, 2010,With more than 10 years experience on industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Yuding has many experts in the industrial radio remote controller area to assure workers safety and productivity , Yuding are becoming one of the leading companies in this industry in china.Welcome to send your question or information to lily all of your question will be reply within 12 hours
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
