Hfd Series MCCB Moulded Case Circuit Breaker

Name: Hfd Series MCCB Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 811539115
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	US $ 7.9-85.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HFD MCCB
Items:	Ns Moulded Case Circuit Breaker(MCCB)
Rated Current:	16A to 630A
Grade Quality:	A Grade
Warranty Time:	2 Years
Service:	OEM and ODM Service
Delivery Time:	2 Weeks
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CCC
Poles Number:	2p ,3p ,4p

Product Description

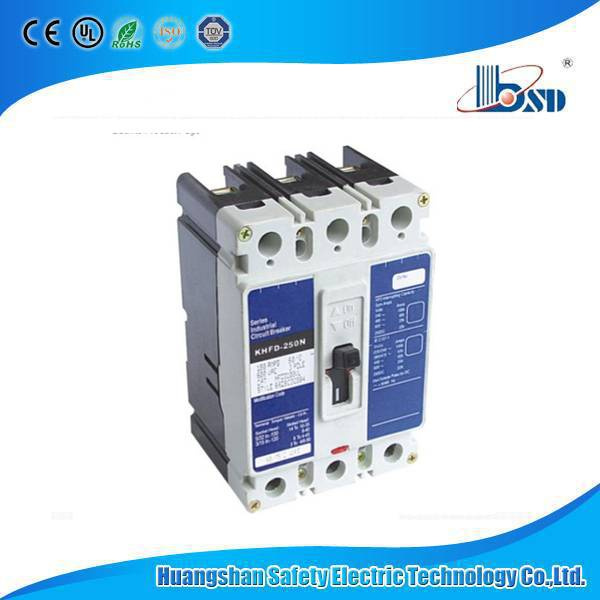

HFD Moulded Case Circuit Breaker
It's suitable for using in the circuit of AC 50HZ(or 60HZ,please make remarks when ordering)rated insulating voltage 750V,rated working voltage below 690V,and rated current is 16A to 630A for distributing electric energy,and infrequently OFF/ON under normal condition.

The intelligent MCCB,which the rated frame rank current 800A and below,also can be used for infrquently switching and starting of squirrel cage motor and for protecting motor from over-load,short circuit and under-voltage.

Technical Parameters

Description	Rated Current (A)	Rated Isoaltion Volage (V)	Breaking Capacity (kA)
1 Pole & 3 Pole	15	600	65
	20
	25
	30
	35
	40
	50
	70
	90
	100
	125
	150
	175
	200
	250
