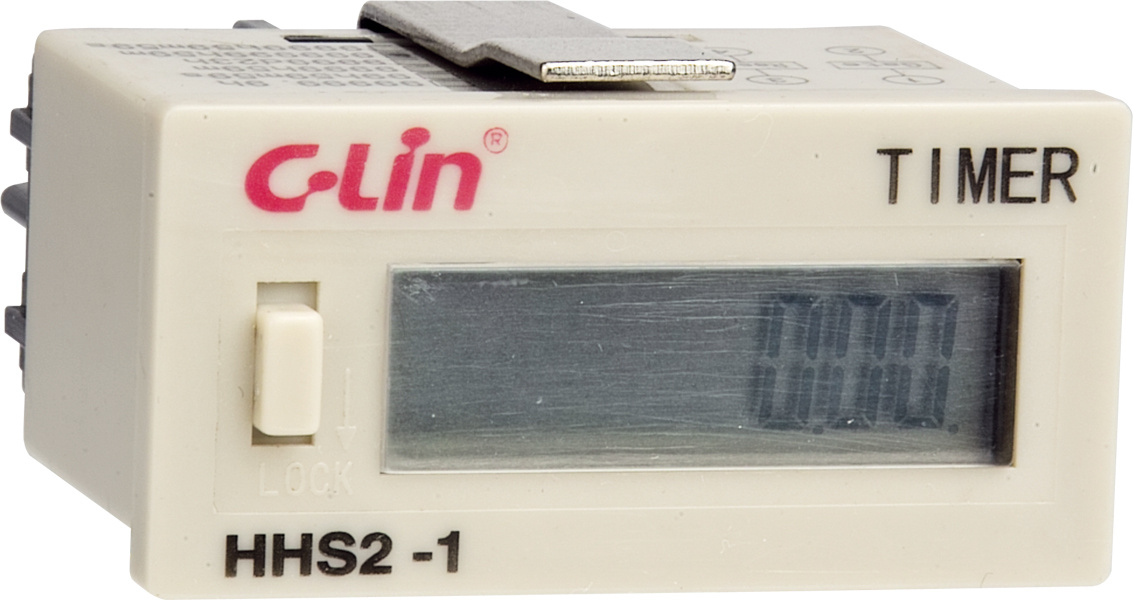

HHS2-1 (DHC3L) Time Counting Relay

Name: HHS2-1 (DHC3L) Time Counting Relay
Brand: all-electronics-online.com
SKU: 694701425
Availability: InStock
Rating: 5 (93 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHS2-1 (DHC3L)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Power:	Lithium Battery Inside
Counting Range:	99999.9h, 99h59m59s, 9999h59m, 9999d23h, 999999h59
Display Mode:	6/8 Bit Liquid Crystal Display
Power Off Memory:	6 Year
Control Mode:	Terminal1, 2 Connect, Counting Starts
Reset Mode:	Terminal 3, 4 Short Circuit or Button Reset
Outline Dimension:	244854mm
Mounting Dimension:	22*45mm
Mounting Mode:	Panel Mounting

Product Description

Time Relay/Time Counting Relay/Timers/Relay

HHS Series Time Relays are used as the delay component in the control circuit with 50/60Hz alternating current, 380V or below 380V rated voltage or 24V direct voltage. HHS Series Time Relays are not only characterized by the high time-delay precision and wide time delay range, but also possess two display modes: Increasing progressively display mode and decreasing progressively display mode. There are six working modes such as on-delay, off-delay, cycling-delay, star-delta starting-delay, release-delay working modes and so on. HHS Series Time Relays with a complete range of products and novel appearance, are widely used in the control circuit of industrial automation.

Mode	HHS2-1(DHC3L)Time Counting Relay/Time Relay/Timers/Relay
Working Power	Personal Power Supply (lithium battery inside)
Counting Range	99999.9h, 99h59m59s, 9999h59m, 9999d23h, 999999h59m, 9999h59m59s
Display Mode	6/8-bit LED display, addition counting
No-power Memory	6 years
Dimension	244854mm
Mounting Dimension	22*45mm
Mounting Mode	Panel mounting
