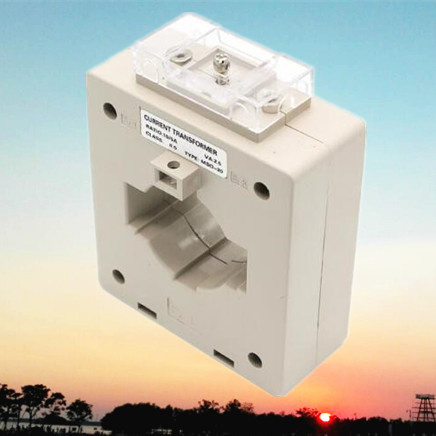

High Accruary Coil Structure 0.5kv Current Transformer CT (MSQ-30)

Name: High Accruary Coil Structure 0.5kv Current Transformer CT (MSQ-30)
Brand: all-electronics-online.com
SKU: 717611842
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 1.30-10/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-30
Rated Voltage:	660V

Product Description

Specifications

Primary current 30A-5000A
Secondary current 5A 1A
Class 0.5/1.0
0.72/3kv maximum voltage
CE certificate

MSQ current transformer series:

1. The MSQ series of current transfomer are convenient for mounting in many ways.
2. The most current transformer need the special mounting and the MSQ series used the mounting of DIN typing without a lot of time.
3. The protective cover for the terminal block used the switching device with safety and quick

MSQ tecnicial specifications:

Primary current: 5A-5000ASecondary current: 5A/1AStandard approval: IEC44-1/BS7626/VDE0414Maximum voltage: 0.72/3kvFrequency: 50/60HzRated load: 2.5VA/5VA/10VA/15VAClass: 0.5/1.0Short-time thermal current: Ith=60*IhRated security coefficient Fs<5

Type	Measuring range
MSQ-40	15/5A 20/5A 30/5A 40/5A 50/5A 15/1A 20/1A 30/1A 40/1A 50/1A 75/5A 100/5A 150/5A 200/5A 75/1A 100/1A 150/1A 200/1A 300/5A 400/5A 500/5A 600/5A 300/1A 400/1A 500/1A 600/1A
MSQ-40	100A/5 150A/5 200A/5 250A/5 100A/1A 150A/1A 200A/1A250A/1A 300A/5 400A/5 500A/5 600A/5 300A/1A 400A/1A 500A/1A 600A/1A
MSQ-50	200A/5 250A/5 400A/5 200A/1A 250A/1A 400A/1A
MSQ-50	500A/5 600A/5 800A/5 500A/1A 600A/1A 800A/1A
MSQ-60	400A/5 500A/5 400A/1A 500A/1A
	600A/5 800A/5 600A/1A 800A/1A
	1000A/5 1200A/5 1000A/1A 1200A/1A
MSQ-80	600A/5 800A/5 1000A/5 600A/1A 800A/1A 1000A/1A
	1200A/5 1500A/5 1600A/5 1200A/1A 1500A/1A 1600A/1A
	2000A/5 2500A/5 2000A/1A 2500A/1A
MSQ-100	800A/5 1000A/5 800A/1A 1000A/1A
	1000A/5 1200A/5 1500A/5 1000A/1A 1200A/1A 1500A/1A
	1600A/5 2000A/5 2500A/5 1600A/1A 2000A/1A 2500A/1A
	3000A/5 3000A/1A
MSQ-125	2000A/5 2500A/5 3000A/5 2000A/1A 2500A/1A 3000A/1A
MSQ-125	4000A/5 5000A/5 4000A/1A 5000A/1A
