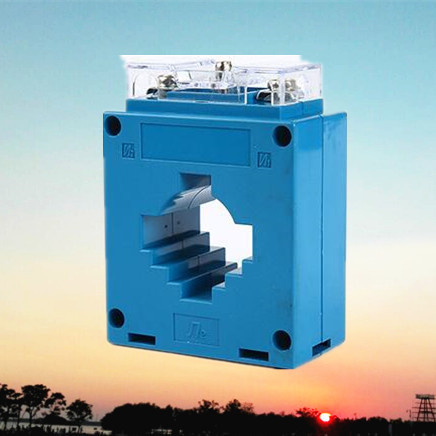

High Accruary Coil Structure Transformer Current CT (MSQ-40)

Name: High Accruary Coil Structure Transformer Current CT (MSQ-40)
Brand: all-electronics-online.com
SKU: 717630652
Availability: InStock
Rating: 5 (31 reviews)

Price:	US $ 1.50-12.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

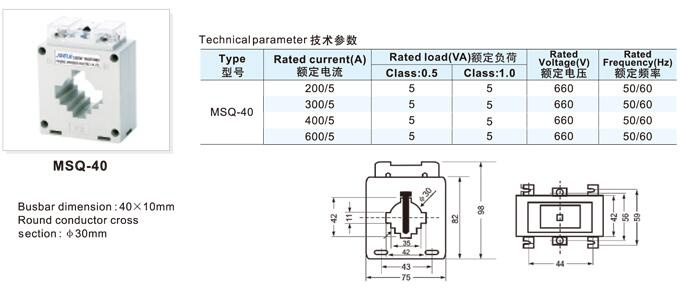

Prod Model:	MSQ-40
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single
Magnetic Circuit Structure:	Circular

Product Description

Technical parameter

Primary current	5A-5000A
Secondary current	5A,1A
Maximum voltage	0.72KV
Continuous operating current	1.2×In
Test voltage per minute	3KV
Rated security coefficient	Fs <5
Frequency	50/60HZ
Thermal rated Current	1th-100×In
Rated Load	1-30VA

Type	Measuring range
MSQ-30	15/5A 20/5A 30/5A 40/5A 50/5A 15/1A 20/1A 30/1A 40/1A 50/1A 75/5A 100/5A 150/5A 200/5A 75/1A 100/1A 150/1A 200/1A 300/5A 400/5A 500/5A 600/5A 300/1A 400/1A 500/1A 600/1A
MSQ-40	100A/5 150A/5 200A/5 250A/5 100A/1A 150A/1A 200A/1A250A/1A 300A/5 400A/5 500A/5 600A/5 300A/1A 400A/1A 500A/1A 600A/1A
MSQ-50	200A/5 250A/5 400A/5 200A/1A 250A/1A 400A/1A
MSQ-50	500A/5 600A/5 800A/5 500A/1A 600A/1A 800A/1A
MSQ-60	400A/5 500A/5 400A/1A 500A/1A
	600A/5 800A/5 600A/1A 800A/1A
	1000A/5 1200A/5 1000A/1A 1200A/1A
MSQ-80	600A/5 800A/5 1000A/5 600A/1A 800A/1A 1000A/1A
	1200A/5 1500A/5 1600A/5 1200A/1A 1500A/1A 1600A/1A
	2000A/5 2500A/5 2000A/1A 2500A/1A
MSQ-100	800A/5 1000A/5 800A/1A 1000A/1A
	1000A/5 1200A/5 1500A/5 1000A/1A 1200A/1A 1500A/1A
	1600A/5 2000A/5 2500A/5 1600A/1A 2000A/1A 2500A/1A
	3000A/5 3000A/1A
MSQ-125	2000A/5 2500A/5 3000A/5 2000A/1A 2500A/1A 3000A/1A
MSQ-125	4000A/5 5000A/5 4000A/1A 5000A/1A
