High Accuracy Compression Through Hole Bolt Load Cell

Name: High Accuracy Compression Through Hole Bolt Load Cell
Brand: all-electronics-online.com
SKU: 680909051
Availability: InStock
Rating: 4.3 (125 reviews)

Price:	US $ 150/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-62B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Pancake Load Cell
Capacity:	1t
Safe Overload:	Fs% 120
Ultimate Overload:	Fs% 150
Pattern:	Pancake Load Cell

Product Description

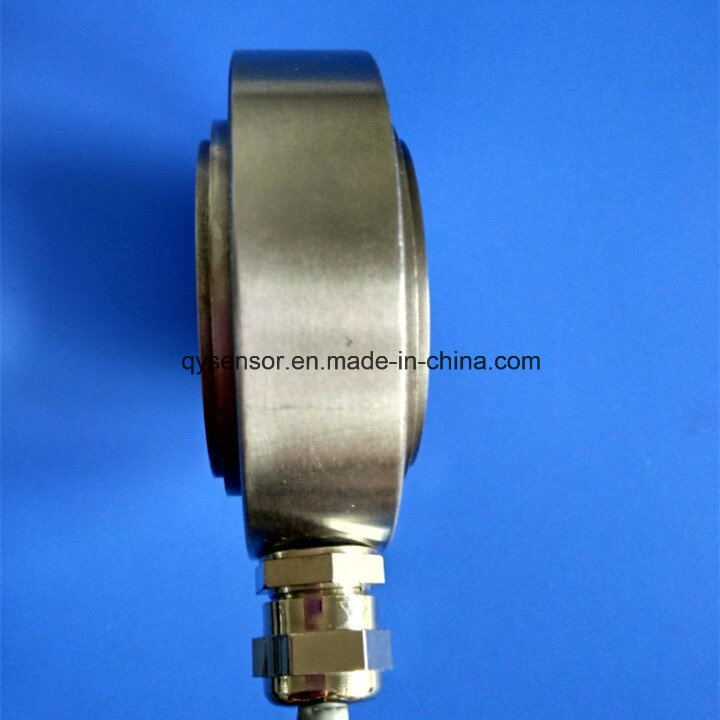

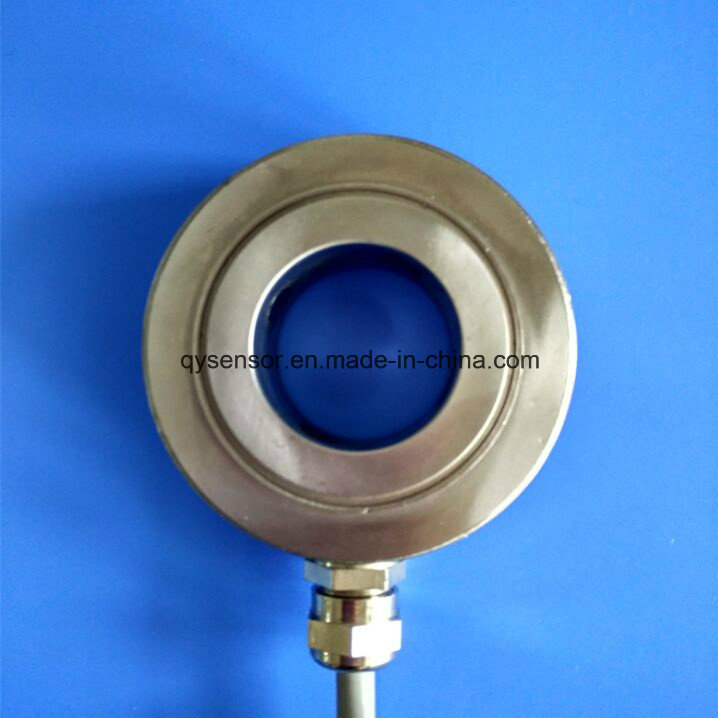

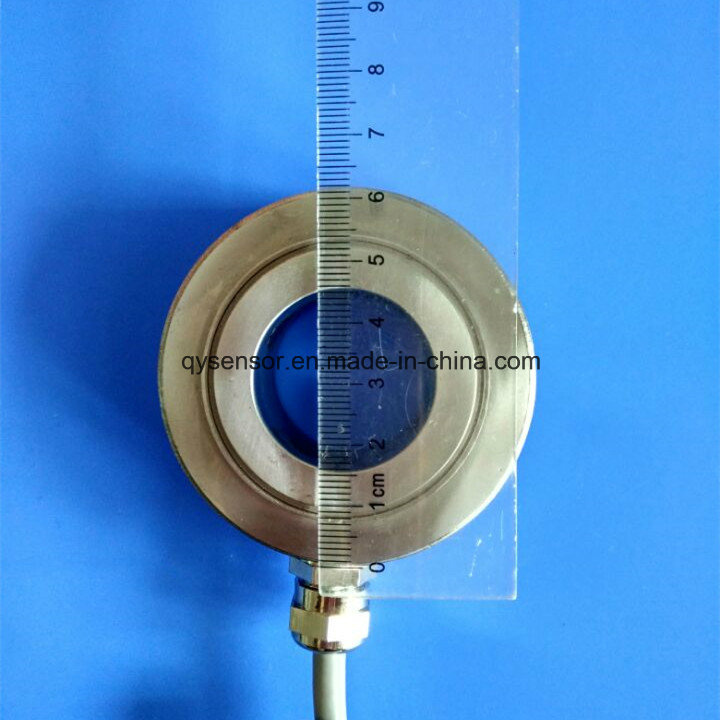

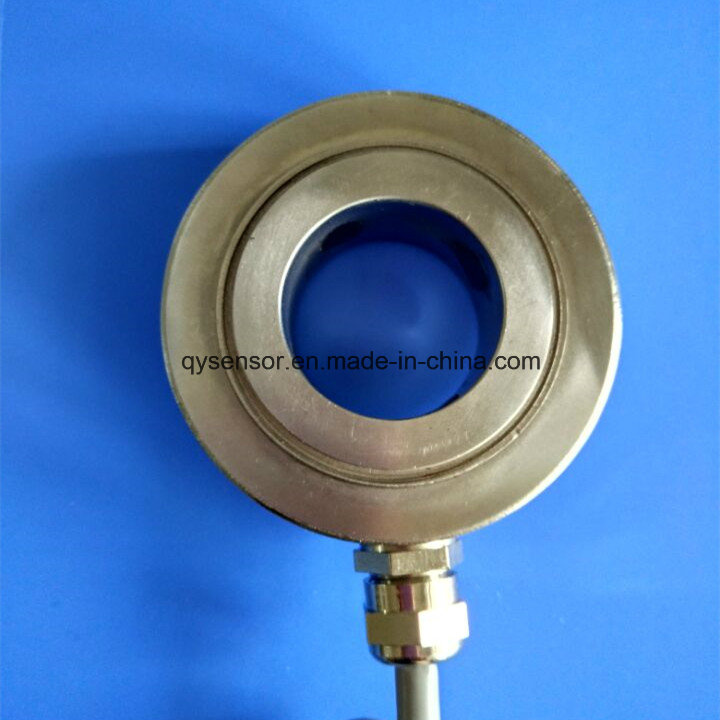

High Accuracy Compression Through Hole Bolt Load Cell

Product Discription:

QH-62B load cells are available in the capacities from 1t to 5t.
Alloy steel or aluminum alloy construction with spoke type.
Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.
Suitable for construction engneering,constructional compression force and other electronic weighing devices.

Features:

Capacity: 2~5t.
Defend grade: IP66 & IP68.

Reliable performance,integral installation and easy installation.

Size can be customized.

Technical Specifications:

Specifications:
Capacity	t	2~5
Safe overload	%FS	120
Ultimate overload	%FS	150
Rated output	mV/V	2 ± 0.02
Excitation voltage	Vdc	10~15
Combined error	%FS	± 0.05	±0.1
Zero unbalance	%FS	± 1
Non-linearity	%FS	± 0.05	± 0.1
Hysteresis	%FS	± 0.05	± 0.1
Repeatability	%FS	± 0.03	± 0.05
Creep	%FS/30min	± 0.05	± 0.05
Input resistance	Ω	760 ± 30
Output resistance	Ω	701 ± 5
Insulation resistance	M Ω	≥ 5000 @ 50 Vdc
Operating temperature range	ºC	-20 ~ +70
Compensated temperature range	ºC	-10 ~ +40
Temperature coefficient of SPAN	%FS/10ºC	± 0.03	± 0.03
Temperature coefficient of ZERO	%FS/10ºC	± 0.02	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :5.8mm
Cable length:15m
The cable length could be chose by customer's application.

Welcome your visit and customize !

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
