| Prod Model: |
MPM416W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
0~1...200m |
| Consructiontype: |
Split Type Level Transmitter |
| Accuray: |
0.25%Fs (Typ.) |
| Output Type: |
Ma or Mv |
| Keywords: |
High Accuracy Level Transmitter |
| Size: |
Compact |
| Housing: |
Stainless Steel |
| Output: |
4~20madc |
| Theory: |
Piezresistive |
| Storage Temperature: |
-40~100c |
Product Description

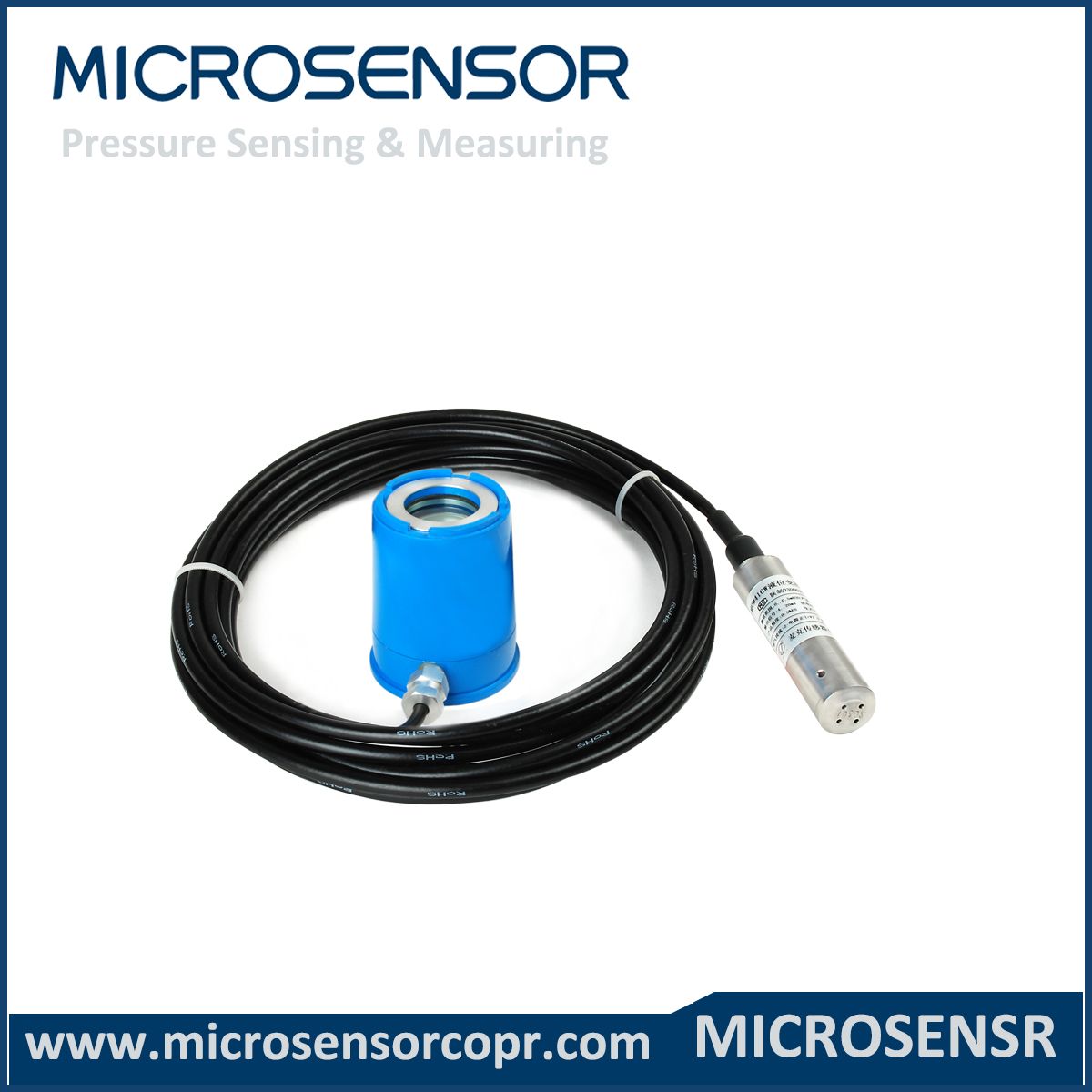

High Accuracy Level Transmitter MPM416W
Features:
1. Stainless steel
2. Submersible
3. Full sealed
4. IP68
5. CE
6. High accuracy
7. Stable
8. Intrinsic safe
Application:
1. Oil
2. Chemical
3. Power plant
4. Urban water supply
5. Hydrology exploration
Specification:| Pressure range |
MPM416W |
1, 2, 5, 10, 20, 50, 100, 200mH2O |
MPM416WK |
1, 2, 3, 4mH2O |
MPM416WRK |
1, 2, 5, 10, 20mH2O |
| Overpressure |
1.5times FS |
| Accuracy |
+0.25%FS(typ. ) +0.5%FS(max. ) |
| Stability error |
+0.1%FS(typ. ) +0.2%FS(max. ) pressure range> 20mH2O |
+10mmH2O(typ. ) +20mmH2O(max. ) pressure range≤ 20mH2O |
+20mmH2O(typ. ) +30mmH2O(max. ) only for MPM416WRK |
| Temp. drift |
| Zero drift, + %FS/º C |
Sensitivitydrift, +%FS/º C |
Rang> 10mH2O | 0.005(typ. ) | 0.01(max. ) |
0.02(max. ) |
| Range ≤ 10mH2O | 0.01(typ. ) | 0.02(max. ) | 0.02(max. ) |
Range ≤ 5mH2O | 0.015(typ. ) | 0.03(max. ) | 0.02(max. ) |
Range ≤ 2mH2O | 0.025(typ. ) | 0.05(max. ) | 0.02(max. ) |
| Transmitting | 2-wire | 3-wire | 3-wire |
| Power supply | 15~30VDC(Intrinsic safe version is supplied through safe barrier) | 15~28VDC | 15~28VDC |
| Output signal | 4~20mADC | 0~10/20mADC | 0/1~5/10VDC |
| Load(Ω ) | < (U-15)/0.02A | < ( U-15)/0.02A | > 5k |
| Material contacting with media | MPM416W |
Housing: stainless steel 1Cr18Ni9Ti |
O-ring: Viton |
Diaphragm: stainless steel 316L |
Rubber casing: NBR |
Cable: Φ 7.2mm PVC/Polyurethane cable with vented tube |
| MPM416WK |
Stainless steel 1Cr18Ni9Ti, red copper, Viton O-ring |
| MPM416WRK |
Stainless steel 1Cr18Ni9Ti |
| Operation temp. | -10º C~80º C, Intrinsic safe version: -10~70 º C |
| Storage temp. | -40 º C~100 º C |
| Protection | IP68(sensor part), IP65(wiring part) |
| Ex-proof class | ExiaIICT6 |
Outline Construction:
Order GuideMPM416W | Submersible Level Transmitter |
MPM416WK | Armoured Level Transmitter |
MPM416WRK | Flexible Armoured Level Transmitter |
| | range(mH2O) | [0~X mH2O]L | L: cable length, suggested: L-X=(1~2)m | MPM416W |
L: armoured tube length | MPM416WK |
L: flexible armoured tube length | MPM416WRK |
| | | Code | Output signal |
E | 4~20mADC |
F | 1~5VDC |
J | 0~5VDC |
Q | 0~10mADC |
U | 0~20mADC |
V | 0~10VDC |
| | | | Code | Construction material |
| diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | SS |
| 24 | SS 316L | SS 316L | SS 316L |
| 25 | Tantalum | SS | SS |
| | | | Code | Others |
| M1 | 0~100% hand pointer indicator (MPM416WRK has no this option) |
| i | Intrinsic safe version ExiaCT6 |
| C1 | M20×1.5 male, face type seal | MPM416W |
| C3 | G1/2 male |
| C5 | M20×1.5 male, waterline seal |
| T | Ship-use |
| F1 | Fixed flange(MPM416WK has no this option) |
| 1F1 | Stainless steel flange 1 DN50 | MPM416WK |
| 1M1 | Stainless steel male M42×1.5 |
| 1F2 | Stainless steel flange 2 DN10 |
| 1M2 | Stainless steel male M30×1.5 |
| 2F1 | Carbon steel plating zinc flange 1 DN50 |
| 2M1 | Carbon steel plating zinc male M42×1.5 |
| 2F2 | Carbon steel plating zinc flange 2 DN10 |
| 2M2 | Carbon steel plating zinc male M30×1.5 |
| | | | | | | | |
MPM416W [0~3mH2O]5 E 22 iC1 the whole spec |
