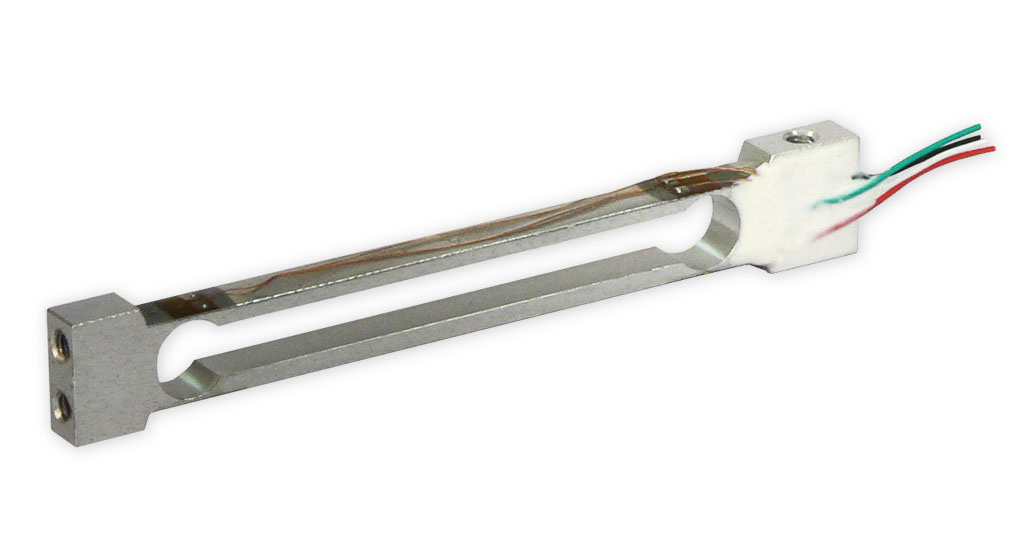

High Accuracy Ql-51 Miniature Sensor Load Cell

Name: High Accuracy Ql-51 Miniature Sensor Load Cell
Brand: all-electronics-online.com
SKU: 773902885
Availability: InStock
Rating: 4.4 (40 reviews)

Price:	US $ 12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-51
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Defend Grade IP65:	Capacity 20~100g

Product Description

QL-51 miniature sensor are available in the capacities from 20g to 100g. Aluminum-alloy construction with parallel beam type, silicon adhesive sealed, surface anodized and anti-corrosion. Integral structure and easy installation. Suitable for electronic balance and other high accuracy electronic weighing devices.

Features:

1.Capacity :20g to 100g

2.Defend grade: IP65

3High accuracy,parallel beam type,reliable performance.

4.Integral structure and easy installation.

5.Recommended platform size:50x50mm

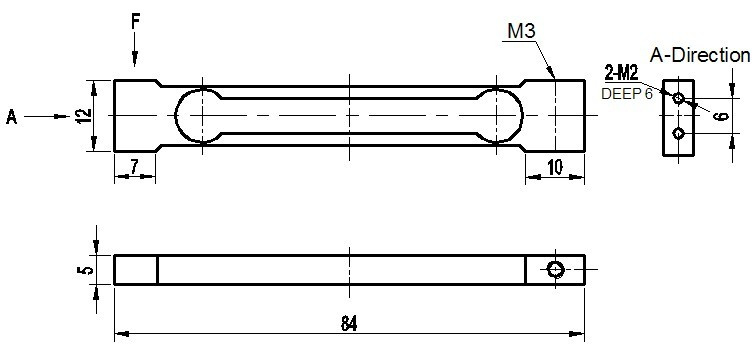

Electrical connection and Dimensions:(dimension unit:mm)

Technical Specifications

Specifications:
capacity	g	20, 30, 50, 100
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	0.5±0.15
excitation voltage	Vdc	≤6
combined error	%FS	± 0.05
zero unbalance	mV/V	± 0.5
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.05
repeatability	%FS	± 0.05
creep	%FS/3min	± 0.05
input resistance	Ω	1055 ± 40
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 2000 @ 50 Vdc
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 2.0
temperature coefficient of ZERO	%FS/10°C	± 0.05

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four -color one line
Cable length:120mm.

Ordering code: model-range- rated output-accuracy-defend grade- the length of cable

Example: QL-51-100g-0.5mV/V-0.05%FS-120mm

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
