High Accurate Compact Mpm489wz1 Level Transmitter

Name: High Accurate Compact Mpm489wz1 Level Transmitter
Brand: all-electronics-online.com
SKU: 741185375
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM4730
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diaphragm:	Ss316L
Range:	-0.1...0~0.01...100MPa
RS485:	Intelligent
Output:	Digital Sensor
Accuracy:	0.15%Fs (Typ.)
Usage:	Processing Pressure Measurement
Theory:	Gas or Liquid Pressure Measurement
Certificates:	RoHS Exia
Keywords:	2-Wire Digital Pressure Transmitter
Wiring:	2-Wire

Product Description

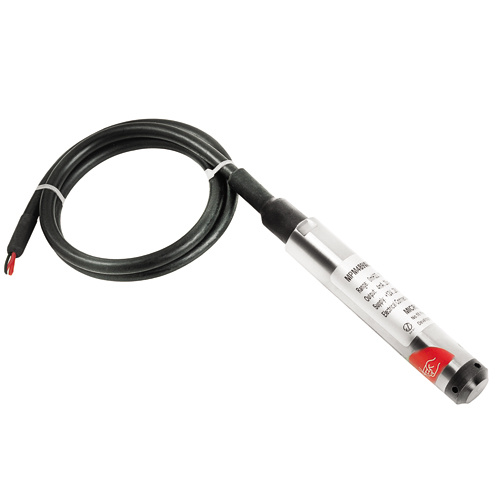

High Accurate Compact MPM489WZ1 Level Transmitter

Brief Introduction

MPM489WZ1 piezoresistive level transmitter is full-sealed submersible level measurement instrument. A high stable and dependable sensor is mounted with the transmitter special PCB in a stainless steel housing. The integration construction and the standard output signal support worksite operation and automatic controlling facilities. The stainless steel cap on the top of the transmitter protects the steel diaphragm of the transducer, yet allows the water free access to it. The waterproof cable sealed tightly to the housing. The reference tube is in the cable. The housing protection is IP68, and the transmitter is available for long-term submersible operation.

MPM489WZ1 piezoresistive level transmitter has advantages of small size, light weight and long-term stability; it can be applied to measure and control in field of petroleum, chemi-industry, medicine, metallurgy, power station, mine, city water supply, drainage and hydrology survey, etc.
To be convenient for worksite local installation and observation, the connection box and indicator could be assembled according to customers' option.

Specification

·Range(FS): 20 50 100 200mH₂O
·Over-pressure: 1.5 times FS
·Accuracy Error: 0.5%FS
·Stability Error:   Range > 20mH₂O   0.2%FS/year
Range ≤ 20mH₂O   20mmH₂O/year
Temperature Drift:            Zero Drift          FS Drift
Range > 10mH₂O     0.02%FS/ºC       0.05%FS/ºC
Range ≤ 10mH₂O     0.05%FS/ºC       0.05%FS/ºC
Operation Temperature: -10ºC~+80ºC
Storage Temperature:    - 40ºC~+100ºC
Power Supply Voltage:   12~28VDC
Signal Output:           4~20mADC (2-wire)
Load(Ω):                R_L≤ (U-12)/0.02(U is power supply voltage)

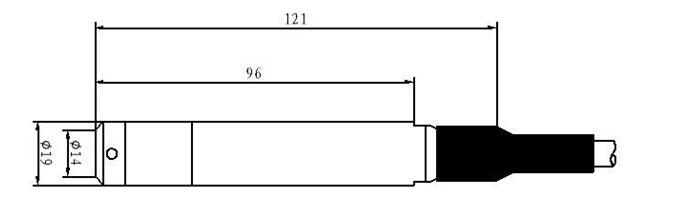

Outline
