High Accurate Piezoresistive Pressure Sensor (MPM281)

Name: High Accurate Piezoresistive Pressure Sensor (MPM281)
Brand: all-electronics-online.com
SKU: 741157315
Availability: InStock
Rating: 5 (119 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,FCA,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM281
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0-200kpa...70MPa
Output:	Analog
Diaphragm:	Ss316L
Key Words:	High Accuracy Pressure Sensor
Usage:	Processing Pressure Measurement
Theory:	Pizoresistive Sensor
Housing:	Ss316L
Media Temperature:	35 C
Basic Temperature:	50% Rh
Shock:	100g, 11ms
Measuring Medium:	Gases and Liquids

Product Description

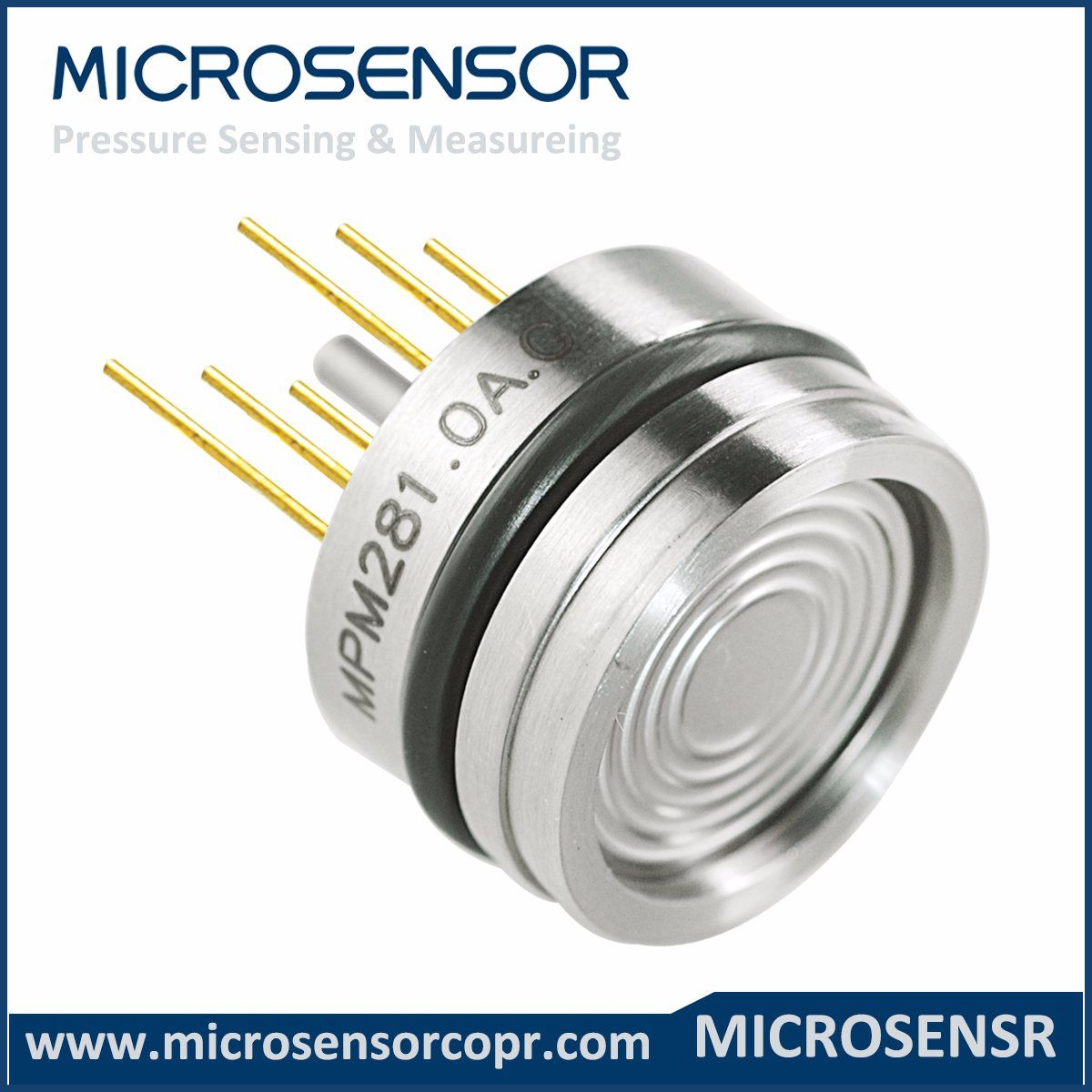

MPM281 Piezoresistive High Accuracy Pressure Sensor

Features:
1.      For flow media
2.      Long term stable
3.      Optional gauge, absolute gauge, sealed gauge
4.      Compact, Φ19mm

Applications:
1.      For industry
2.      For level measurement
3.      For liquid
4.      For gas
5.      For pressure calibration

Our main products:
1.      MPM281 piezoresistive OEM pressure sensor
2.      MDM490 Piezo-resistive differential pressure transmitter
3.      MPM489 piezo-resistive pressure transducer

Micro sensor has its own R&D team, able to offer customers professional service with unique requirements. If you are interested in that ,just contact us

Basic Specification:

Specification*	Min.	Typ.	Max.	Units
Linearity		±0.2	±0.25	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2	mVDC
FS output	70			mVDC
Zero thermal error		±0.75	±1.0	%FS,@35ºC
Span thermal error		±0.75	±1.0	%FS,@35ºC
Compensated temp. range	-10~80			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Stability error		±0.1	±0.2	%FS/year
*testing at basic condition

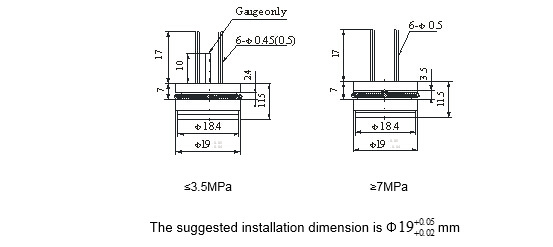

Outline Construction:

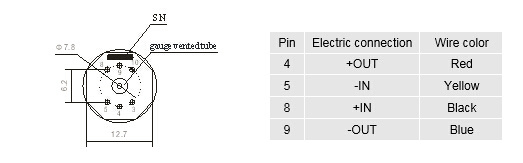

Electric Connection:

Order Information:

MPM281

High Stable Piezoresistive OEM Pressure Sensor

Range code

Pressure range (kPa)

Ref.

Range code

Pressure range (MPa)

Ref.

0~7

0~1

G.A

0~20

0~2

G.A

0~35

0~3.5

G.A.S

0~70

0~7

0~100

0~10

0~200

G.A

0~20

0~350

G.A

0~35

0~700

G.A

0~70

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Temperature compensation

Laser trimming

Outer compensated resistor

Code

Electric connection

Φ0.5mm Kovar pins

4-color 100mm flexible rubber wire

Code

Special measurement

Gauge sensor to measure vacuum

MPM281 07 G 0 L 1 Y the whole spec

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
