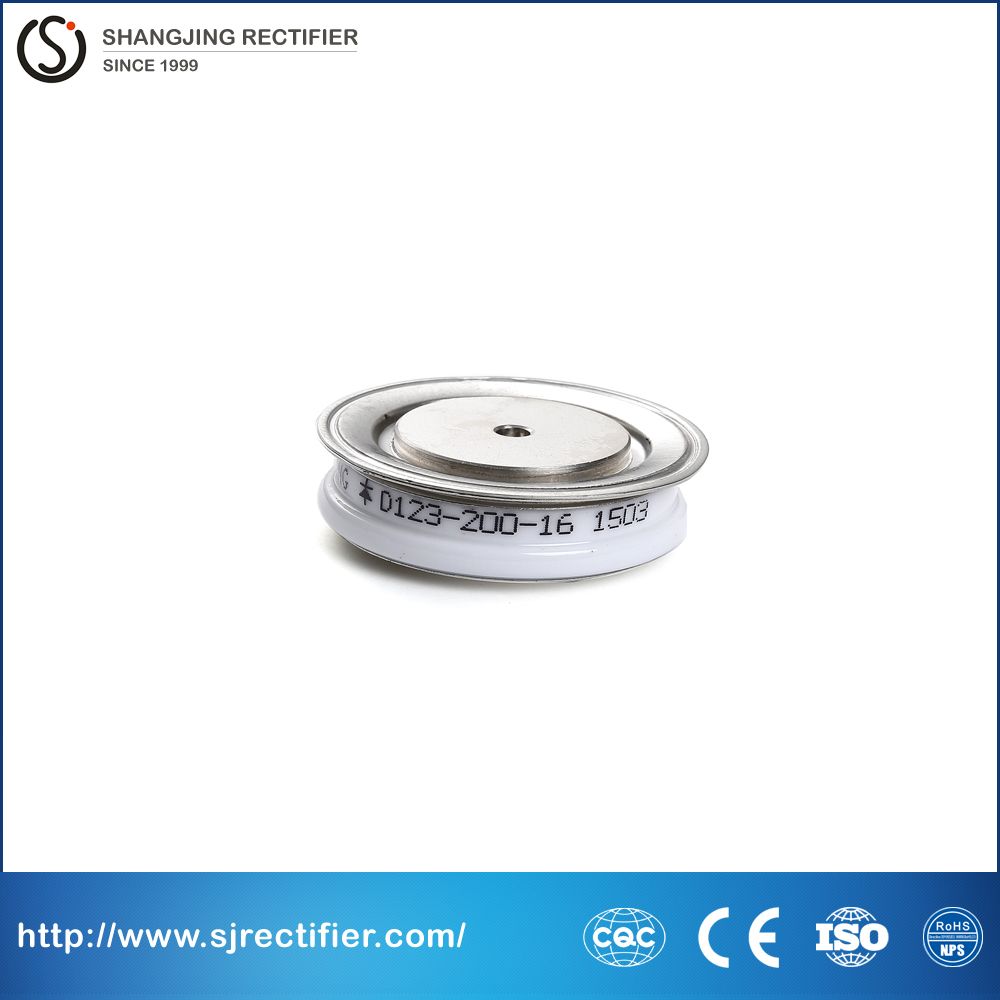

Prod Model:	D123-200-16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	1600V
Irrm:	35mA
If(AV):	200A
Vfm:	2.5V
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Ceramic Disc Type Seal
Application:	Phase Control Rectification ,Inverter, Welder
Model:	D123-530
Batch Number:	2016+
Brand:	Shangjng

Product Description

Features
All diffuse techinics
Ceramic disc type seal
Middle trigger
Bi-facial cooled
High current

Typical Applications
Big power transformer
AC & DC motor control
AC & DC switch
Phase control rectification
Inverter
Welder

Explanation
IGT, VGT, IH are all TA=25° C test data, others are all TA=Tjm test data.
I2t=I2TSM× TW/2: TW=Half sine wave current, when at 50Hz, I2t=0.005I2TSM(A2S)

When at 60Hz, ITSM(8.3ms)=ITSM(10ms)× 1.066, Tj=Tjm I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm

Type	V_RRM	I_RRM	I_F(AV)	I_F(RMS)	I_FSM	V_FM/I_FM	T_j	R_jc	M2	Wt	Outline
			Tc55° C	Tc70° C	10ms	25° C
	V	mA	A	A	kA	V/A	° C	° C/W	kN	kg
D123-200	400-3000	35	200	435	3.0	2.50/628	-40 ~ +150	0.08	6	0.091	RC1 RC2
D123-250	400-3000	35	250	550	3.5	2.35/785		0.08	6	0.091
D123-320	400-3000	35	320	650	4.2	2.15/1005		0.08	6	0.091
D123-400	400-3000	35	400	960	5.5	1.80/1255		0.08	6	0.091
D123-500	400-3000	35	500	1200	7.5	1.70/1570		0.08	6	0.070
D123-530	400-3000	35	530	1512	9.0	1.20/1978		0.08	6	0.070
D133-400	400-5000	50	400	1200	7	2.00/1256		0.036	10	0.180	RC3
D133-500	400-5000	50	500	1770	11	1.60/1570		0.038	10	0.180
D133-630	400-5000	35	630	1970	11	1.70/1978		0.040	10	0.180
D133-800	400-5000	40	800	2520	12	1.50/2512		0.038	10	0.180
D133-1000	400-5000	40	1000	2530	16	1.45/3140		0.036	10	0.180
D143-630	400-5000	50	630	1695	10.5	2.00/1978		0.027	15	0.240	RC4
D143-800	400-5000	50	800	2825	16	1.45/2512		0.027	15	0.240
D143-1000	400-5000	65	1000	3170	19	1.45/3140		0.027	15	0.240
D143-1250	400-5000	70	1250	3285	20	1.55/3925		0.027	15	0.240
D243-800	400-5000	45	800	1755	12.5	1.85/2512		0.030	15	0.240
D243-1000	400-5000	50	1000	2610	18	1.55/3140		0.030	15	0.240
D153-1000	400-5000	100	1240	2420	16	1.90/3140		0.018	26	0.550	RC6
D153-1250	400-5000	100	1480	2950	18	1.85/3925		0.018	26	0.550
D153-1600	400-5000	100	1820	3455	22	1.70/5024		0.018	26	0.550
D173-2000	400-5000	150	2180	4265	28	1.90/6280		0.010	45	1.200	RC8
D173-2500	400-5000	150	2800	5485	32	1.85/7850		0.010	45	1.200
D173-3200	400-5000	150	3200	6455	40	1.75/10048		0.010	33	1.200
D173-4000	400-5000	150	4660	9200	50	1.55/12580		0.011	45	1.200
D173-5000	400-5000	150	5640	11544	65	1.35/15700		0.010	45	1.200
