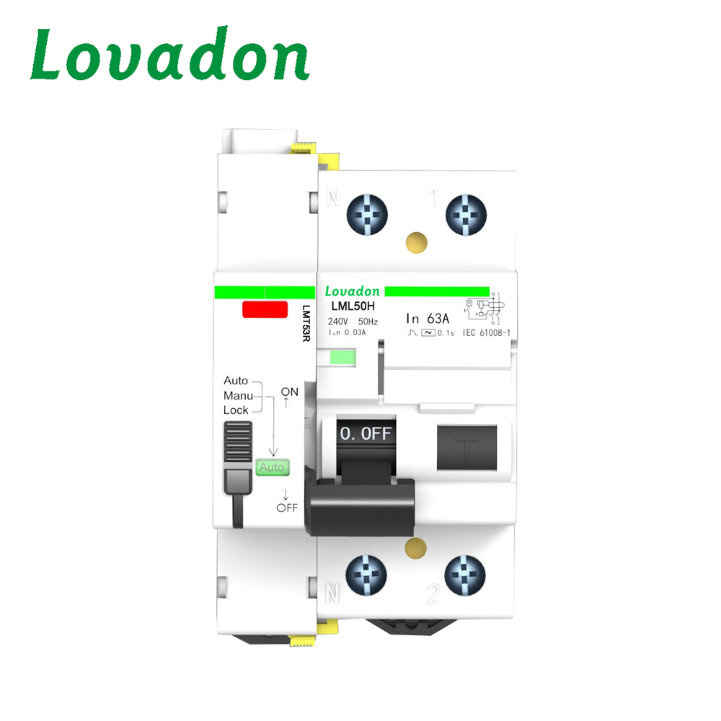

High Current Rating up to 100A RCD Remote Control Auto Reset Circuit Breaker with RS485

Name: High Current Rating up to 100A RCD Remote Control Auto Reset Circuit Breaker with RS485
Brand: all-electronics-online.com
SKU: 837035785
Availability: InStock
Rating: 5 (122 reviews)

Price:	US $ 26.8-46/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LML50H-2P
Residual Current:	10, 16, 20, 25,32, 40,63A
Rated Voltage:	230/400V AC
Residual Current Characteristics:	AC, a
Pole No.:	2.4
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Insert
Structure:	ELCB
Poles Number:	2
Certification:	CE

Product Description

Application:

Provides protection against earth fault/leakage current and function of isolation
High current rating up to 100A
Applicable to terminal and pin/fork type busbar connection
Contact position indication
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds
the rated sensitivity.
Independent of power supply and line voltage and free from external interference, voltage
fluctuation.

Technical Data

Mode:	electro-magnetic type
Residual current characteristics:	AC, A
Pole No.:	2, 4
Rated making and breaking capacity:	10000A
Rated voltage:	230/400V AC
Rated frequency: 50/60Hz
Rated Current:	25,40,63A
Rated residual operating current IΔn(mA):	10, 30, 100, 300, 500
Rated residual non operating current IΔno:	0.5IΔn
Rated conditional short-circuit current Inc:	3000A
Rated conditional residual short-circuit Current IΔc:	3000A
Tripping duration:	instantaneous tripping≤0.1s
Residual tripping current range:	0.5IΔn~IΔn
Electro-mechanical endurance:	4000 cycles
Connection capacity:	Rigid conductor 25mm

Connection terminal:
Pillar terminal with clamp
Fastening torque: 2.5Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
