High Density Interconnections PCB 10 Layer HDI Multi-Board
| Price: |
US $ 0.87/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-257-V2.57 |
| Outer Layer Cu Thickness: |
1oz |
| Pth Cu Thickness: |
25.40um |
| Finished Thickness: |
1.6mm |
| Surface Treatment: |
Enig |
| Solder Mask: |
Blue Matt,Kuang Shun,Ksm-6189blm1 |
| Legend: |
White,Tai Yo,S-380W |
| Trace Width (mm): |
0.203mm |
| Spacing (mm): |
0.176 mm |
| Warp And Twist: |
0.21% |
| Electrioal Test: |
100%Pass |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
10 Layer FR-4 CTI 175V-249V Multilayer PCB Matt Blue Mask Immersion Gold 1oz PCB
in Computer Power Supply
Commodity Introduction

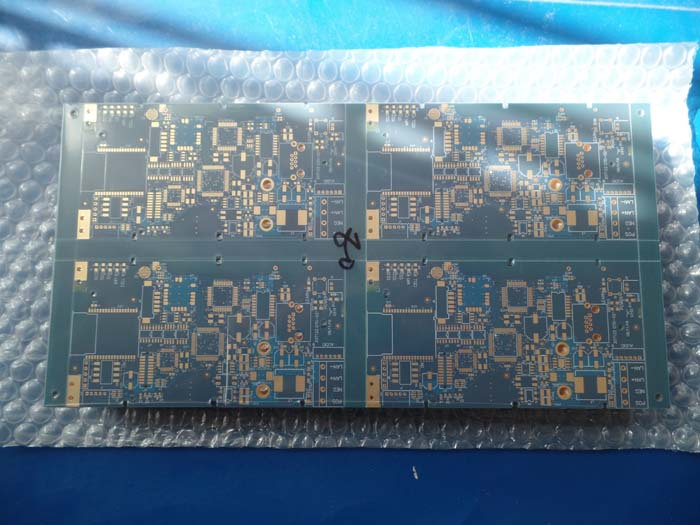

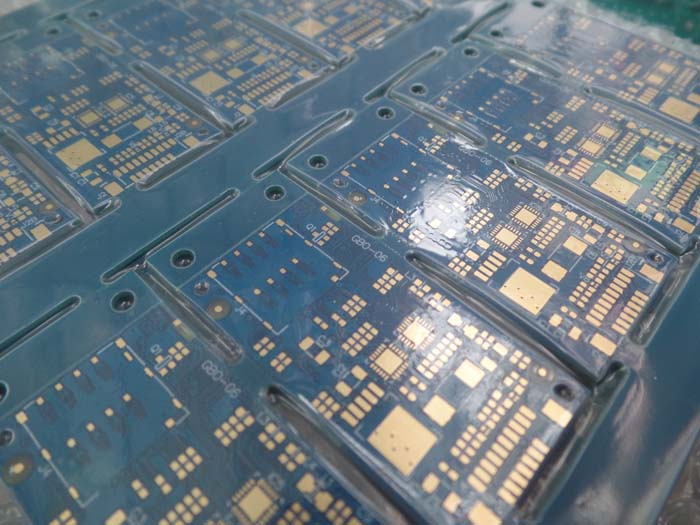

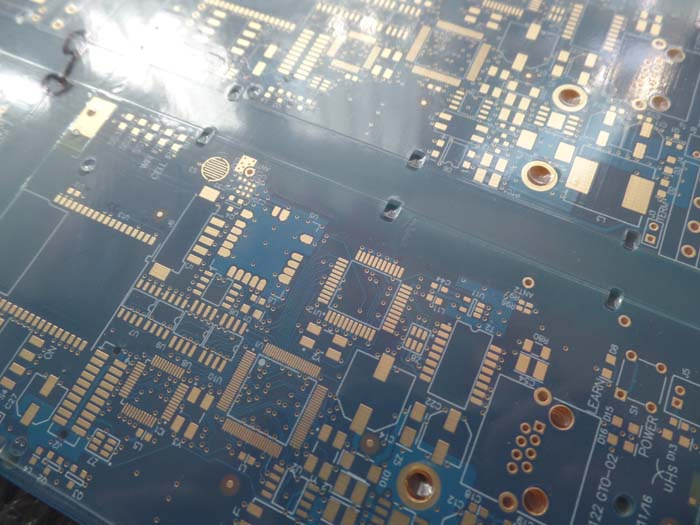

This is a type of FR-4 PCB for the application of Computer Power Supply. It's a 10 layer board at
1.6mm thick. The base laminate is from ShengYi, Solder mask and silkscreen from KUANG SHUN
and Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or
panels are packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
| Laminate | Laminate Type | FR4:CTI:175V-249V | FR4:CTI:175V-249V |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG >135 | TG >135 |
| Finished thickness | 1.6+/--10% MM | 1.62 MM |
| Plating Thickness | PTH Cu thickness | 23 um | 25.40um |
| Inner layer Cu Thickness | 1/1 OZ | 1/1 OZ |
| Surface Cu thickness | 35 um | 45.20 um |
| Solder Mask | Material type | KSM-6189BLM1 | KSM-6189BLM1 |
| Supplier | KUANG SHUN | KUANG SHUN |
| Color | Bule matt | Bule matt |
| Single / both sides | Both Sides | Both Sides |
| S/M thickness | >+ 10.0 um | 28.80 um |
| 3M tape test | NO Peel Off | no peel off |
| Legend | Material type | S-380W | S-380w |
| Supplier | Tai yo | Tai yo |
| Color | White | White |
| Location | Both Sides | Both Sides |
| 3M tape test | No peel off | no peel off |
| Circuit | Trace Width (mm) | 0.203+/-20%mm | 0.203mm |
| Spacing (mm) | 0.175+/- 20%mm | 0.176 mm |
| Identification | UL mark | 94V-0 | 94V-0 |
| Company Logo | QM | QM |
| Date code | 1017 | 1017 |
| Mark location | CS | CS |
| Surface Treatment | ENIG | Nickel | 110 u" | 121u" |
| Gold | 4u" | 4.13u" |
| Reliabilty Tests | Thermal shock test | 288±5ºC,10sec,
3 cycles | NO Discolor , NO
Delamination |
| soldeer abllity test | 235±5ºC, | 100% wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.21% |
| Others | V-Cut thickness | 0.4±0.1 mm | 0.39mm |
| Angle | 30+/- 5 | 30º |
Finished dimension (unit: mm): including v-cut| No | Required | Actual Dimension |
| 1 | 97.63+/-0.13 | 97.560 | 97.600 | 97.590 | 97.560 | 97.500 |
| 2 | 114.30+/-0.13 | 114.240 | 114.270 | 114.260 | 114.240 | 114.170 |
| 3 | 87.63+/- 0.13 | 87.560 | 87.600 | 87.590 | 87.560 | 87.500 |
| 4 | 11.43+/-0.13 | 11.370 | 11.400 | 11.390 | 1.370 | 11.300 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH/NPTH | Actual Dimension |
| 1 | 0.356mm | Y | VIA | VIA | VIA | VIA |
| 2 | | Y | 1.025 | 0.950 | 1.075 | 1.025 |
| 3 | | Y | 1.650 | 1.600 | 1.725 | 1.725 |
Learn PCB and Buy PCB
High CTI 600V PCB
What is Comparative Tracking Index (CTI)?
Here CTI is a quality item that refers to copper clad laminate which is widely used in home
electrical appliance or other high-voltage (110V, 220V) electrical apparatus. It is a simulated
condition that the PCB is polluted in its working environment, which result in leakage or short
-circuit at the track gap of the PCB surface, being accompanied by heat releasing and charring.
The way of experiment is that continous 50 drops of 0.1% ammonium chloride solution are dropped
between two points on the PCB surface, 30 seconds per drop, turning on high voltage AC current
to do the test. Firstly trying 300V to generate 1A current. There's ammonium chloride solution on
the surface, so after current is switched on it will produce resistance who also bring out heat, then
the solution is slowly evaporated. 2nd drop is on and till to 50 drops to see if the PCB has leakage
or not. Once the PCB has 0.1A creepage and exceeds 0.5 seconds, it's judged Failure.
The quality of CTI of laminate refers to the externally applied voltage value and without failure of 50
drops. If abovementioned 300V passed, we can increase the voltage to 400V, 500V or 600V till to
the high value before failure. That is the data of the laminate CTI.
Bicheng offers high CTI PCB's (high CTI 600V FR-4 and aluminum backed material) which is
working in such harsh environment of high voltage, filth and humidity. IEC 112 Standard has 3 degrees as follows| Comparative Tracking Index (in Volts) | Class | | 600 <= CTI | I | | 400 <= CTI < 600 | II | | 175 <= CTI < 400 | IIIA | | 100 <= CTI < 175 | IIIB |
|
As per the standard of IEC,the smaller a substrate of CTI grade, the better resistance to tracking.
Normal FR-4 ranges 175-225V
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
