High-Density Polyethylene 22-33kv HDPE Cable Spacer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JHW-22/33CS-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
High-temperature |
| Type: |
B Type Insulator |
| Material: |
HDPE |
| Structure: |
Cable Spacer |
| Size Of Bearing Capacity: |
8000n |
| Color: |
Light Grey |
| Brand: |
Jslpower |
Product Description

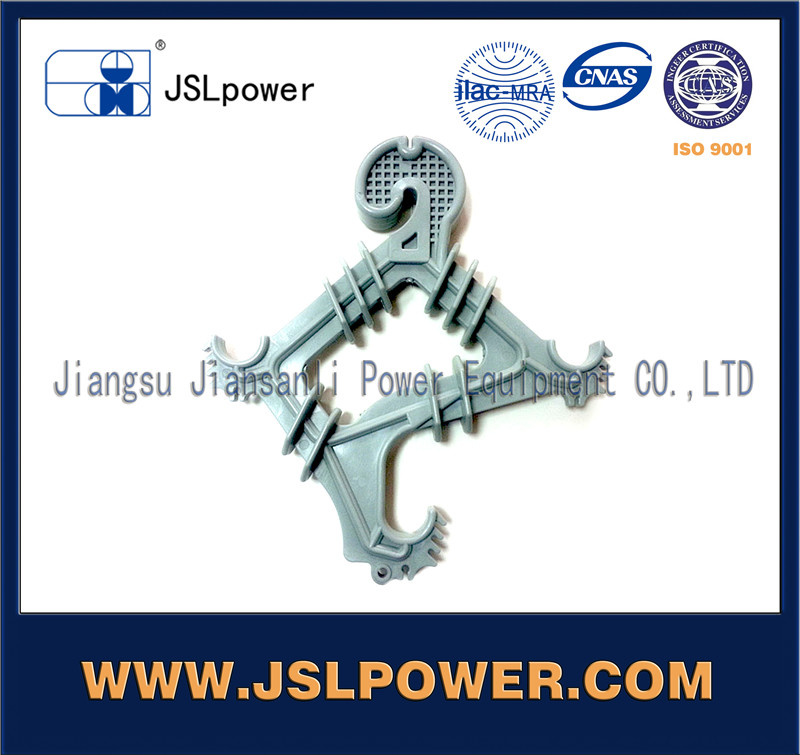

High-Density Polyethylene 22-33kV HDPE Cable Spacer
1)ANSI C29 standard, ISO9001, test report
2)12Years' exporting & manufacture experience
3)Distributors in many countries
4)China manufacturer own factory
5)Low price
Benefits:
·Electrically compatible with covered conductors -no stripping
·Resistant to impact damage, breakage and vandalism
·Excellent weather washing characteristics
·Interchangeable with porcelain insulators
·Excellent weatherability proven by test
·Designed for use with hand wrapped ties or preshaped ties
·Light weight for easy handling
·Excellent for contaminated environments
Application:
The cable spacer shall be made of track-resistant high-density polyethylene which suitable for using in the tropical climatic area and have passed electrical and mechanical test according to ANSI C29 standards. Each cable spacer shall be furnished with snap ties or other ties for securing cables. The snap ties shall be made of UV resistant polyurethane material which suitable for using in the tropical climatic area and have passed properties test in accordance with ASTM standards.
High-Density Polyethylene 22-33kV HDPE Cable Spacer
Partner Products:
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd.

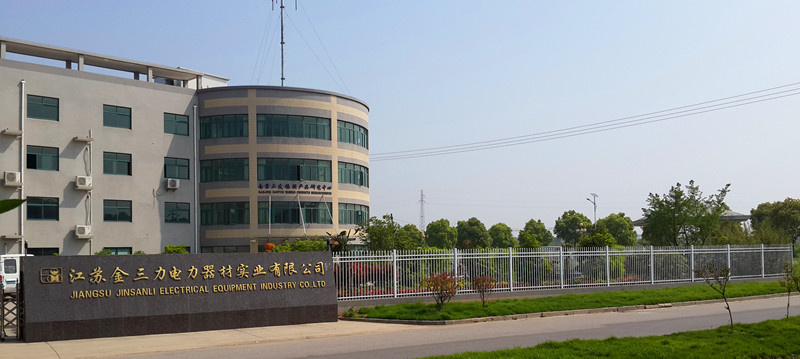

Company ProfileJiangsu Jinsanli Power Equipment Industrial Co., Ltd. is a scientific and technological enterprise of Jiangsu Province engaging in research, development, manufacture, processing and sale of electric power fittings auxiliary rubber and plastic products and insulator and polymer products. Since its establishment, it has developed various rubber and plastic auxiliary products applicable to military, electrical engineering, smart power grids and hydraulic engineering fields. With excellent quality, products of the company are well received by various large and medium-sized enterprises. Technical personnel of the company has experience in taking refresher courses and learning manufacture and processing of rubber products in Japanese NOK company and has obtained technical grade certificates on rubber products manufacture and processing issued by Japan. The company mainly manufactures over 500KV super damping rubber spacer. Besides, through matching up with products of hardware fittings manufacturers of power industry, products of the company are widely applied to key electric power construction projects of China. Based on its existing production scale, the company expands rapidly through introducing lots of advanced equipment, which makes its production capacity can satisfy demand of various large-sized power enterprises on rubber dampers used for 500KV to 1000KV extra-high voltage transmission lines. With continuous improvement of technology, the company has manufactured insulator products used for 10KV to 220KV transmission lines and power transformation engineering and meeting ANSI standard by using advanced polymer technology. What's more, the company constantly improves product quality through technology innovation to standardize, refine, process and scientize the company, so that to further research, develop and manufacture more high-quality and rational-price products to meet demand of domestic and foreign enterprises | 22-33kV Cable Spacer |

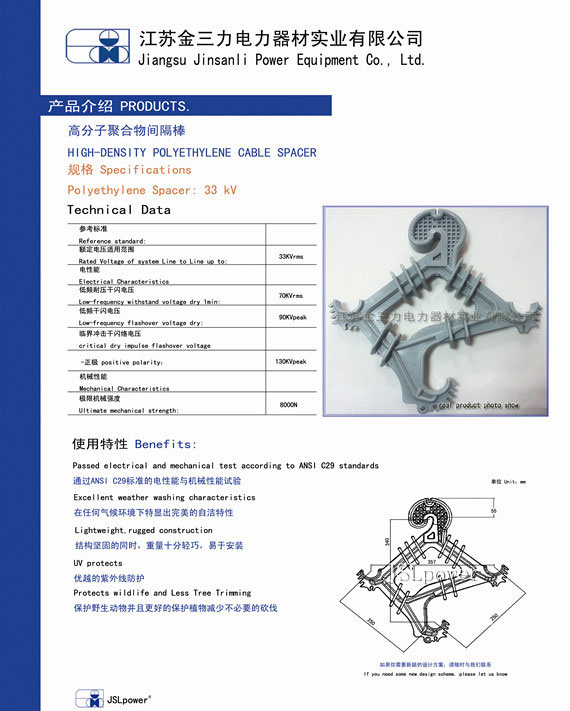

| Technical Data |
| Rated Voltage of system Line to Line up to: | 33KV |
| Low-freauency withstand voltage dry 1 min: | 70KV |
| Low-freauency flashover voltage dry: | 90KV |
Critical dry impulse flashover voltage
-positive polarity: | 130KV |
Mechanical Characteristics
Ultimate mechanical strength: | 8000N |
| Ordering Guide: | | | |
| Application | Logo | Carton
Quantity | Pallet
Quantity |
| 22-33KV Cable spacer | JSLpower | 6 | 270 |

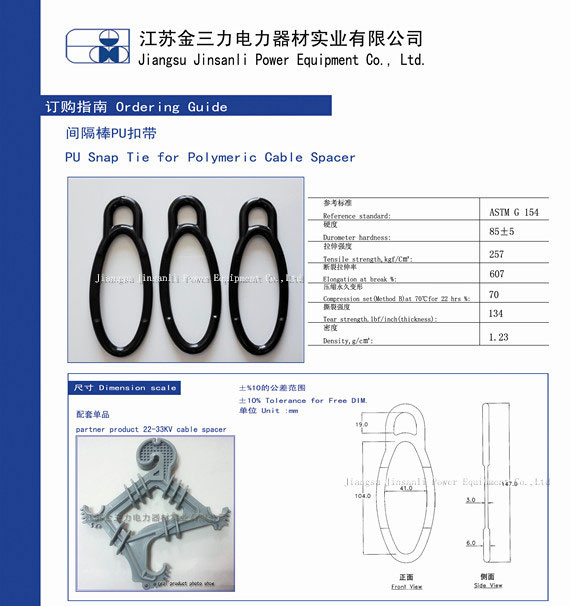

| Snap Tie for Cable Spacer |
| Technical Data |
| Reference satndard: | ASTM G 154 |
| Durometer hardness: | 85±5 |
| Tensile strength,kgf/cm 2 | 257 |
| Elongation at break % | 607 |
| Compression set (Method B)at 70ºCfor 22 hrs %: | 70 |
| Tear strength lbf/inch(thickness): | 134 |
| Density,g/cm 2 | 1.23 |
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd., specialized in Insulators, our company located in Nanjing, Jiangsu province, welcome to contact us for details!
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
