High Efficiency 200W 58V Programmable Charger

Name: High Efficiency 200W 58V Programmable Charger
Brand: all-electronics-online.com
SKU: 725442582
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	US $ 30-155/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD200-EVCSA-58
Output Current:	1870~3740mA
Output Voltage:	35~58.8V
Trickle Current Range:	374~1870mA
Trickle Voltage Range:	27~35V
Warrange:	3 Years
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

High Efficiency 200W 58V Programmable Charger

PLD200-EVCSA-58 programmable chargers offer 200W constant current and constant voltage outputs for applications such as electric vehicle and systems with batteries, especially Lithium batteries. Featuring with programmable parameters and charging profile, this series of products provide the system with an optimized charging capability.

Features

Universal AC Input @ 90~305Vac

Ultra-High Reliability

Efficiency up to 92.5%

Ultra-High Power Factor: 0.99@115Vac

Over Voltage Protection

Short Circuit Protection

Over Temperature Protection

Open Circuit Protection

IP67 Ingress Grade

RoHS Complied

3-Year Warranty

Product Specifications

Input Parameters

Input Voltage

Min.

Typ.

Max.

115/230

305

Vac

Input Frequency

Typ.

47~63

Power Factor

@ Full Load, 115Vac

@ Full Load, 230Vac

Min.

Min

0.99

0.95

Input Current

@ Full Load, 115Vac

@ Full Load, 230Vac

Max.

Max

2.4

1.1

Efficiency

@ Full Load, 115Vac

@ Full Load, 230Vac

Typ.

92.5

58V Charger Output Parameters
Output Current Setting Range	Min. Typ. Max.	1870 3400 3740	mA
Output Voltage Setting Range	Min. Max	35 58.8	V
Trickle Charging Current Range	Min. Typ. Max	374 680 1870	mA
Trickle Charging Voltage Range	Min. Max	27 35	V

The charging current is programmable between 1870mA and 3740mA. The no load output voltage is programmable with
maximal output power of 200W.
The output current peak value is less than 4.5A during start up and shut down with full load and 25ºC, measured with
20MHz bandwidth.

Prtections

Short Circuit Protection	Auto recovery.
Over Voltage Protection	Auto recovery. OVP level programmable at 3~5V above the constant voltage level.
Over Temperature Protection	Auto recovery.
Open Circuit Protection	Auto recovery

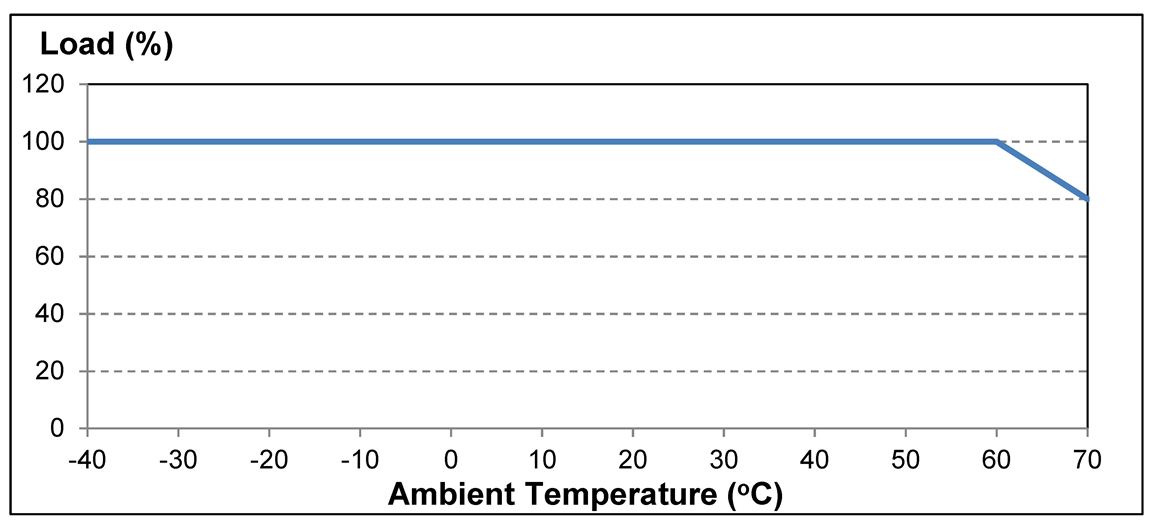

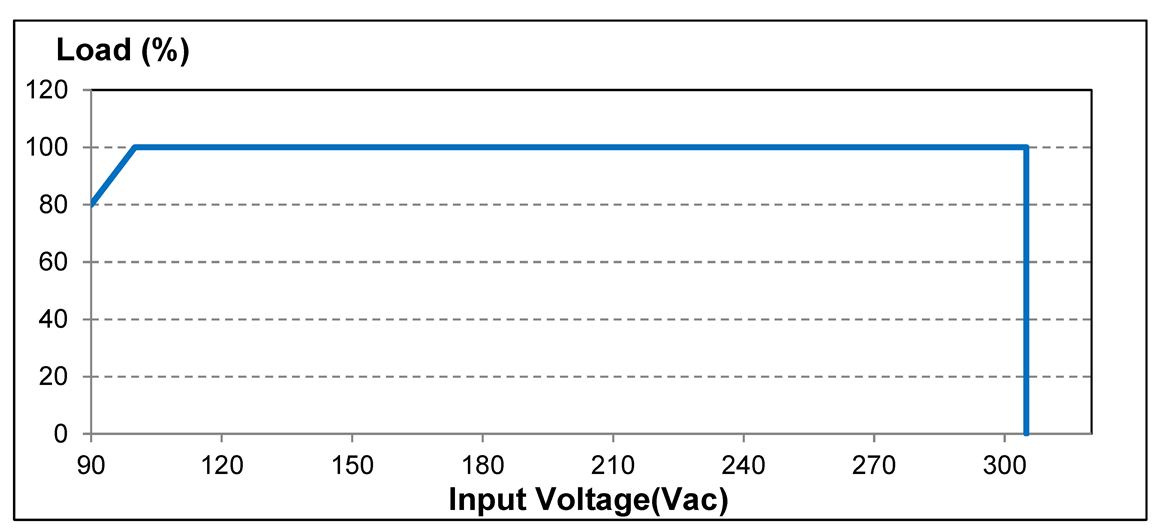

Derating Curves

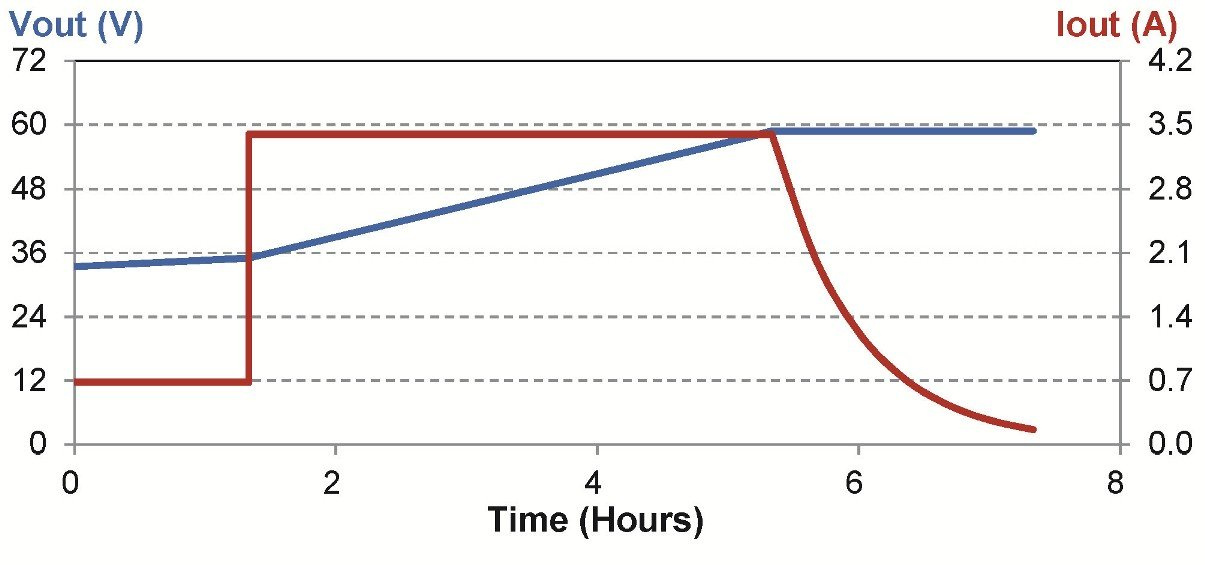

Charging Profile

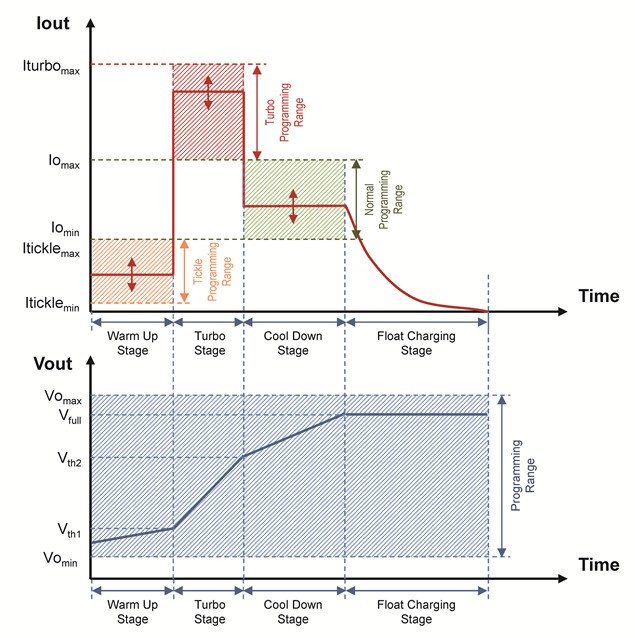

Programmable Profile with "Turbo Charging" TM
