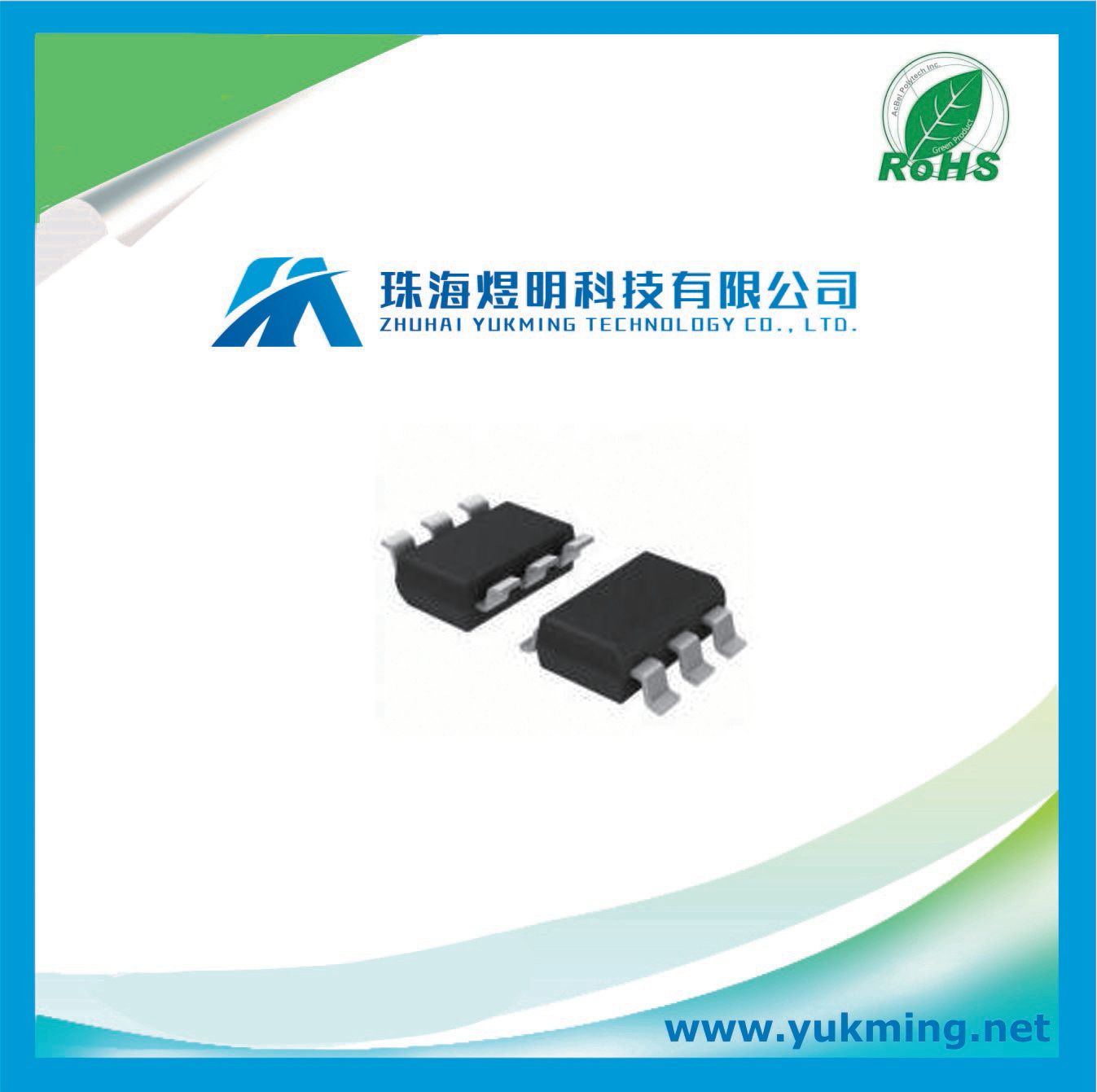

High Efficiency DC/DC Converter IC Integrated Circuit Rt9266bge

Prod Model:	RT9266BGE
Efficiency:	90%

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can to achieve our WIN-WIN cooperation.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

Tiny Package, High Efficiency, Step-Up DC/DC Converter

General Description
The RT9266B is a compact, high efficiency, and lowvoltage step-up DC/DC converter with an AdaptiveCurrent Mode PWM control loop, includes an erroramplifier, ramp generator, comparator, switch passelement and driver in which providing a stable and highefficient operation over a wide range of load currents. Itoperates in stable waveforms without externalcompensation.The low start-up input voltage below 1V makes RT9266Bsuitable for 1 to 4 battery cells applications with a 500mAinternal switch. The 550kHz high switching rate minimizedthe size of external components. Besides, the 25μA lowquiescent current together with high efficiency maintainslong battery lifetime.

Features
1.0V Low Start-up Input Voltage at 1mA Load
25μA Quiescent (Switch-off) Supply Currentμ
Zero Shutdown Mode Supply Current
90% Efficiency
550kHz Switching Frequency at 3.3V VDD
Providing Flexibility for Using Internal and External
Power Switches
SmallSOT-23-6Package
RoHS Compliant and 100% Lead (Pb)-Free

Applications
PDA
DSC
LCD Panel
RF-Tags
MP3
Portable Instrument
Wireless Equipment

Any items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!
