| Prod Model: |
LW1000-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design: |
Low Frequency Pure Sine Wave |
| Outlook: |
Horizontal Type |
| Clolor: |
Black& White |
| Frequency: |
50/60 Adjustable |
| Voltage: |
110/120/130V&220/230/240V |
| Max Current: |
70A |
| Charging Mode: |
3 State Charging |
| Display: |
LCD and LED Optional |
| Remote Control: |
Yes |
| Customized: |
Yes |
Product Description

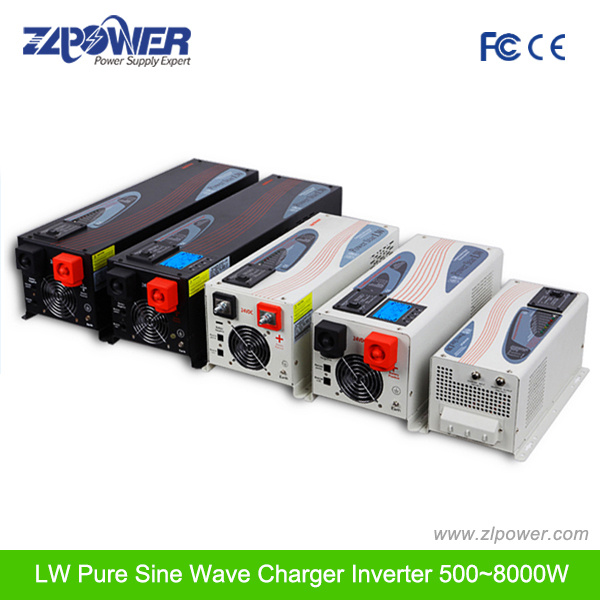

LW 500W-8000W Pure Sine Wave, low frequency Inverter
It is widely applied in wind generator, solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunicationsdevice, launch station, emergency EPS.
1.Main Features:
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is three times of rated power.
3. Can work with inductive loads such as air conditioner, motor door and so on
4. Accept generator's energy output.
5. Pure sine wave output, available for sensitive loads.
6. Microprocessor control with 4-step progressive charging, 7 battery type selector.
7. Fast and powerful charger with 35A and 70A.
8. High power factor 0.9, low power consumption.
9. Automatically transfer between battery and line modes.
10. Custom-made communication port USB/RS-232/SNMP
11. Remote control function.
12. Protection against overload, over temperature, over charging, low battery.
2.Parameters:
| LED Model | LW1000 | LW1500 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 | LW7000 | LW8000 |
| LCD Model | LW1000-C | LW1500-C | LW2000-C | LW3000-C | LW4000-C | LW5000-C | LW6000-C | LW7000-C | LW8000-C |
| Nominal Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W |
| AC Input | Phase & waveform | Single Phase & Pure Sine Wave |
| Norminal Voltage | 120VAC/230VAC OR 220/230/240VAC |
| Acceptable Voltage | 95-126VAC OR 194-253VAC±4% |
| Line Low Disconnect | 85V±4% OR 184±4% (154 wide mode±4%) |
| Line Low Reconnect | 95V±4% OR 194 ±4%(164 wide mode±4%) |
| Line High Disconnect | 136V±4%/274±4% |
| Line High Reconnect | 126V±4%/264±4% |
| Frequency | 50Hz(41-54) or 60Hz(51-64) (auto sensing) |
| Output | Phase & Waveform | Single Phase & Pure Sine Wave (bypass mode sync to input) |
| Voltage | 110/120/130VAC OR 220/230/240VAC±10%rms (bypass mode sync to input) |
| Voltage Regulation | ±10%rms (bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz OR 60Hz±0.3Hz (bypass mode sync to input) |
| Peak Power | 3 times of rating power |
| Short Circuit Protection | Yes, shutdown after 10ms |
| Power Factor | 0.9-1.0 |
| DC Input | Battery Voltage | 12/24Vdc | 12/24/48Vdc | 24/48Vdc | 48/72Vdc |
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V |
| Low Battery Alarm | 10.5±0.3Vdc for 12V, 21±0.6Vdc for 24V, 42V±1.2for 48V |
| Low Battery Transfer | 10V±0.3Vdc for 12Vdc, 20V ±0.6Vdcfor 24V, 40V ±1.2Vdcfor 48V |
| High Voltage Alarm | 16V±0.3 for 12V, 32V ±0.6for 24V, 64±1.2V for 48V |
| High DC Input Recovery | 15.5±0.3Vdc or 31±0.6Vdc or 62V±1.2Vdc |
| Max Charge Current | 20A/35A/50A/75A/90A(According to the inverter model) |
| Transfer Efficiency | Line Mode | >96% |
| Battery Mode | >85% |
| System Parameter | Power Saver | Load<=25W(Enabled on "P/S auto"setting of Remote Control |
| Audible Alarm | Souding when the heat sink 's temperature is over 100ºCand shut down after 30 seconds |
| Over Load Protection | 110% |
| Load>150%,beeps 0.5s every 1s,and fault after 20s |
| Protections | low battery,over charging,over temp,over load |
| Communications | RS-232/USB/SNMP(custom-made) |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB | | |
| Net Weight(KG) | 15.5 | 18 | 20 | 25.5 | 36 | 39.5 | 48 | 55 | 60 |
| Dimension, L X W X H(mm) | 470×223×185mm | 650×223×185mm |
3.About ZLPOWER:
ZLPOWER is the inverter & UPS fatory since 2006.
We mainly produce below FOUR types of inverters for your choice:
1. IG series is high frequency modified sine wave home inverter, from 500va to 2000va, 12v/24vdc to 220/230vac, built in 10amp AC charger, mainly used for home appliances and office equipments such as TV, fan, light, computers and so on.
2. LW series is low frequency pure sine wave powerstar inverter, LCD digital display, from 1000w to 6000w, 12v/24v/48vdc, 110/120vac or 220/230/240vac, built in 35amp or 70amp AC charger, mainly used for home (air conditioner, freezer, printer), office, industry, big equipments, solar power systems and so on.
3. PST HIGH FREQUENCY pure sine wave Inverter WITHOUT CHARGER 600W-3000W is mainly used for solar power station; home solar power systems, mobile solar power system and DC wind solar generating systems.
4. PSC LCD digital display high frequency pure sine wave inverter 3KVA-6KVA, with built in AC charger, mainly used for solar, wind or hybrid power systems.
4.FAQ:
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.
Q2. How's the delivery time?
A. usually it will take about 3-5 days for sample and 10-15 days for bulk production
Q 3. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.
Q4. Would you accept to use our logo?
A. We would provide free OEM order depends on your quantity.
Q5. We want to know month capacity.
A. It depends on different model. Total capacity is upto 10000 pieces.
Q6. Where is your market?
A. Our products are popular all over the world as their cost-effictive perfermance. We hope you can join us and make mutual benefit from our long-term and co-win cooperation.
Q7. Does the inverter connect with utility?
A.Yes.it is solar and utility complementary inverter. it combine invert, charge and AC auto-transfer switch into one complete case, it also can charge the battery by utility and generator.
