High Efficiency Inverter Pure Sine Wave Inverter Charger

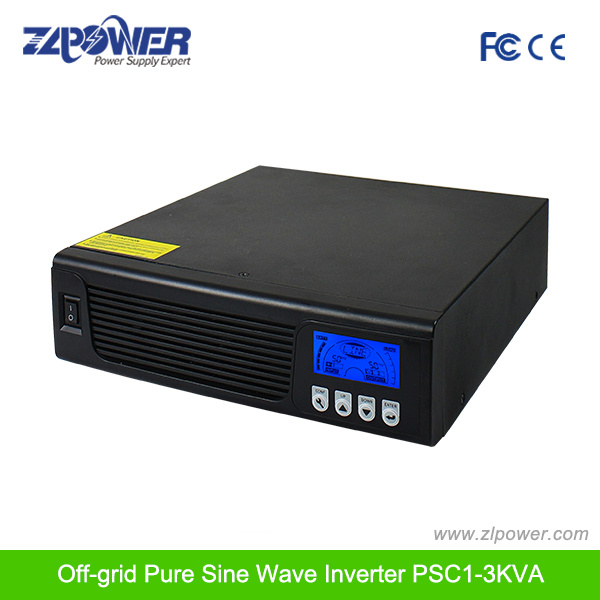

Name: High Efficiency Inverter Pure Sine Wave Inverter Charger
Brand: all-electronics-online.com
SKU: 734215815
Availability: InStock
Rating: 4.4 (64 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PSC3000VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charger:	20AMP
Output Wave:	Pure Sine Wave
Display:	Digital LCD
Peak Power:	2 Times as Rated Power
Technic:	IGBT
Feature:	Compact Size and Light Weight
Control:	Advanced MCU Microprocessor Control
Input Voltage:	100-270V
Power Factor:	0.7 or 0.8
Efficiency:	90%

Product Description

*LCD digital display will show voltage, frequency, battery and load information.

*Built in AC charger will charge batteries automatically.

*High-frequency switching technology for compact size and light weight.

*High efficient DC-to-AC conversion minimizing energy loss.

*High power density design.

*Intelligent cooling fan speed control determined by loads.

*CPU Control.

*Multiple protection: Input low voltage / Overload / Short circuit / Low battery alarm / Input over voltage / over temperature.

Picture:

MODEL	PSC 3KVA-24	PSC 6KVA-48	PSC 6KVA-96
Output Power (Continuous)	2400W	4200W/4800W	4200W/4800W
PF	0.8	0.7/0.8	0.7/0.8
Surge Rating	4800W	8400W	8400W
Nominal Input Voltage	24vdc	48vdc	96vdc
Output Voltage	220/230/240Vac ±10% rms
Nominal Efficiency	>90% (@Normal DC Input; >60% R load)
Output Frequency	50Hz / 60Hz ± 1Hz (follow first connect to grid)
Over-Load Protection	fault after 5s@≥150% load,<=200% load fault after 10s@110%~150% load
Nominal Charge Current	10A @Vi/p<170Vac 20A@Vi/p=230Vac 10A @Vi/p>280Vac	20A(95-175v, gen/wide only), 35A(175-275v)@35A setting 20A(175v-275v)@20A setting)	10A(95-175v, gen/wide only), 20A(175-275v)@20A setting 10A(175v-275v)@10A setting)
Output waveform	Pure Sine Wave
Charge Voltage	27vdc	54vdc	108vdc
Over Charge Protection	Bat. V ≥30Vdc, Fault, Buzzer alarm	Bat. V≥60Vdc, Fault, Buzzer alarm	Bat. V ≥120Vdc,Fault, Buzzer alarm
Protection	Overload, Short circuits, Over/under input voltage, Over temperature
Operating Temperature Range	0°C to 45 °C
Dimensions (LxWxH)	330 x 269 x 76.5 mm	407 x 350 x 110mm
Weight	4.9Kg	9.5Kg		9.5Kg
