High Efficiency Us Input Plug 12V1a Power Adapter

Name: High Efficiency Us Input Plug 12V1a Power Adapter
Brand: all-electronics-online.com
SKU: 827726655
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	US $ 2-2.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AD-S1210B
Usage:	CCTV Camera
Output Type:	AC or DC
Connection:	Plug In
Type:	ODM/OEM
Brand:	Sanyi Power

Product Description

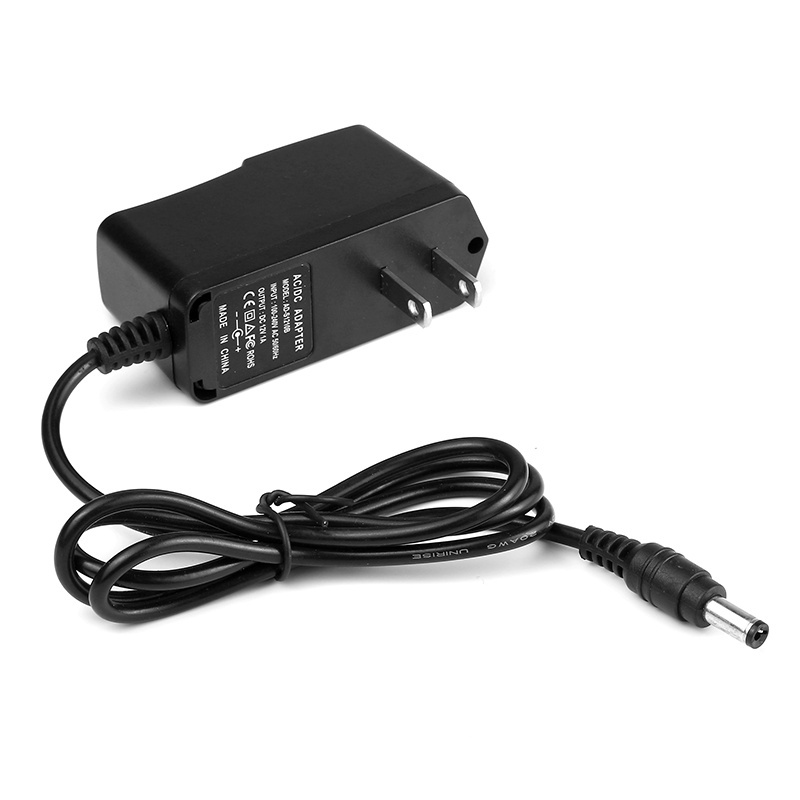

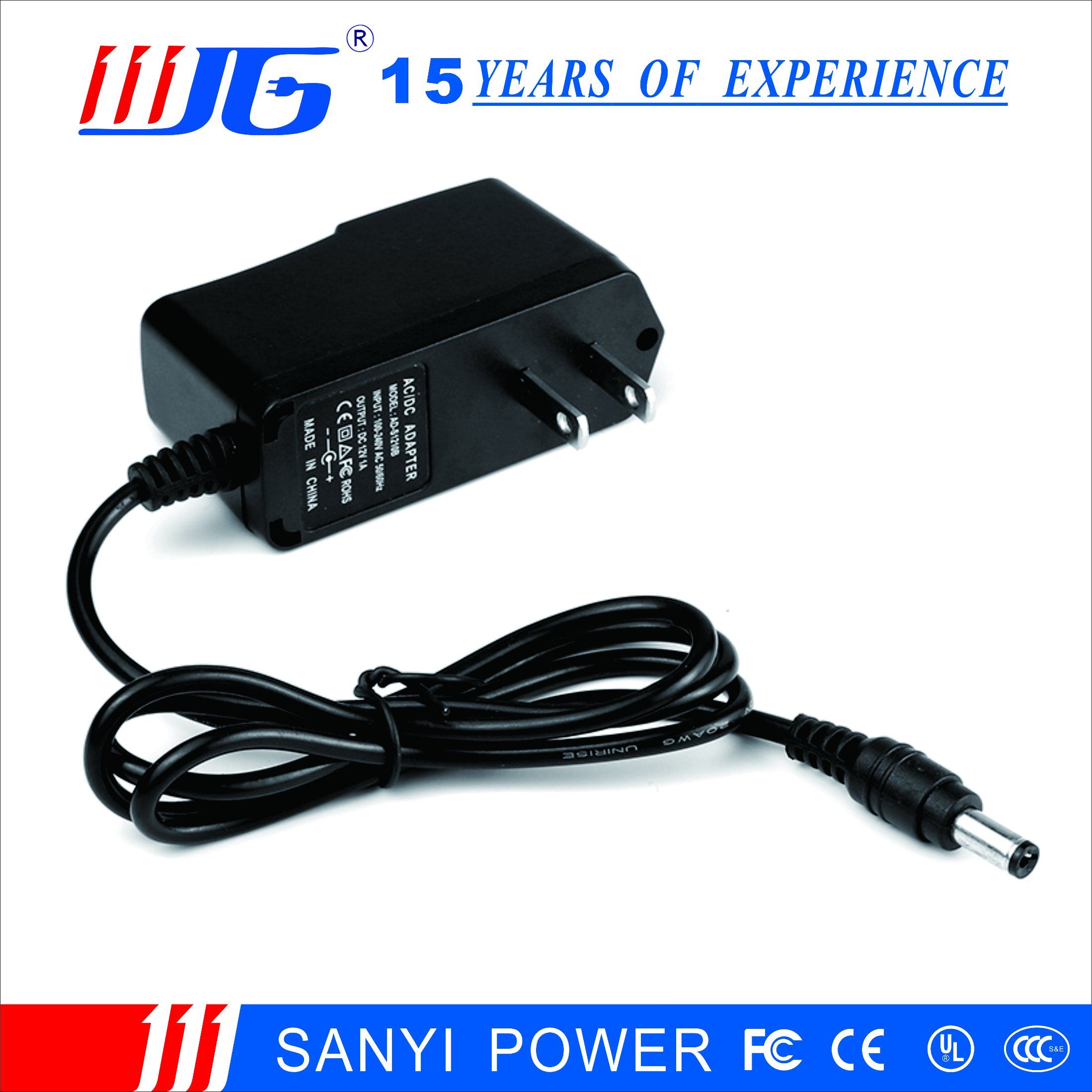

12V1A POWER ADAPTER for Surveillance Camera

^1.FEATURES^:
>^{Input Voltage Range:90Vac-264Vac}
^{>No load power consumption<0.5W
>Input Current Harmonic: EN60950-1
>Output voltage Ripple and Noise: <120mVp-p
>Output 12Vdc 1A
>Protections: Short circuit / Over load / Over voltage
>Fully enclosed plastic case}
^{ELECTRICAL CHARACTERISTICS}
^{>Efficiency: >= 80%
>Turn-On Delay Time:300mS
>Load Regulation: 5% max.
>Hold-up Time: 5mS min.
>Dielectric Strength:(Hi-Pot):Between AC input and secondary applied AC 3.0kV,test time 1 minute, and cut off current shall be less than 10 mA.AC 3.0kV,test time 10 Sec.for mass production.
>Insulation Resistance: Between AC input and secondary applied 500Vdc,test time 1 minute. 500Vdc,test time 10 Sec.for mass production. ≥100MΩ}
^{ENVIRONMENTAL}
^>^{Operating Temperature: 0 to 50oC
>Storage Temperature: -40 to 85oC}

^{>Relative Humidity: 5 to 95%}
^2.Model: Input Plug : EU, US, AU, UK available
High Efficiency Us Input Plug 12V1a Power Adapter

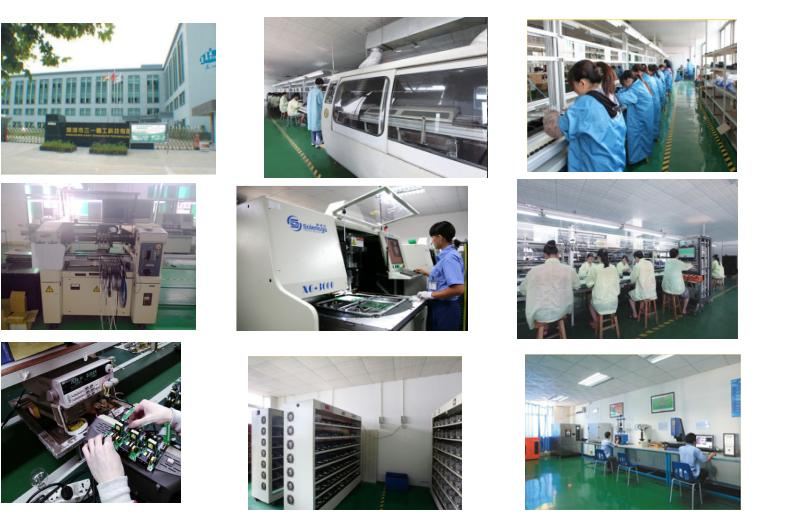

3.Factory Profiles
High Efficiency Us Input Plug 12V1a Power Adapter

4.Certificate

5.Contact
SHENZHEN SANYI TECHNOLOGY CO., LTD
Web: www.szsanyi.com
Contact: Tina Zhang
Phone:+8613826545080
Tel: +86-755-28986673
Add: Floor4, Block1, Hongjiatai Industrial Area, Xintun Village, Ailian Community,
Longgang District, Shenzhen 518172, China

SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.

We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.

We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
