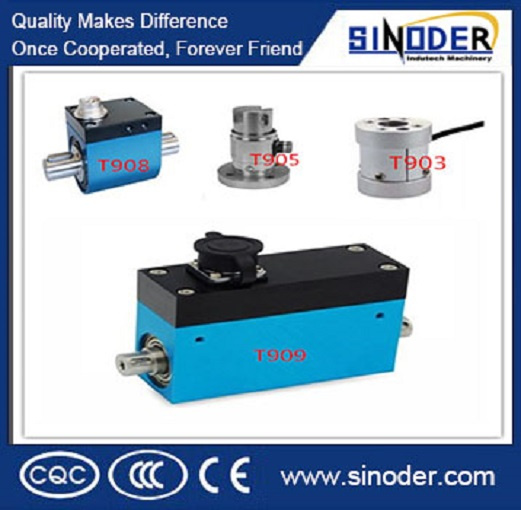

High Effiency Electric Machinery Torque Sensor of Sinoder
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,D/P |
| Prod Model: |
T908 |
| Measurement Range: |
4~20mA |
| Negative Full Range: |
15 kHz |
Product Description
Electric Machinery Torque Sensor
1.Details:
1. (1)The torque measurement function
(2)The energy and non-contact signal transmission function
(3)The digital output signal transformation function
2.T-908 torque signal coupler can transmit motionless rotary signal,rotary torque signal,dynamic rotary signal,static rotary signal
3. Transmission has nothing to do with rotation, speed and veer. Be suitable for long-time, high speed running.
4. High accuracy, reliable performance;
5. Small volume, Light weight, Easy to install;
6. Continuously transmitting positive &negative torque signal without repeated zero setting.
7. No wear parts such as collector ring. Be suitable for long-time, high speed running.
8. Strong anti-disturbance.
9. Be installed at any position, any direction
| Measurement Range | -0.005...0~0.01Nm...~100KNm |
| Proof pressure1 | ≤1.5X rated pressure or 110MPa which ever is less |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(typical) ±0.5%(Max.) |
| Long term stability | ±0.1%F.S/year(typical) ±0.2%F.S/year(Max.) |
| Temperature Error- Zero | ±0.03%F.S/ºc ±0.02%F.S/ºC |
| Temperature Error -Span | ±0.03%F.S/ºC ±0.02%F.S/ºC |
| Power supply | 24VDC |
| Output signal | 4~20mA 0/1~5/10 0-±5VDC |
| Pressure port | 18 38 mm |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 304 |
| O-ring | Fluororubber |
| Cable | polyethylene |
| Insulation resistance | 100MΩ,100VDC |
| Protection | IP65 |
FAQ:
We also provide other sensor products , like weighign sensor , pressure sensor ,tension and compression force sensor ,compression force sensor etc.
If you want to know more information about the vegetable processing machine, welcome to contact me:
Tel: 0371 55933391 Fax: 0371 55919082
Sinoder Group is a joint-stock machinery developing enterprise group, integrating industrial scientific research, production, marketing, installation, commissioning and training service.
Sinoder group company obtained outstanding member of Chinese Cereals and Oils Association and of Chemical Association, approved by the State Quality and Technical Supervision of "Pressure Vessel Manufacturing License" "Pressure Vessel Design License" "Pressure Piping Installation License" "Pressure Piping Design License", with many years of grain and oil machinery, chemical equipment and the advanced mechanical design, manufacture, installation history.
Sinoder Group establish a long-term technical cooperation relations with School of Food Science and Technology, Engineering Research Center of Henan University of Technology, Xi'an Oil Grease Institute, Zhengzhou Machinery Research Institute and our customers, ensure the technical content of product and process innovation.
We have 368 staffs including more than 42 professional technical personnel. Company organizations are: Engineering technology department, marketing services dept., integrated management dept., financial management dept., machinery manufacturing center and the research and development center and other departments. We have 25 engineering design staff. All design are by computer operations, and passed the ISO9001-2000 quality management system certification forming a set of scientific research, production and development together.
Scientific and technological innovation, excellent quality, customer satisfaction is our consistent business principle, service is company's long-term commitment.
In recent years, the company has completed hundreds of projects involving the exploitation of oil pretreatment, extraction, oil refining, animal oil refining processing, small varieties of oil deep-processing, bio-diesel and other technologies, the projects cover more than 20 domestic provinces and cities, autonomous regions and export to South Africa, Ethiopia, South Asia, Pakistan, Russia, Peru, Argentina and other dozens of countries, especially in Uzbekistan, the Sinoder Group finished 18 sets of edible oil projects. Our proudct well received by customers at home and abroad.
