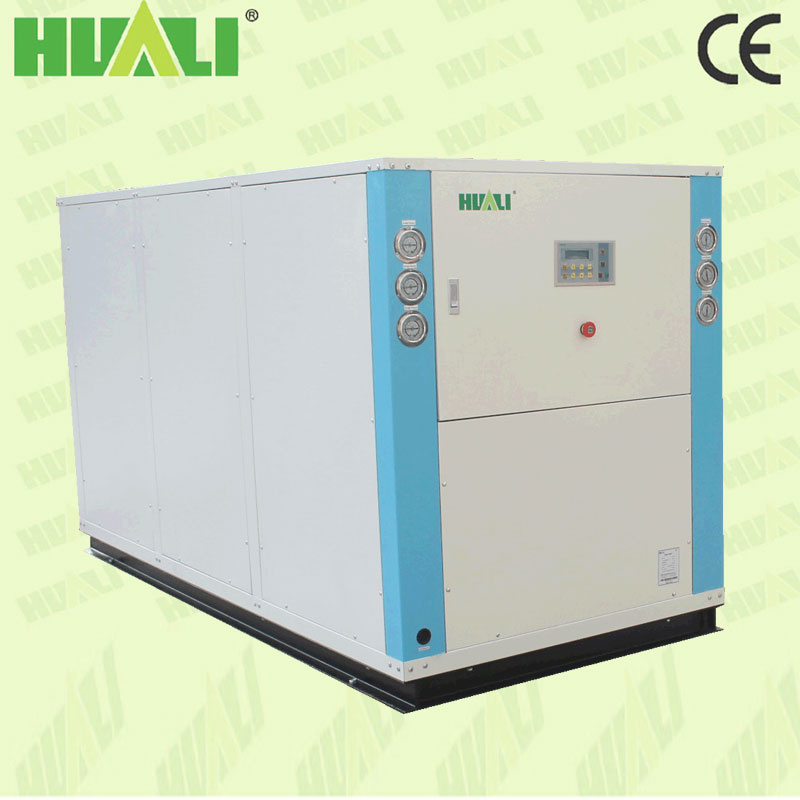

High Effiency Scroll Compressor Water Cooled Chiller

High Effiency Scroll Compressor Water Cooled Chiller
Price: US $ 1100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Prod Model: HLLA~03SPI-45TPI
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity: 10.2-156 Kw
Input Power: 2.85-32.8 Kw
Power Supply: 380V-440V
Refrigerant: R22, R407c, R410A,R134A
Evaporator: Shell and Tube Type
Chilled Water Flow: 29.2-447.1 L/M
Noise: 54-75 Db
Tank Volume: 80-270 L
Unit Weight: 120-1180 Kg
Certification: CE
Type: Rotary
Usage: Refrigerator
Control Type: Digital
Display Type: LCD
Material: Copper
Brand: Huali

Product Description

Water cooled chiller features:
Adopts high-quality compressor and Taiwan pump, very safe and noiseless, economical in power and durable
Temperature control range: 5 to 35 degree, more or less ± 1 degree.
Designs of chiller and radiator are unique, the heat exchange efficiency is very high
Chiller is designed to be with current overload protector, high and low voltage construction and electric time-delay safeguard, when malfunction happened, it could alarm and show the cause of the problem in time
Can customize base on the requirement of acid resistant and acidity-resistant (optional)
Standard model: Equipped with water pump and water tank
Refrigerant is R22, R410A, R407C, and R134A are also available
Power and frequency supply: 380V, 3pH, 50Hz
Can customized 400V, 3pH, 50Hz/380V, 3pH, 50Hz/400V, 3pH, 60Hz

Rated cooling capacity base:
Ambient temperatures: 35 degree.
Water in/outlet: 30/35 degree.
Inlet/outlet temperatures: 12/7 degree.
Chilled water range: 5 to 20 degree.
Cooling water range: 20 to 40 degree.
                                                                Industrial Water-cooled Chillers  (Cooling Only)
Bitmap Bitmap
Model
HL-03W05W08W10W15W20W25W30W40W45W
5/40 degree cooling capacityKW8.815.424.430.840.161.67092.4108120.4
BTU300345256083277105120136861210241238910315361368604410925
Power inputKW2.13.45.67.211.251314.819.522.231.2
Noise leveldB(A)62646567677172737575
Power supply3N  AC380V   50Hz
CompressorTypeScroll
PowerKW2.13.46.28.310.416.612.5×220.82831.2
RefrigerantThe material nameR22
Throttling methodExternal Epualizer Expansion valve
Chargekg23.55.5791417.5192426.3
Water flow10 degree flow rate of chilled waterm 3 /h1.62.84.55.8711.612.416.218.420.7
ID of water inlet pipein.3/4″1″1-1/2″1-1/2″2″2″2″2-1/2″3″3″
condensing water ratem 3 /h2.13.65.587.28.714.415.920.823.726.1
ID of water in&out pipe in.3/4″1″1-1/2″1-1/2″2″2″2″2-1/2″3″3″
PumpTypepumpThe user supplies for oneself
Motor powerHP0.50.511
DimensionWidthmm83383314001400140020502050205024002400
Depthmm50050090090090010001000100010001000
Hightmm96096010501050105011001100110015001500
Water tank capacityL8080180180180270270270350400
Weightkg13017035040045065065085010501100
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.

We found the Domestic Market Department, Overseas Markets Department,

Research & Development Department in December, 2008.

We applied for CE certification and passed in 2009.

We applied for 6 software registration rights in 2010.

We applied for 3 utility model patents in 2011.

Our company was approved as a national high-tech enterprise on November 5, 2012.

Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
