High Freqency PCB RO4350b 20 Mil 0.6mm Thick Circuit Board
| Price: |
US $ 2.38/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1028R1.8 |
| Solder Mask Color: |
Green |
| Surface Finish: |
Immersion Gold |
| Legend Color: |
White |
| Board Thick: |
0.6mm |
| Copper Thick: |
1.5 Oz |
| Minimum Trace and Space: |
5.98 Mil/6.18 Mil |
| Minimum / Maximum Holes: |
0.3/3.2mm |
| Board Plating: |
0.0030" |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Flame Retardant Properties: |
V0 |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
High Freqency PCB RO4350B 20mil Double Sided PCB Service With Immersion Gold
Applied In RF Module
Commodity Introduction

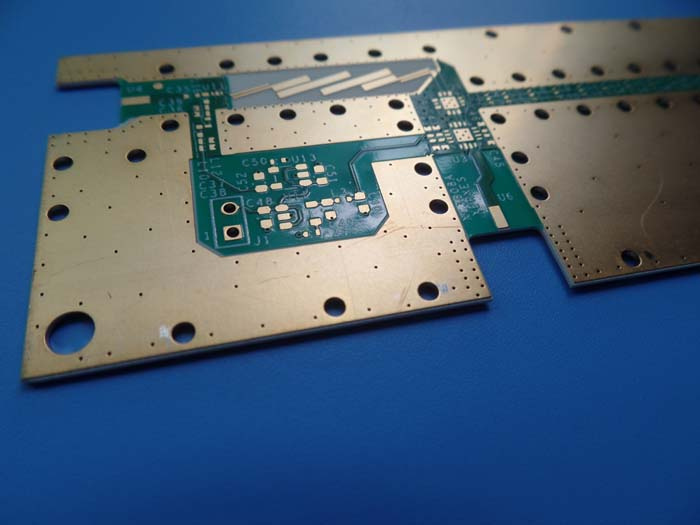

This is a type of RO4350B PCB for the application of RF Module. It's a 2 layer board at 0.6mm
thick. The base laminate is from Rogers Corp., Solder mask and silkscreen from Nanya and Ta
-iyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels
are packed separately
Parameters & Data Sheet| PCB SIZE | 16 x 83mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | no |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4350B 20mil (0.508mm) |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.98mil/6.18mil |
| Minimum / Maximum Holes: | 0.3/3.2mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 431 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | no |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 20mil (0.508mm), Tg 288ºC |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (81.1%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | RF module, Wireless Modem
Gps Systems
Analog Devices
Alarm Systems
Wireless Repeater |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Standard specifications of RO4350B and RO4003C Substrate
RO4000 Series High Frequency Circuit Materials
Standard Thickness
RO4003C
0.008" (0.203mm)
0.012" (0.305mm)
0.016" (0.406mm)
0.020" (0.508mm)
0.032" (0.813mm)
0.060" (1.524mm)
RO4350B
0.0040" (0.101mm)
0.0066" (0.168mm)
0.010" (0.254mm)
0.0133" (0.338mm)
0.0166" (0.422mm)
0.020" (0.508mm)
0.030" (0.762mm)
0.060" (1.524mm)
Standard Panel Size
12" x 18" (305 x 457 mm)
24" x 18" (610 x 457 mm)
24" x 36" (610 x 915 mm)
48" x 36" (1.224m x 915 mm)
0.004"(0.101mm) material is not available in panel size larger than 24" x 18" (610 x 457 mm)
Standard Copper Cladding
1/2 oz(17µm) electrodeposited copper foil (0.5ED/0.5ED)
1 oz (35µm) electrodeposited copper foil (1ED/1ED)
2 oz (70µm) electrodeposited copper foil (2ED/2ED)
