| Prod Model: |
STP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volume: |
570*385*560 Mm |
| Item: |
STP |
| Color: |
Blue and Gray |
| Output Voltage: |
6V/12V/15V/24V |
| Output Current: |
1500A/2000A |
| Feature: |
with IGBT |
| Control Type: |
Panel Control |
| Type: |
Rectifier |
| Usage: |
for Plating,Anodizing,Electrolysis,Electrophorese, |
| Output Type: |
Single |
| Output Power: |
>500W |
| Input Voltage: |
380V |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Warranty: |
1 Year |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Samyang |
Product Description
Why choose us ?
1.We have 5 plating rectifier sole agents in United Kingdom,Poland,South Africa,Thailand,Colombia.
2.2008 Olympic Games and 2010 Asia Games appointed power supply supplier.
3. Over 22 years electroplating rectifier telecommunication power supply manufacture in China.
4.We are one of the limited liability company in our city.
5.We have 17 patents.

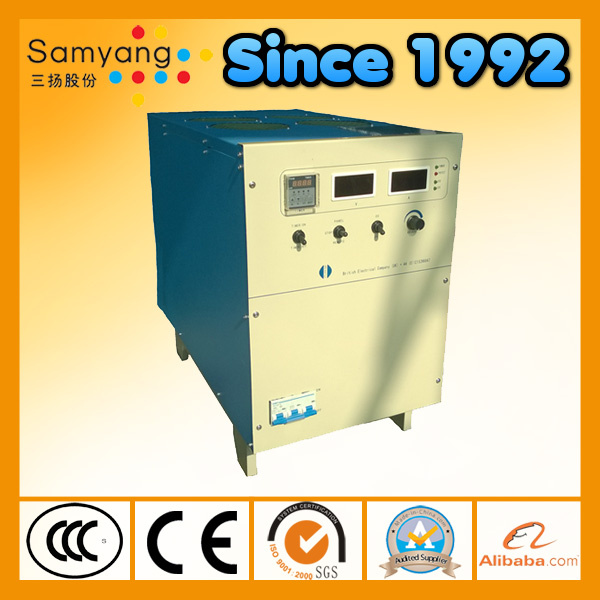

High frequency air cooling ac dc rectifier for plating,anodzing,electrolysis,electrolyphorese,electphorese,electrowinning with IGBT
Specification:
1)Input voltage: 380VAC 350VAC-450VAC (three phase) 50Hz
2)Output Voltage: 6V/8V/12V/24V
3)Output Current: 1500A/2000A
4)Output current stability: ≤2%
5)Output voltage stability: ≤1%
6)Efficiency: ≥85%
7)Power factor: ≥0.9
8)Start-up postponing time : ≤10s
9)Inverting frequency: 18kHz ± 2kHz (800A-1000A)
8kHz ± 2kHz (300A-500A)
10)Cooling mode: air cooling
11)Display : Digital meters or touch screen , Ampere hour meter ,timer alarm ,etc
12)Signal interface : PLC 0~10V , RS485
13)Modulation mode : PWM control
14)Complete protection functions: over current,over voltage,over heat ,short circuit,phase lack ,input undercurrent protection,over temperature,diode defect.
15)Current limiting value: Io + 10A - 50A (Io is the rated current)
16) Voltage limiting value: 1.01 - 1.03Vo (Vo is the rated voltage)
Product features:
1) Small size, light weight, high efficiency, high control precision.
2) High frequency pulse current output, Suitable for plating small sized no-ferrous metal and alloy work pieces, it has high penetration ability, strong adhesive force, and can effectively enhance the brightness of the plated surface.
3) Output voltage and current can be adjusted, limiting voltage and current can be adjusted, greatly enhance application flexibility of the product for users.
4) With complete protection functions, over current, overheat protection functions. High power factor, less pollution to the electric network, no interference
Scope of application: It is suitable for acidic copper, alkaline copper, multi-layernickel, Chrome ,zinc , gold ,silver , indium,rhodium,anodizing,electrolysis,electrophorese,electrowinning electrolysis degreasing ,and single or double-clad plated printing process.
rectifier product details:
rectifier six advantages:
Every rectifier can add the functions : (timer is our general function so that is for free)
1.PLC (0-10V)
2.RS485
3.Ramp time
4.Adjustable potentiometer
5.Timer
6.Ampere hour meter
Lowest material cost and how to package ?
1.1 years warranty,by replace/repair/free spare parts for bulk order.
Within the first year, if you need any spare parts for replacement, we can provide to you without paid. And we will offer lifelong technical support and service.
2. Considering the expensive shipping cost for you,broken rectifier is no need to send back to China, just let us know the problem through a video or a picture, then,we will send the replacement to you immediately.
About Payment
1. Payment by TT/,Paypal, Western Union,Money Gram will be acceptable.
Please note: Our trade term is EXW,so the price is not includeing the shipping cost).
2. Before you make payment, please make sure for everything for the products you are going to buy. (Packing, color, specification etc).
About shipping
1. Shipping way: Fedex,UPS,DHL, EMS, TNT, China POST, customer can choose the shipping way by themselves.
2. Before shipping we will pack the goods well in case for damage and for the shipping time depends on which shipping way you choose and the courier company and local customs, duties, thank you for your understanding in advance.
SHUNDE SAMYANG Co., Ltd., original called Guangdong Kingsunny Technology Co., Ltd. is a subordinate enterprise of Shunde Communication Equipment Co., Ltd., which was established in 1992 and has manufactured power supplies over 20 years.
On the base of communication switching power supplies, our company successfully developed electroplating switching power supplies. We succeed to the persistent tenet of "Shunde power supply" and "Being determined and dauntless in innovation and striving for improvement ". Under the arrangement of leaders, our company introduced an advanced human resource administrating mode from abroad and improved our personnel system. In this way, our company has recruited a large number of highly qualified professionals and forms an effective operating system. Soft switching - an advanced technology of switching power supply in the 90s of the 20th century are used as the main circuit when developing high-frequency switching power supplies for galvanization.
Furthermore, microcomputer technology is applied to products to achieve remote supervision and to assist the electroplating industry in automated production management. In respect of marketing management, our company lays stress on establishing the sales network. Our market positioning is all electroplating factories oriented and our interest is every customer concerned. With regard to the management of logistics and production planning, our company has achieved scientific administration and we can timely deliver products to customers as scheduled by using our LAN and ERP management system.
Now our company boasts a building area of 13, 500 square meters. All production test facilities are introduced from the U. S. A and Japan and all activities concerned with product quality are carried out in controlled mode as per ISO9001 standards. Top quality, fine manufacturing techniques, perfect after-sales services, competitive price and scientific management are our guarantee for customers.
