| Prod Model: |
HAX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Electric Power |
| Output Power: |
>1000W |
| Nature Of Wave String: |
Sine Wave Inverter |
| Nature Of Source Flow: |
Passive Inverter |
| Circuit Topologies: |
Push-Pull Type |
| Certification: |
Ce, ISO9001, UL |
| Protection: |
Overvoltage |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Application: |
Electric Razor |
| Classification: |
DC to AC |
| Standby UPS: |
Pure Sine Wave |
| Brand: |
Kemapower |
Product Description
High Frequency Home UPS (Inverter with Charger)
Key words 1.High frequency Modified Sine Wave power inverter with charger
2.High efficient and less self-consumption
3.Auto Transfer between AC and DC Mode around 15Ms
4.Auto Restart while AC resume
5.Three stage, selectable Charge current
6.15A/20AMP/12VDC,10Amp/24VDC
7.OFF Charge Function
8.Wide input range: 90-280V narrow input range 165-275, selectable
9.PROTECTION: Over Load / Over Voltage /Low Voltage /Battery Low / Short Circuit
10.Reverse DC polarity Protection

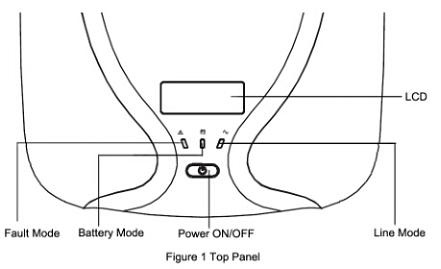

11.LED and LCD display and Alarm function
12.Plastic cabinet, light and small
Technical data | ITEM | HAX-1000 | HAX-2000 |
| Capacity | VA/W | 1000VA/660W | 2000VA/1440W |
| Phase | Single phase, L+N+G |
| Voltage | 110/120VAC or 220/230/240VAC |
|
| 90-145VAC or 170-280VAC (Narrow range) |
|
| Input | Voltage Range | 50-145VAC / 90-280VAC (Wide range) |
|
| Phase | Single |
| Voltage | 120VAC or 230VAC |
| Voltage Regulation | 10%-18% (Bat. Mode) |
| Frequency | 50HZ or 60HZ |
| Frequency Regulation | 0.1 Hz(Batt. Mode) |
| Output | Output waveform | Modified sine wave (Bat. Mode) |
| Voltage | 12VDC | 24VDC |
| Charger Current | 15Amp or 20Amp selectable | 10Amp |
| Floating Voltage | 13.7V+/-0.2V | 27.4V+/-0.4V |
| Battery | Overcharge protection | 16V ± 0.4V | 32V ± 0.4V |
| Transfer time | Typical | around 15ms, 40ms max |
| Efficiency | AC to AC | >95% |
| DC to AC | >80% |
| Display | LED | Line Mode,off-Charge mode,bat mode,charging
status,overload,Fault |
|
| LCD | Input W and VAC,output W and VAC,battery
rate,working mode |
|
| Low battery | Sounding every 2 seconds |
| Overload | Sounding every 0.5 second |
| Audible Alarm | Fault | Continuously sounding |
Over Discharge, Overcharge, Overload protection,
Short Circuit, Battery Shot, Over Voltage and |
| Protection |
| Under Voltage |
| Product size | mm | 265*245*82mm |
| Product weight | kg | 2.2 | 2.5 |
| Carton size | mm | 385*377*556mm/ 6PCS |
| Carton weight | (Net / Gross)kg | 11/13KG,6PCS | 13/15KG,6PCS |
Product Show:
Trade Show:
Certification:
Foshan Kemapower Electronics Co., Ltd. is a leading manufacturer and trader of electronics and electrical equipment with over 10 years experience in this field, and with wide worldwide export in many other countries and regions as well as over 30 sales branches and agents in China. We specialize in manufacturing and supplying UPS, Power inverter, Battery charger, Battery, Solar street lamp kit, solar power system, AC voltage regulator, and other electrical power products. We are a company with ISO certificate and all of our products are designed and produced in accordance with ISO rules. The most of products have passed the CE certificate of EU, UL certificate of U. S. A.
Our products not only occupy a large share in Chinese market but also export to many other countries and regions including USA, Arabia, Middle East, Europe and Southeast Asia with a wide recognition.
Our motto:
- Take Quality First. We believe that success is in the details.
- Good Faith Utmost. We believe that quality products start with quality people.
- Specialized and professional with well skilled focus
Quality requirements of our products and services will be specified into every step of the whole process. Honesty is the most essential quality and character that every our employee shall have.
Market and sales policies
We, Kemapower Electronics Co., Ltd believe that our large success in market is based on three main policies.
- Long-term cooperation
It is our aim in establishing our relationship with every customer and helping him to win a constant development.
- Price positioning strategy
Small profits but quick turnover is our business experience. We always supply our high quality products with the best prices based on our quality criterion.
- After-sale service and support
As we all know, in the global world, where there are no limits anymore, the competition in every field is getting more thorough. High quality products based on strategy of total quality management is the key point. We believe that high quality is a must. Meanwhile, we believe that we need to differentiate ourselves in order to create customer satisfaction.
Obviously Customer satisfaction is the key word for the success. We believe that both our customers and we will achieve great successes in global market as well as in Chinese market in a win-win situation based on our abundant resource and Specialized and professional experience in the Power Products field.
