| Prod Model: |
EPS2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
450*210*330 |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Classification: |
UPS |
| Brand: |
Kemapower |
Product Description

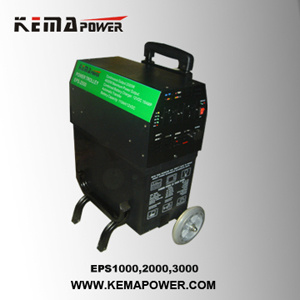

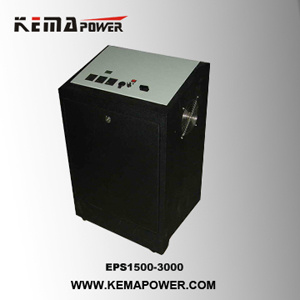

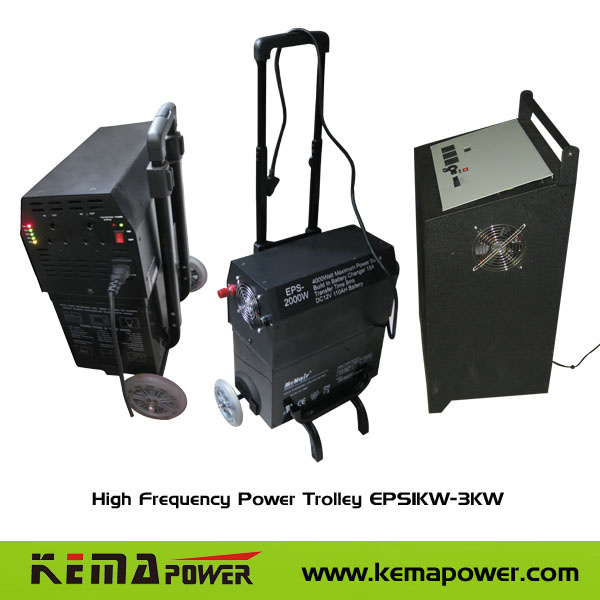

High Frequency Home UPS Power Trolley (EPS2000) * I/P: 220VAC or 110VAC
* O/P:220VAC or 110VAC ± 10V
* Capacity:1KW/1.5KW/2KW/3KW
* Wave Form:Modified sine wave
* Transfer Time:10 ms(typical)
* DC Voltage: 1KW/1.5KW/2KW12/24VDC,3KW:24VDC
* Bat.: inside 1PCS110AH or 2PCS110AH + External
* with wheels , with charger
Key features1. High frequency design
2. Modified sine wave
3. Inverter with charger and combine battery
4. With wheel trolley
5. With External battery connector to extend backup time
6. Automatic transfer time around 10ms (HIC Mode)
7. Easy to move, high efficiency
8. No complicated installation
9. Full Protection for Over Temperature, Over Load, Low battery Voltage, over battery
10. LED display and alarm
11. Fan cooling
1. I/P: 220VAC or 110VAC
2. O/P: 220VAC or 110VAC ± 10V
3. Capacity: 1KW/1.5KW/2KW/3KW
4. Wave Form: Modified sine wave
5. Transfer Time: 10 ms(typical)
6. DC Voltage: 1KW/1.5KW/2KW12/24VDC, 3KW: 24VDC
7. Bat.: Inside 1PCS110AH or 2PCS110AH + External
8. With wheels, with charger.
Product Show:
Technical Specifications | Mode | EPS1000 | EPS1500 | EPS2000 | EPS3000 |
| Continuous power (W) | 1000 | 1500 | 2000 | 3000 |
| Surge capability (W) | 2000 | 3000 | 4000 | 6000 |
| DC Input (VDC) | 12V | 12V | 12V | 12V/24VDC |
| DC input Range | 10.5V to 15.5V±0.3 for 12VDC. The others multiple |
| Charge current | 15A | 5A | 15A | 20A |
| Transfer time | 10 Ms for HIC automatic transfer type. HICM mode are manual transfer |
| AC output | 110 / 120/220V/230V ±10 V |
| Output frequency | 50/60±5 HZ |
| Output waveform | Modified Sine Wave |
| Efficiency | >85% |
| State current | 0.2A | 0.25A | 0.5A | 0.8A |
| Combine battery Capacity | 1*100AH/12VDC | 2*100AH/12VDC |
| External battery back | 12VDC | 12VDC | 12VDC | 12V/24VDC |
| Battery low alarm | 10.2-10.8V for 12VDC. The other are multiple |
| Over discharge protection | (10 ±0.5)V for 12VDC. The others are multiple, Shut off |
| Resume voltage | 11.7V--12.8V for 12VDC,The others are multiple,Auto restart |
| Over voltage protection | 15V-16.5V for 12VDC,The others are multiple,Shut off. |
| Overload protection | Shut off while over 120% rated capacity |
| With cooling fan | yes |
| Display | LED | LED | LED | LCD |
| Running Temperature | _ 20 to 40 degree |
| High temperature protection | YES,60ºC-70ºC |
| Short circuit protection | YES |
| Reverse polarity protection | YES |
| Product Package(mm)(L*W*H) | 450*210*330 | 450*210*330 | 450*210*330 | 450*210*330 |
| Gross weight (kg) | 39 | 39 | 42 | 42 |
| 20FT | 180PCS | 180PCS | 180PCS | 50PCS |
| Backup time for different load capacity |
| Load capacity( sample load) | backup time(H) by 100AH/12VDC | backup time (H) by 2*100AH/12VDC |
|
|
| 200W (1 PC) | 3.75 | 7.50 |
|
|
| 250W (1 PC +1 table fan) | 3.00 | 6.00 |
|
|
| 360W (1PC + 1 desk fan +1 25 inch TV) | 2.08 | 4.16 |
|
|
| 450W ( 1PC + 1 desk fan +1pcs 25 inch TV+ 5pcs 15W lamps) | 1.67 | 3.34 |
|
|
| 1000W load | 0.75 | 1.50 |
|
|
| 1500W loads | 0.50 | 1.00 |
|
|
| 2000W loads | 0.38 | 0.76 |
|
|
| ATTENTION: the external battery back need same capacity battery and same DC voltage Battery back of 12VDC or 24VDC . |
