| Prod Model: |
JD175U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| I/P: |
75-200W:12VDC |
| O/P: |
220V, 110V ±10 V |
| Capacity: |
75-200W |
| Wave Form: |
Modified Sine Wave |
Product Description

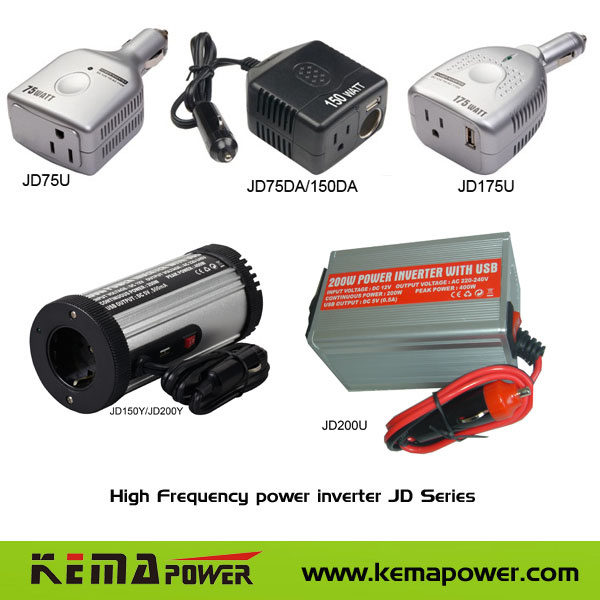

High Frequency MSW power inverter (JD175U)
* High frequency DC-AC power inverter
* I/P:75-200W:12VDC
* O/P:220V,110V ±10 V
* Capacity:75-200W
* Wave Form:modified sine wave
* Bat.:12VDC or 24VDC External battery
* Stand by Function
* Use on Car or small Off Grid solar power system
Key features
1 High frequency DC-AC power inverter
2 Single phase modefied sine wave ouput
3 Full range protection for the inverter and the battery.
4 With USB port
5 Smaller and light
6 Modified sine wave
7 LED display and alarm
8 Two times surge power.
| Mode | JD 75U | JD75DA | JD150Y | JD150DA | JD175U | JD200U | JD200Y |
| Continuous power (W) | 75 | 150 | 150 | 150 | 175 | 200 | 200 |
| Surge capability (W) | 150 | 300 | 300 | 300 | 350 | 400 | 400 |
| DC input (VDC) | 12V |
| DC input range | 10.5V to 15.5V±0.3 |
| AC output | 220V,110V ±10 V |
| Output frequency | 50/60±5 HZ |
| Output waveform | Modified sine wave |
| Efficiency | >85% |
| Battery low alarm | 10.2-10.8V |
| Over discharge protection | 10 ±0.5V, shut off |
| Resume voltage | 11.7V--12.8V ,auto restart |
| Over voltage protection | 15V-16.5V ,shut off. |
| Overload protection | Shut off while over 120% rated capacity |
| With cooling fan | Yes |
| USB | Yes |
| DC conection | Cigarette lighter |
| Connection convertor | No |
| Product package | Blister |
| Running temperature | 20 to 40 degree |
| High temperature protection | Yes |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Product size(mm) | 115*57.5*37 | 145*75*50 | Φ70*145 | 145*75*50 | 141*74*50 | 100*67*43 | Φ70*145 |
| Carton size (mm) | 475*290*570 | 515*355*370 | 440*410*360 | 515*355*370 | 540*390*375 | 475*290*570 | 440*410*360 |
| Carton weight (kg) | 12 | 13 | 14 | 13 | 11 | 16 | 14 |
| PCS /CTN | 50 | 40 | 30 | 40 | 40 | 40 | 30 |
