| Prod Model: |

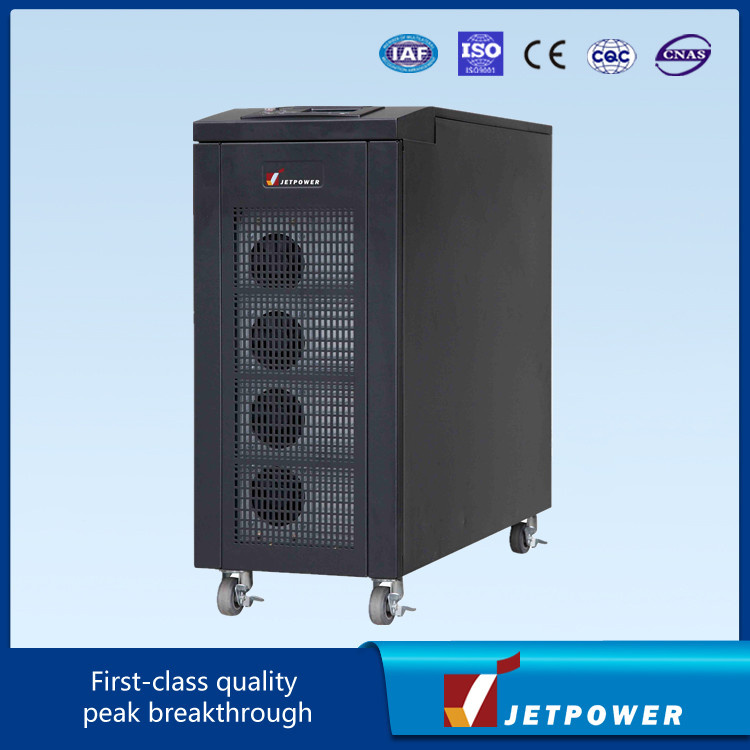

TIGER |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Jetpower |
| Phase: |
3 Phases + Neutral + Ground |
Product Description
Phoenix 200/20 Series Modular Online UPS
10-400KVA (380V/400V/415V)
6-240KVA (200V/208V/220V)
Description
RM200 series is modular online UPS for sensitive equipments. The single cabinet power rating covers from 10KVA to 200KVA which delivers the best of combination of reliability, hot-swappable and flexibility.
With the latest IGBT three-level technology and DSP control, RM200 achieves a high input power factor, low THDi and high system efficiency, which makes it a great choice for data centers, computer system and critical equipments.
Features
(1) Modular design with N+X redundancy and online hot swapping, easy to expand the capacity
(2) Full DSP control of high stability, reliability and safety
(3) Integrated IGBT module with improved performance and reduced size
(4) Excellent input performances for complete compatibility with input PF of 99% and wide range of voltage
(5) Self-Aging mode for full load test with less than 10% of the total power capacity needed
(6) Smart charging management system, intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
(7) Independent charger for batteries, intelligent battery management system
(8) Battery cold start, UPS can be powered on from the battery without utility.
(9) Totally front access, top and bottom cable connection
(10) Friendly human machine interface with touch screen
|
MODEL |
200/20 |
120/20 |
060/20 |
120/12 |
L072/12 |
L036/12 |
|
150/15 |
090/15 |
045/15 |
100/10 |
L060/10 |
L030/10 |
|
100/10 |
060/10 |
030/10 |
060/06 |
L036/06 |
L018/06 |
|
Capacity |
10-400KVA |
6-240KVA |
|
Power Module Type |
PM20/PM15/PM10 |
PML12/PML10/PML06 |
|
INPUT |
|
Phase |
3 Phases + Neutral + Ground |
|
Voltage |
380V/400V/415V(line to line) |
200V/208V/220V(line to line) |
|
Frequency |
50/60Hz |
|
Power Factor |
>0.99 |
|
THDi |
THDi<3% @ 100% linear load |
|
Voltage Range |
-20% ~ 25% |
-20% ~ 25% |
|
Frequency Range |
40Hz ~ 70Hz |
|
OUTPUT |
|
Voltage |
380V/400V/415V |
200V/208V/220V |
|
Voltage Regulation |
±1%(Balance load); ±1.5%(Unbalance load) |
|
THDu |
THD<1.5%(linear load ),THD<6%(None linear load) |
|
Power Factor |
0.8 |
|
Crest Ratio |
3:1 |
|
Overload Capability |
110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms |
|
BATTERY |
|
Voltage |
±240VDC |
±120VDC |
|
Charge Power |
20%*System Power |
|
Charge Power Precision |
±1% |
|
SYSTEM |
|
System Efficiency |
Normal mode:95%; ECO mode:98%;
Battery mode:95% |
Normal mode:92%; ECO mode:98%;
Battery mode:90% |
|
Display |
LCD+LED, Touch Screen +Keyboard |
|
IP Class |
IP20 |
|
Interface(Communication Port) |
RS232,RS485,Dry contacts, SNMP card, EPO |
|
Operation/Storage Temperature |
0 ~ 40 ºC /-40 ~ 70 ºC |
|
Relative Humidity |
0 ~ 95%(non-condensing) |
|
Noise |
55dB(1 meter away) |
|
PHYSICAL |
|
Weight |
Cabinet |
10-Slot cabinet:182Kg; 6- Slot cabinet:151Kg; 3-Slot cabinet:120Kg; |
|
Power Module |
PM30X:34Kg; PM25X: 32Kg |
PML20X:34Kg; PML15X: 32Kg |
|
Dimension (W*D*H) |
Cabinet |
PM20:22Kg; PM15:21Kg; PM10:20Kg |
PML12:22Kg; PML10:21Kg; PML06:20Kg |
|
10-Slot cabinet: 600*900*2000; 6-Slot cabinet: 600*900*1600; 3-Slot cabinet:600*900*1100 |
|
Power Module |
PM20/PM15/PM10:440*590*134 |
PML20X/PML15X:460*790*134(mm) |
