| Prod Model: |
Energy Saving Star Series 10-80Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Reliability: |
High |
| Security: |
High |
| Communciation Interface: |
RS232,RJ45 |
| OEM Service: |
Yes |
| Thdi: |
Less 5% |
| Voltage Precision: |
±0.5% |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description
High Frequency Online 10kw 20kw 30kw 3 Phase UPS
Model: High Frequency Online UPS Energy Star Series 10K-80Kva (3ph in/3ph out)
Key Features:
1:True online double conversion offers the safe and effective power protection for various loads, with strong output load capacity
2:High input power factor, green and energy-saving
3:No add-on CNTL unit required for parallel connection
4: Low initial investment and flexible for future expansion
5:Highest reliability and maximum performance for power sharing and redundancy
6:High accuracy and reliability due to the double DSP control system
7:Designed for industry to make sure the UPS works well under the bad circumstance
8:Advanced network monitor function and support various of operation system
9:Battery replacement without disrupting the UPS running
10:Communication port (RS232, RS485, dry contact and so on) connecting with computer, SNMP card optional
UPS Application
Internet Servor ,Internet Data Center, Medium-scale network system ,computing center, Communications Equipment,Telecommunications Systems,Electric powered Bicycle and Wheelchairs,Television & Video Recorders,Emergency Lighting Systems,etc.
Technical Specification
Model | ES3310 | ES3320 | ES3330 | ES3340 | ES3360 | ES3380 |
| Capacity/Rating Power | 10KVA/ 9KW | 20KVA/ 18KW | 30KVA/ 27KW | 40KVA/ 36KW | 60KVA/ 54KW | 80KVA/ 72KW |
| AC Input | Rated voltage | 190/208/220Vac Or 380/400/415Vac (Line-Line) | 380/400/415Vac (Line-Line) |
| Input connection | 3 phase +N+PE |
| Power factor | Above 0.99 |
| THDI | Less 5% |
| Voltage range | 150-270Vac or 280-480Vac(Line voltage) |
| Frequency | 40-70Hz |
| Bypass | 150-270Vac or 280-480Vac(Line-Line)+/- 15% |
| Output | voltage precision | ±0.5% |
| Dynamical | Less 5% ( 0~100% load step) |
| voltage transient |
| THDU | THD less 3% (linear load), 5%(non-linear load) |
| Power factor | 0.9 (lag) |
| Frequency tracking range | 50/60Hz±3Hz |
| Frequency precision | ±0.05%(Battery mode) , ±3hz(Line mode) |
| OUTPUT | phase displacement | 120±0.5°(Balance or imbalance load ) |
| Frequency tracking rate | Less 1Hz/s |
| Overload capability | 105% long time operation |
| 125%,transfer to bypass after 10 minutes |
| Above 150%, transfer to bypass after 1s |
| Bypass | Above 180%, long time operation |
| overload | Above 180%, last for 1s |
| Transfer time | 0ms |
| System |
| System efficiency | Above 92%;98%(ECO) mode |
| Display | Touch screen LCD+LED |
| EMC | IEC62040-2 |
| IEC61000-4-2 (ESD) |
| IEC61000-4-3 (RS) |
| IEC6100-4-4 (EFT) |
| IEC6100-4-5 (Surge) |
| Noise (1m) | Less 60dB |
| Insulating resistance | Above 2M (500VDC) |
| Insulating intensity | (input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min |
| Surge protection | Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA |
| IP class | IP30 |
| Battery configuration |
| Installation(DC) | 192/216/240Vdc or 384/432/480Vdc |
| Connection | Bottom cable connection in front |
| Charger | 20% Power capacity(Adjustable) |
| Dimension (W×D×H)mm | Long-run model | 500×717×798 | 720×900×1450 |
| Inbuilt batt. | 500×717×1150 | 500×717×1550 |
| Weight (Kg) | Long-run model | 40 | 65 | 95 | 100 | 240 | 260 |
| Inbuilt batt. | 125 | 175 | 255 | 295 |
| 32/36/40pcs*7AH/9AH or 72pcs*7AH/9AH |

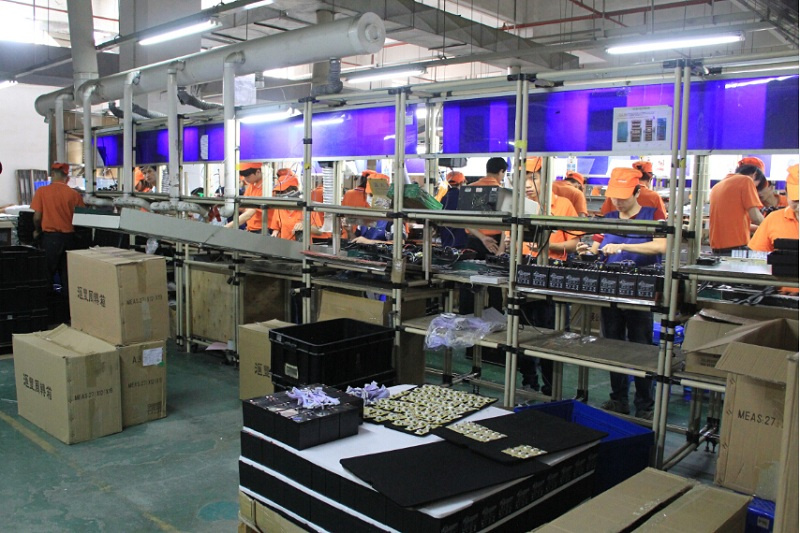

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
