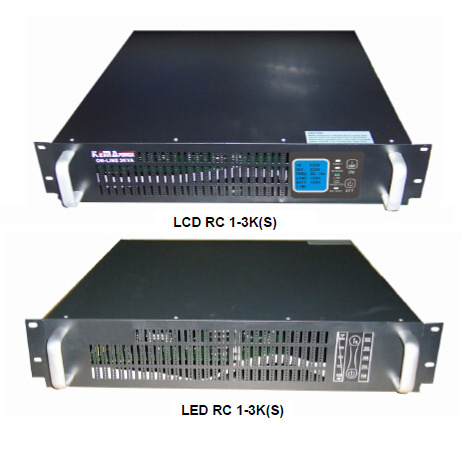

High Frequency Online Rack Mounted UPS (RC1-3K(S))

Prod Model:	RC1-3K(S)
Size:	See The Detail in The Web
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Classification:	UPS
Brand:	Greenmaster

Product Description

Cr Series High Frequency Online Rack Mounted UPS (RC1-3K(S))

* I/P: 220VAC/ 110VAC; O/P:220/110VAC+-2%

* Capacity:1KVA / 2KVA / 3KVA

* Output PF: 0.9 or 0.8

* Wave Form:Pure sine wave

* Transfer Time:0 ms

* DC Voltage: 1K,36VDC; 2KVA & 3KVA, 96VDC

* Bat.:1KVA, 3PCS7.2AH; 2KVA & 3KVA, 8PCS7.2AH

  or The Others,External Batttery


Key features

1.Rack Mounting High frequency  double conversion online UPS

2. Single Phase,0.9/0.8PF

3.Fully digitized microprocessor control

4.Wide input voltage range

5.Advanced PFC technology

6.Self-testing when UPS startup

7.Advanced battery management

8.Automatic battery charging in UPS off mode

9.Lightning and surge protection

10.Short circuit and overload protection

11.Smart RS232 communication with monitoring software

12.Battery voltage and load capacity display

13.LCD Disply ,SNMP card , USB Communication is option


Technical Specifications


Item	Model	RC1K	RC1KS	RC2K	RC2KS	RC3K	RC3KS
Capacity	VA / Watts	1kVA / 0.9KW	1KVA / 0.8KW	1KVA / 1.8KW	2KVA / 1.6KW	3KVA / 2.7KW	3KVA / 2.4KW
Input	Normal voltage	220VAC/ 110VAC
	220V Voltage range	a) (110±5 ~ 300±5) VAC when Load at 0-60%
		b) (120±5 ~ 300±5) VAC when Load at 60-70%
		C) (140±5 ~ 300±5) VAC when Load at 70-80%,
		D) (160±5 ~ 300±5) VAC when Load at 80-100%
	110V Voltage range	80-150VAC
	Power Factor	0.97
	Frequency range	Normal 50HZ/60HZ±4, 40~60Hz(set by winpower)
Output	Voltage range	220/110VAC+-2%
	Frequency range	50Hz/60Hz+-0.2  (Battery mode)
	Wave form	Pure Sine Wave
	Transfer time	0 ms (AC  mode and battery mode)
		Transfer time: 4ms (typical 2.5ms),AC  mode and bypass mode
	Distortion (Full Load)  linear load	≤3%	≤3%	≤4%	≤4%	≤4%	≤4%
	Degree of distortion  (Full Load) nonlinear  load	≤6%	≤6%	≤7%	≤7%	≤7%	≤7%
	Overload capacity	>108% 30s turn to bypass mode; >150%, 300ms turn to bypass
	Load peak ratio	3:1(max)
Battery Pack	Model	UPS Internal	N/A	BP807	N/A	BP807	N/A
	Type	Maintenance free valve regulated lead acid (VRLA) battery
	Battery voltage	36VDC	36VDC	96VDC	96VDC	96VDC	96VDC
	Battery number	3*12V*7.2AH	External	8*12V*7.2AH	External	8*12V*7.2AH	External
	Backup time (Full  load)	>5Mins	depended on battery	>9Mins	depended on battery	>5Mins	depended on battery
	Backup time (Half  load)	14Mins	depended on battery	21Mins	depended on battery	15Mins	depended on battery
	Recharge time	90%capacity after 5 hrs charging	depended on battery	90%capacity after 5 hrs charging	depended on battery	90%capacity after 5 hrs charging	depended on battery
Bypass		Automatic while overload or ups fail.
	Before ON	Default ON. Workable set by Winpower
	Voltage Range	Default 80-260V, workable set by WinPower to 80-286V
Display	LED	Load level / Battery level / Battery mode / Line mode / Inverter , Bypass ,Over load , Fault
LCD	Option	BAT % VDC, Input VAC HZ, Output VAC HZ , Load %
Audible Alarm	Battery Mode	Beeping every 4 seconds (re-settable) and every second when battery low
	Overload	Beeping twice every second
	Fault	Beeping Continuously
Communications		RS-232 Interface,With monitoring software,USB Option,SNMP NetAgent Option
Surge protection		RJ-45  I/O port available for network or Fax/Modem
Environment	Working temperature	- 20ºC~40ºC
	Humidity	0-95% non-condensing
UPS Product size	WxDxH (mm)	483 x 450 x 88 (2U)
UPS CTN size	WxDxH (mm)	605*610*270
UPS CTN weight	KG/PCS	20/1PCS	15/1PCS	18/1PCS	18.2/1PCS	19/1PCS	19.2/1PCS
BP Product size	WxDxH (mm)	483 x 450 x 88 (2U)
BP CTN size	WxDxH (mm)	605*610*270
BP CTN weight	KG/PCS	included in ups	N/A	305/1PCS	N/A	35/1PCS	N/A
REMARK		RC*K --- Standard Type, RC*KS---- Long Time Type.

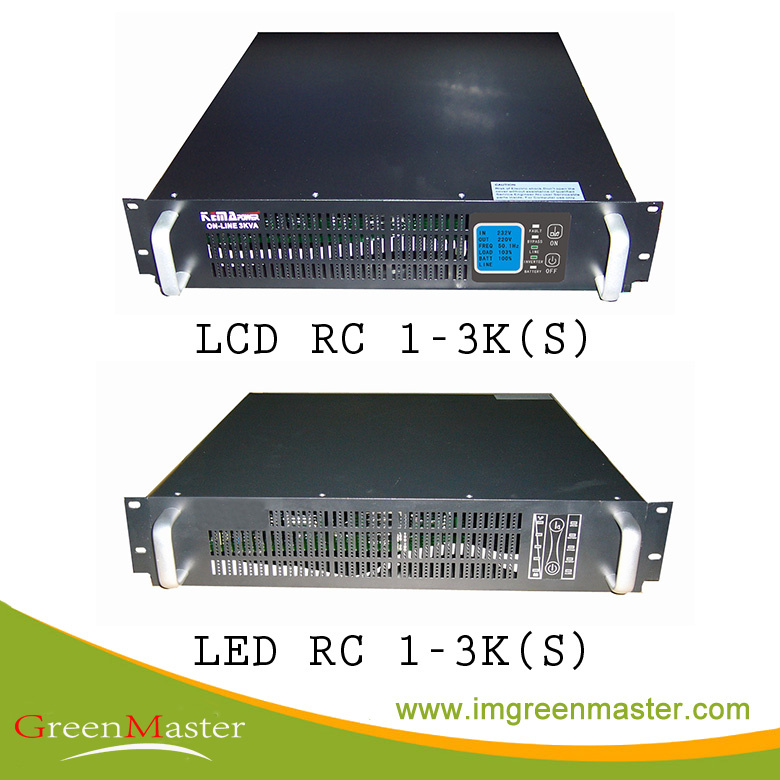

Product Show:
