High Frequency Online Rack Mounted UPS with Battery Backup

Name: High Frequency Online Rack Mounted UPS with Battery Backup
Brand: all-electronics-online.com
SKU: 777970915
Availability: InStock
Rating: 4.5 (55 reviews)

Price:	US $ 1-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	LED or LCD Display
Transfer Time:	0ms
Power Factor:	0.8 Lag
Waveform:	Sine Wave
Phase:	Single Phase
Type:	On-line
Protection:	Overcurrent
Brand:	Upsen

Product Description

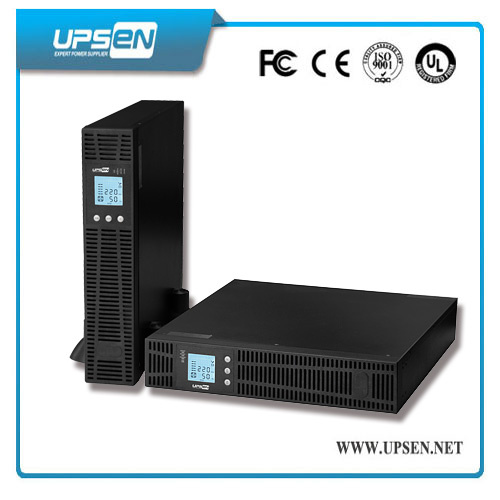

High Frequency Online Rack Mounted UPS with Battery Backup
High Frequency Online UPS Rack Tower Star Series RT 1K-10KVA(1Ph in/1Ph out)

Key Features:
1:Rack Mount - Tower Convertible
2:LCD Disply ,SNMP card , USB Communication is option
3:Automatic startup function, Long-term type power design
4:Full automatic and silent operation
5:Microprocessor control optimizes reliability
6:Start Auto restart while AC is recovering (optional)
7:Compact size for convenient use and storage
8:Diverse options of accessories, intelligent management
9:Comprehensive display allows easy monitoring and access of UPS status
10:True on-line double conversion technology with advanced microprocessor control
11:It has voltage breakthrough protection and strong anti-interference function.

Applications
Alarm Systems,Marine Equipment,Cable Television,Medical Equipment,Communications Equipment,Telecommunications Systems, telecom, bank, hospital, bureau, traffic, public security, ATM etc.

Technical Specification

MODEL(RT Series)		RT1K	RT1KL	RT2K	RT2KL	RT3K	RT3KL	RT6KL	RT10KL
Input	Rated Capacity	1KVA/800W		2KVA/1600W		3KVA/2400W		6KVA/4800W	10KVA/8000W
	Voltage	90 ± 5 ~290 ± 5Vac						176 ~ 276Vac
	Current	6A(max)		12A(max)		16A(max)		31A(max)	60A(max)
	Frequency	40 ~ 60 Hz
	Power factor	Conformity EN60555-2(≥0.95)							≥0.95(MAX)
Output	Voltage	220Vac ( 1 ± 2%)						220Vac ( 1 ± 1%)
	Current	4.55A		9.1A		13.6A		27.3A	54A
	Frequency	(50 ± 2)Hz						(50 ± 1)Hz
	Power Factor	0.8 lag
	Waveform	Sine Wave
	Waveform	Linear ≤ 7% when RCD 100% loading (Non-line)
	Distortion	Linear ≤ 3% when RCD 100% loading (line)
Overload protection		105%< <125% → 50s						100%-125%, 1 minutes to
		125%< <150% → 25s						transfer to bypass; >150%,
		>150% → 300s						100ms to transfer to bypass
Transfer Time		Oms
Type of Battery		Sealed lead acid maintenance-free
External Battery Voltage		3x7 Ah	36Vdc	6x7 Ah	72Vdc	8x7 Ah	96Vdc	192Vdc/240Vdc
Working	Operating	0-40ºC
Environment	Temperatures(ºC)
	Relative	0-90(%)
	Temperature(ºC)
	Altitude	<1500m
Communication		9pin D trpe comector (RS232)
Size (WXDXH) mm		482x450x88		Standard Type (3U): 482x680x132.5				482x680x132.5
				Long Backup Type (2U): 482x450x88
Weight (kg)		14.5	8	22	9.8	26	9.8	20	25

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
