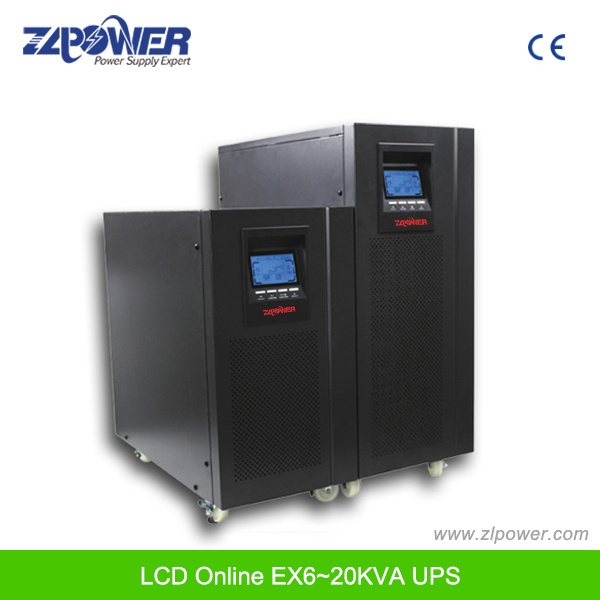

High Frequency Online Uninterruptible Power Supply UPS 6kVA-20kVA

Name: High Frequency Online Uninterruptible Power Supply UPS 6kVA-20kVA
Brand: all-electronics-online.com
SKU: 674485035
Availability: InStock
Rating: 5 (96 reviews)

Price:	US $ 360-580/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EX6K-EX3120KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Technology:	Mcu Control, IGBT
Parallel:	3units
Phase:	Single Phase
Type:	High Frequency Online UPS
Protection:	Overcharge, Over Voltage, Over Current, Anti Surge
Brand:	Zlpower

Product Description

UPS(uninterruptible power supply), high frequency online UPS 6KVA-20KVA

Uninterruptible Power Supply (UPS) - Pure Sine Wave Online UPS 6K-20KVA
Model: High frequency Online UPS 6K-20KVA

UPS Advantage:
1: UPS with IGBT + DSP Technology
2: Built-in UPS Snmp Card Slot
3: Self test while UPS start
4: UPS 6K-20KVA with N + X parallel redundancy

UPS Key Features:
1: UPS with True on-line double conversion technology and advanced microprocessor control
2: Wide input voltage range
3: Zero transfer time - Uninterruptible Power Supply, Nobreak Power
4: Protection against all type of power problems, Like: Power sags, high voltage spikes, switching transients, power surges, noise, frequency variation, brownout. Overload, Short Circuit, Overcurrent, Unbalanced Loads, Overvoltage
5: Self test while start of the UPS
6: Site wiring fault warning
7: On-battery power-on function
8: Smart RS232 and USB communication interface
9: Intelligent SNMP Card slot available
10: Built-in UPS Battery (Sealed lead acid, maintenance free battery)
11: Pure sine wave output UPS Type
12: Single Phase In/Out for UPS 6-10KVA, Three Phase In and Single Phase out for UPS10-20KVA
13: Large LCD Display, Large blue back light LCD for detailed real-time UPS status display
14: Microprocessor control guarantees high reliability
15: Comprehensive self-protection design
16: Audible alarm mute
17: Cold start function
18: Auto self-testing system while turning on UPS
19: Maintenance bypass switch for UPS 6k to 20K
20: N + X parallel redundancy and capacity expansion for 6k to 20K
21: UPS with MCU (Freescale) +IGBT+DSP (TI) technology and double conversion structure

Model		EX6K	EX6KL	EX10K	EX10KL	3EX10KL	3EX15KL	3EX20KL
Capacity		6KVA/4200W		10KVA/7000W			15KVA/10500W	20KVA/14000W
Input	Nominal Voltage	220V				380V
	Voltage Range	176~276VAC				304~478VAC
	Frequency	46~54Hz/56~64Hz (adjustable via LCD panel)
Output	Voltage	220/230/240 (1±1%)VAC (Adjustable via LCD panel)
	Frequency	50/60Hz (adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode:50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%)
	Current Crest Ratio	3:1
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥7′	Depends on the capacity of the external batteries bank	≥5′	Depends on the capacity of the external batteries bank
	Half Load	≥20′		≥13′
Battery Nominal Voltage		192VDC
Transfer Time		0ms
Overload Capacity		105%~130% 10min, over 150%1min
Communication		RS-232+Intelligent Slot
Operating Environment	Temperature	0C~40C
	Humidity	15%~90%
Dimensions (WDH)mm		260570717
Net Weight (Kg)		90	35	93	38	39	55	55

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
